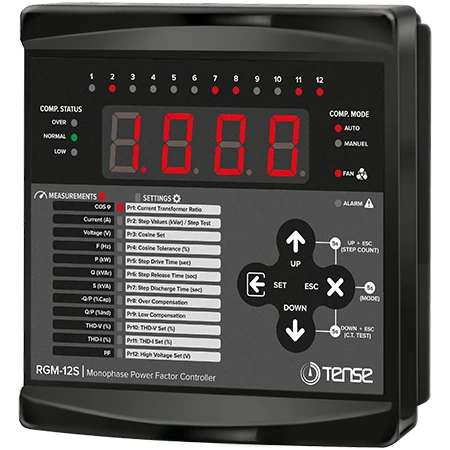

12-level reactive power regulator with LED screen

12 steps Single-phase connection Power factor regulator for power factor control in networks with symmetrical loads (TENSE)

The RGM-12S reactive power control relay is designed to reduce inductive powers that do not use loads but are drawn from the network. When inductive reactive power is drawn from the network, it intervenes by activating capacitors of the appropriate value. In this way, it tries to bring the Cos phi value to the desired level.

• 7 Different power factor compensation programs

• Manual power factor compensation programs

• They can only compensate inductive systems

• Automatic step measurement

• The actuation, release, and step discharge times are adjustable

• Adjustable harmonic alarm values for voltage and current

• Ability to set overcompensation and undercompensation alarm values

• Alarm output for voltage, voltage/current harmonic, over and under compensation

• It is possible to monitor voltage, current, and frequency values

• Ability to monitor active power, reactive power, and apparent power values

• It is possible to monitor up to the fifteenth harmonic THD-I

• It is possible to monitor up to the 15th harmonic THD-V

• It is possible to monitor the cosine value

• It is possible to monitor the power factor value

• Automatic fan output

• Aging at equal steps (in some compensation programs)
