Vendor: TENSE

3-phase panel digital meters Current multimeter Voltage and frequency indicator

Barcode: EM-100D
€61,52 €50,43 excl. VAT
€61,52 €50,43 excl. VAT
Low stock: 7 left
All items are in stock and shipped from the Czech Republic. Delivery takes 3–8 days.
Brand: 100A
  • Description
  • Instructions
  • Payment methods
  • Warranty

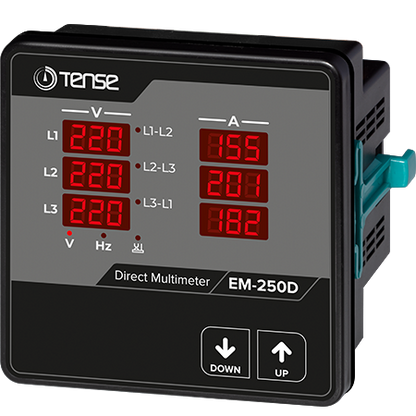

Multimetro da pannello trifase TENSE - VAHz

Descrizione del prodotto

Il multimetro digitale da pannello trifase TENSE è uno strumento multifunzionale per il monitoraggio dei parametri elettrici nei sistemi trifase. Lo strumento consente di misurare la tensione, la corrente e la frequenza, di verificare il corretto collegamento delle fasi ed è adatto per apparecchiature industriali, macchine e sistemi di distribuzione di corrente alternata.

Principali vantaggi

  • Misura multifunzionale: I, U (L-L, L-N), Hz

  • Misura indiretta della corrente attraverso i trasformatori di corrente collegati

  • Monitoraggio delle fasi e controllo del cablaggio

  • Trasformatore di misura incluso nei modelli EM-100D e EM-250D

  • Montaggio su guida DIN standard

Campi di misura

ParametriModelli EM-06 / EM-72EM-100DEM-250D
Corrente5/5 ... 9995/5 A (indiretta)1 - 100 A2 - 250 A
Tensione L-N1 - 300 V CA1 - 300 V CA1 - 300 V AC
Tensione L-L1 - 500 V AC1 - 500 V AC1 - 500 V AC
Frequenza40 - 60 Hz40 - 60 Hz40 - 60 Hz

Raccomandazioni

  • Per i modelli EM-06 e EM-72, consigliamo i seguenti trasformatori di corrente:
    60/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1500/5

  • I trasformatori possono essere acquistati direttamente nel nostro e-shop.

Scaricare su

Manuale d'uso
