Three-phase network parameter analyzer of current, voltage, frequency, power RS485
- Regular price
- €221,40
- Regular price
-
- Sale price
- €221,40
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty

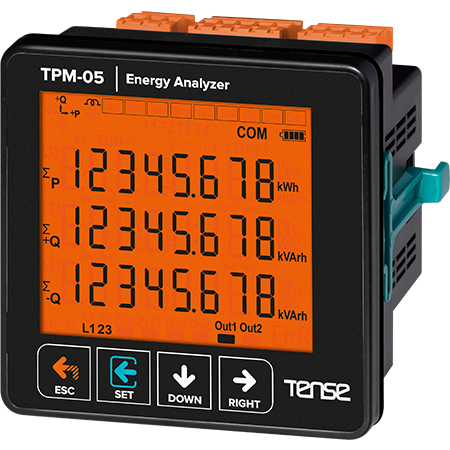

Three-phase network parameter analyzer - three-phase multifunction digital panel meter, indicator of current, voltage, frequency, and total power, with two relay outputs and digital input, RS485 ModBus RTU - TPM-05 panel meter manufacturer TENSE (Turkey).
Power analyzers are designed to measure and monitor electrical values. Thanks to the communication function, energy measurements can be monitored and reported independently. Energy analyzers allow performing analyses such as power quality, efficiency, and unit cost calculation.
Main advantages:
- RS485 Modbus RTU (1200-115200bps)

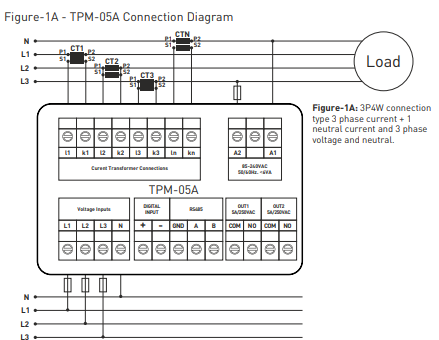

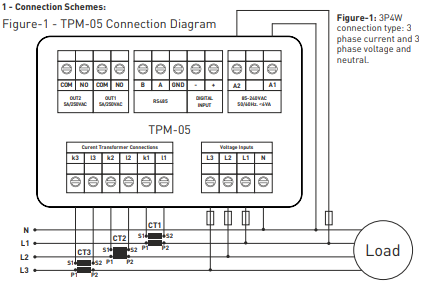

- Three-phase voltage transformer and three-phase current transformer.
-
Display of voltage and current harmonics up to the 55th harmonic.
-
Shows active power per phase (P)
-
Shows reactive power per phase (Q, inductive and capacitive)
-
Shows apparent power per phase (S)
-
Shows Cosφ and power factor values of each phase
-
Shows phase-neutral and phase-phase voltage (V) and current (I) values of each phase, measuring frequency
-
Display of total active energy import and export values (ΣkWh)
-
Display of total inductive and capacitive reactive energy values (ΣkVArh)
-
Display of minimum and maximum values, maximum demand
-
2 relay outputs, 1 digital input
-
Event registers (high/low voltage/current, voltage/current imbalance, THD-I, power outage)
-
Actual date and time (RTC)
-
The menu is password protected.
This network analyzer is usually used with current measurement transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. If you intend to connect the analyzer to ModBus, we will send you a register table with the ModBus addresses upon request.
