RS485 three-phase panel multimeter for voltage-frequency-power-energy-current
- Regular price
- €98,00 €80,33 excl. VAT
- Regular price
-
- Sale price
- €98,00 €80,33 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty

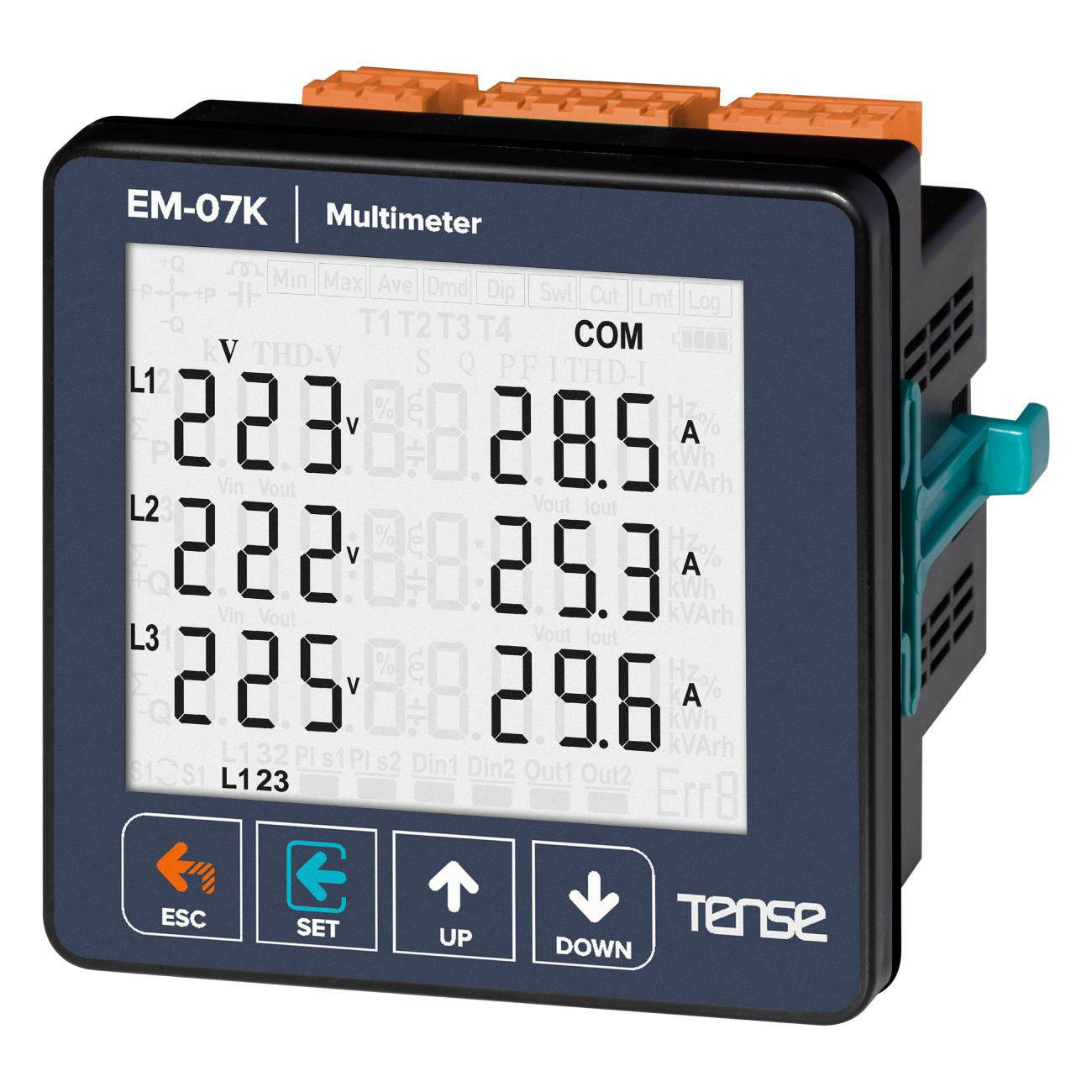

Three-phase multimeter - Three-phase multifunction digital panel meter, indicator of current, voltage, frequency and total power, kW*h energy and ModBus RTU Manufacturer TENSE (Turkey), panel meters.
Main advantages:
- RS485 Modbus RTU (1200-38400bps)
- Custom glass LCD design 71.5 x 61.5
- Three-phase voltage transformer and three-phase current transformer.
- Shows V1, V2, V3, V12, V23, V31, I1, I2, I3, S1, S2, S3, F1, F2, F3
- Shows minimum, maximum and average values of V1,V2,V3,V12,V23,V31,F1,F2,F3
- Displays minimum, maximum, average values and setpoints I1,I2,I3,S1,S2,S3 High/low voltage, current, frequency (adjustable) Phase-neutral or phase-phase protection (adjustable)
- Energy meter / Power meter
- Voltage, current and frequency protection
- Phase sequence display
- It is possible to delete the requirements
- The menu is password protected.
Usually this multimeter is used with current transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. You can purchase such transformers in our e-shop,
