Air conditioner for electrical panels / Cooler 1100W, PAD1100.01, Plastim
Failed to load pickup availability
Online payment by card – after completing your order, you will be redirected to the payment page and receive a payment confirmation via email.
Cash on delivery – payment, according to the terms of sale, is made to the courier of the transport company.
Bank transfer – You will receive a proforma invoice by email no later than the next business day, containing the account number to use for payment.
On invoice with deferred payment – this payment method is available to partners who have signed a framework agreement with our company.
If you wish to use one of the latter two payment methods, please contact our account manager, who will provide you with instructions on how to receive an invoice with or without VAT.
The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In the event of a complaint, there are no costs for returning the goods.

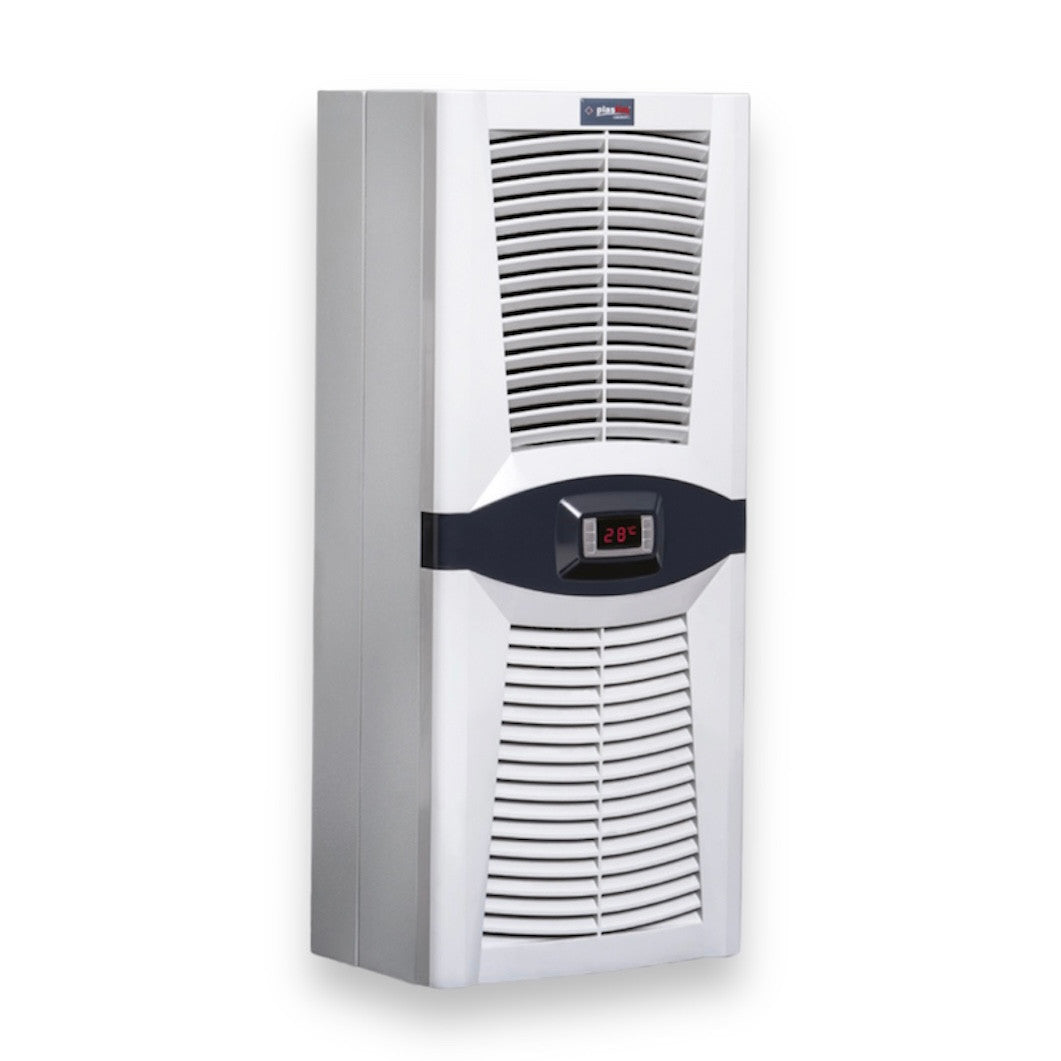

"Design Series" Air conditioner for panels/cooler 1100 Watt / 3800BTU for side or wall mounting on electrical and automation panels.
The PAD1100.01 (PLASTIM) air conditioner for electrical panels is equipped with a modern HIGHLY open-type rotary compressor, a Dixell thermostat, a condensate evaporator, and a limit switch to monitor the opening of the panel door.
Everything needed for the installation of the panel air conditioner is included: seals, drain hose, mounting screws, power connector.
TECHNICAL DETAILS | PAD1100.01 |
Cooling capacity L35 / L35 | 1100W / 3800BTU |
Operating voltage | 230VAC |
Frequency | 50/60 Hz |
Starting current | 7.2A |
Operating current | 2.5A |
Fuse | 10A |
Energy consumption | 575W |
Operating range | 0-55 °C |
Thermostat factory setting | 35 °C |
Differential | 4 °C |
Maximum air volume Internal circuit air volume | 340 m³/h |
Maximum air volume External circuit air volume | 590 m³/h |
Type of refrigerant | R134a |
Refrigerant quantity | 310gr |

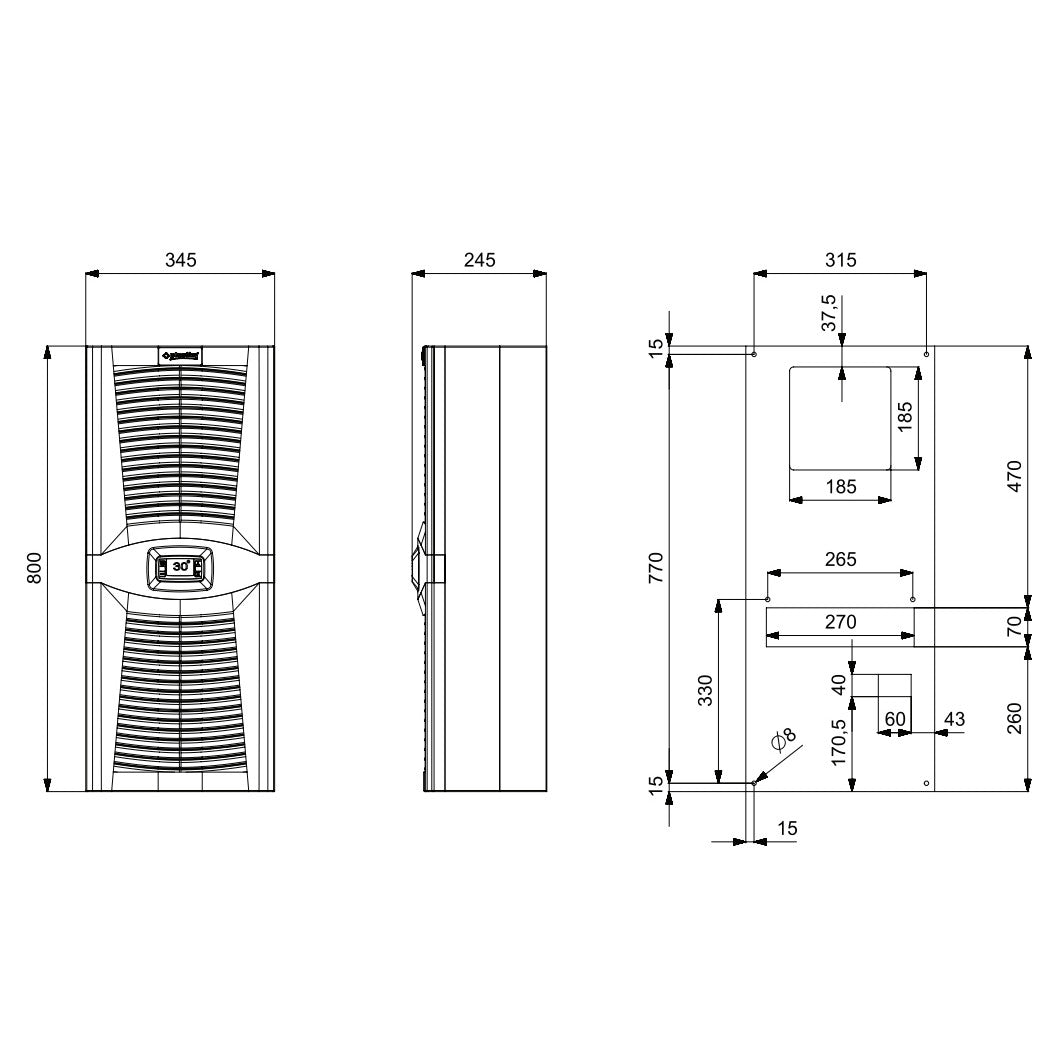

Dimensions | 800x345x223mm |
Weight | 32 kg |
Sound level | 76dB |
Protection rating (internal circuit) | IP 54 |
Protection rating (external circuit) | IP 34 |
Color | RAL7035 |
Compressor | ALTO/HITACHI |
Compressor type | Rotary |
Fans | EBMPAPST |
Mounting method | Wall mounting |
