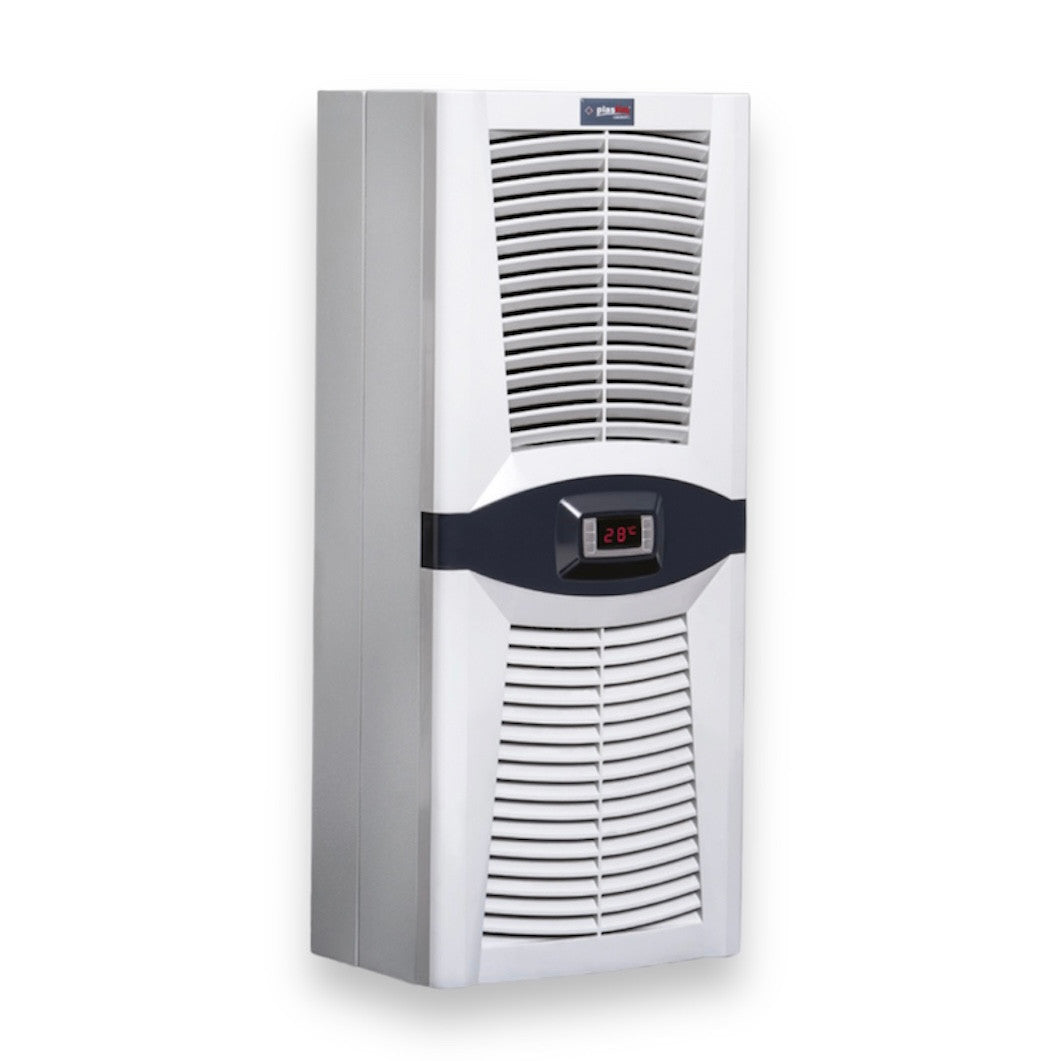

1600 watt air conditioner for panels / coolers (Design Series) for side or wall mounting of electrical and automation panels.
The PAD1600.01 (PLASTIM) electrical panel air conditioner is equipped with a latest generation open-type rotary compressor, Dixell thermostat, condensate evaporator, and limit switch for controlling the panel door opening.
Everything needed to install the air conditioner in the panel is included: gaskets, drain tube, mounting screws, power connector.
|
TECHNICAL DETAILS |
PAD1600.01 |
|
Cooling capacity L35 / L35 |
1600W / 5500BTU |
|
Operating voltage |
230VAC |
|
Frequency |
50/60 Hz |
|
Starting current |
8A |
|
Operating current |
3.2A |
|
Fuse |
10A |
|
Energy consumption |
725W |
|
Operating range |
0-55 °C |
|
Thermostat factory setting |
35 °C |
|
Differential |
4 °C |
|
Maximum air volume Internal circuit air volume |
510 m³/h |
|
Maximum air volume External circuit air volume |
510 m³/h |
|
Type of refrigerant |
R134a |
|
Refrigerant quantity |
600gr |
|

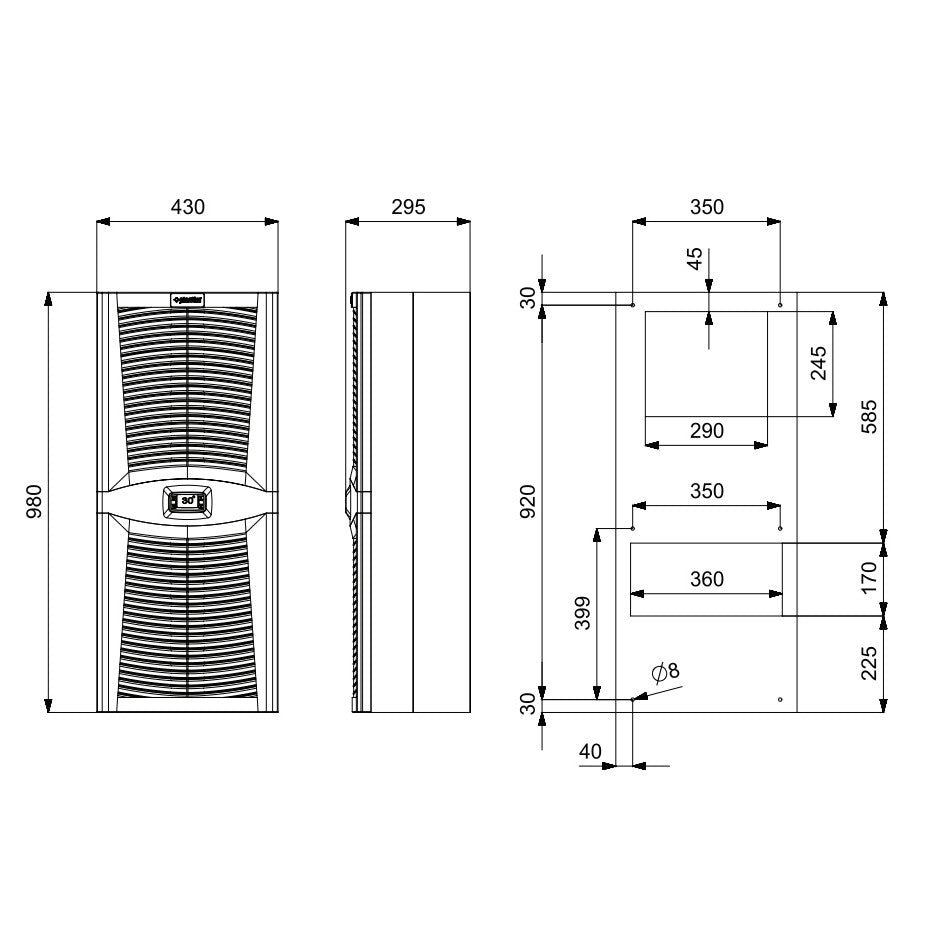

Dimensions |
980x430x270mm |
|
Weight |
45 kg |
|
Sound level |
79dB |
|
Protection rating (internal circuit) |
IP 54 |
|
Protection rating (external circuit) |
IP 34 |
|
Color |
RAL7035 |
|
Compressor |
ALTO/HITACHI |
|
Compressor type |
Rotary |
|
Fans |
EBMPAPST |
|
Mounting method |
Wall mounting |
