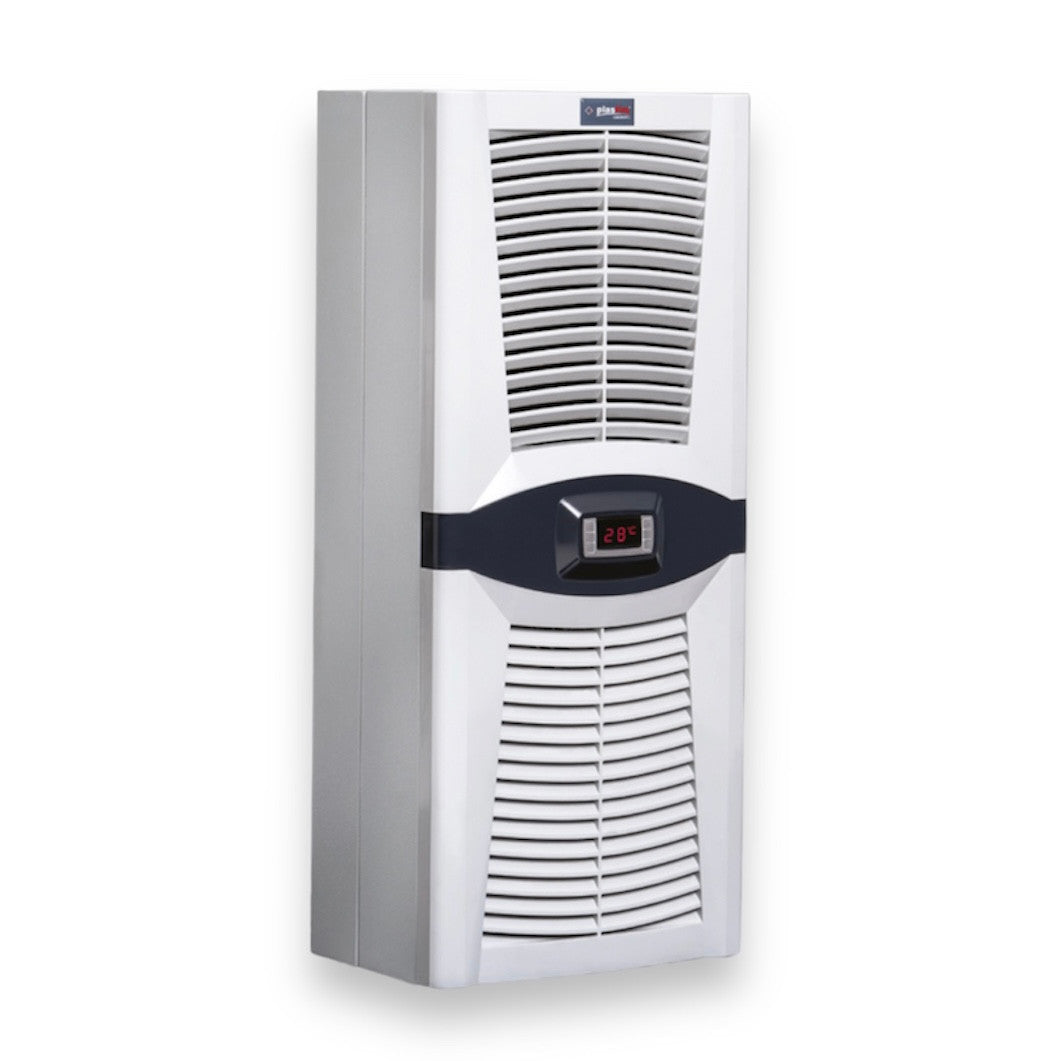

Air conditioner for electrical panels / Cooler 2100W, PAD2100.01, Plastim
- Regular price
- €2.284,96
- Regular price
-
- Sale price
- €2.284,96
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty
"Air conditioner for electrical panels / chiller 2500 Watt / 8550BTU for side or wall mounting of electrical and automation panels."
The PAD2550.01 (PLASTIM) air conditioner for electrical panels is equipped with a state-of-the-art open-type rotary compressor, a Dixell thermostat, a condensate evaporator, and a limit switch to control the opening of the panel door.
Everything needed for the installation of the panel air conditioner is included: seals, drain hose, mounting screws, power connector.
|
TECHNICAL DETAILS |
PAD2100.01 |
|
Cooling capacity L35 / L35 |
2100W / 7200BTU |
|
Operating voltage |
230VAC |
|
Frequency |
50/60 Hz |
|
Starting current |
10A |
|
Operating current |
3.8A |
|
Fuse |
16A |
|
Energy consumption |
800W |
|
Operating range |
0-55 °C |
|
Thermostat factory setting |
35 °C |
|
Differential |
4 °C |
|
Maximum air volume Internal circuit air volume |
510 m³/h |
|
Maximum air volume External circuit air volume |
625 m³/h |
|
Type of refrigerant |
R134a |
|
Refrigerant quantity |
700gr |
|
Dimensions |
980x430x270mm |
|
Weight |
46 kg |
|
Sound level |
80dB |
|
Protection rating (internal circuit) |
IP 54 |
|
Protection rating (external circuit) |
IP 34 |
|
Color |
RAL7035 |
|
Compressor |
ALTO/HITACHI |
|
Compressor type |
Rotary |
|
Fans |
EBMPAPST |
|
Mounting method |
Wall mounting |
Online card payment: after completing the order, you will be redirected to the payment gateway, the payment confirmation will be sent to your email
COD: you pay the payment according to the payment order to the transport company driver
By bank transfer- you will receive an advance invoice at your email address no later than the next working day, on which you will find the account number to enter during payment.
On invoice: this payment option is available for partners who have signed a framework agreement with our company.
If you want to use the last 2 methods, call our manager and he will give you instructions on how to receive an invoice with or without VAT.
The electrical devices we provide meet high quality standards, have a 24-month warranty, and meet all EU requirements.
Additionally, we offer free shipping for orders over €100. We have a flexible system of discounts and promotions. The technical knowledge and experience of our employees allow us to provide high-quality advice and, if necessary, offer alternatives to electrical products.
The electrical equipment we provide meets high quality standards, is covered by a 24-month warranty, and complies with all EU requirements.
In case of a complaint, the return of the goods is not charged.
