"Air conditioner for electrical panels / chiller 2500 Watt / 8550BTU for side or wall mounting of electrical and automation panels."

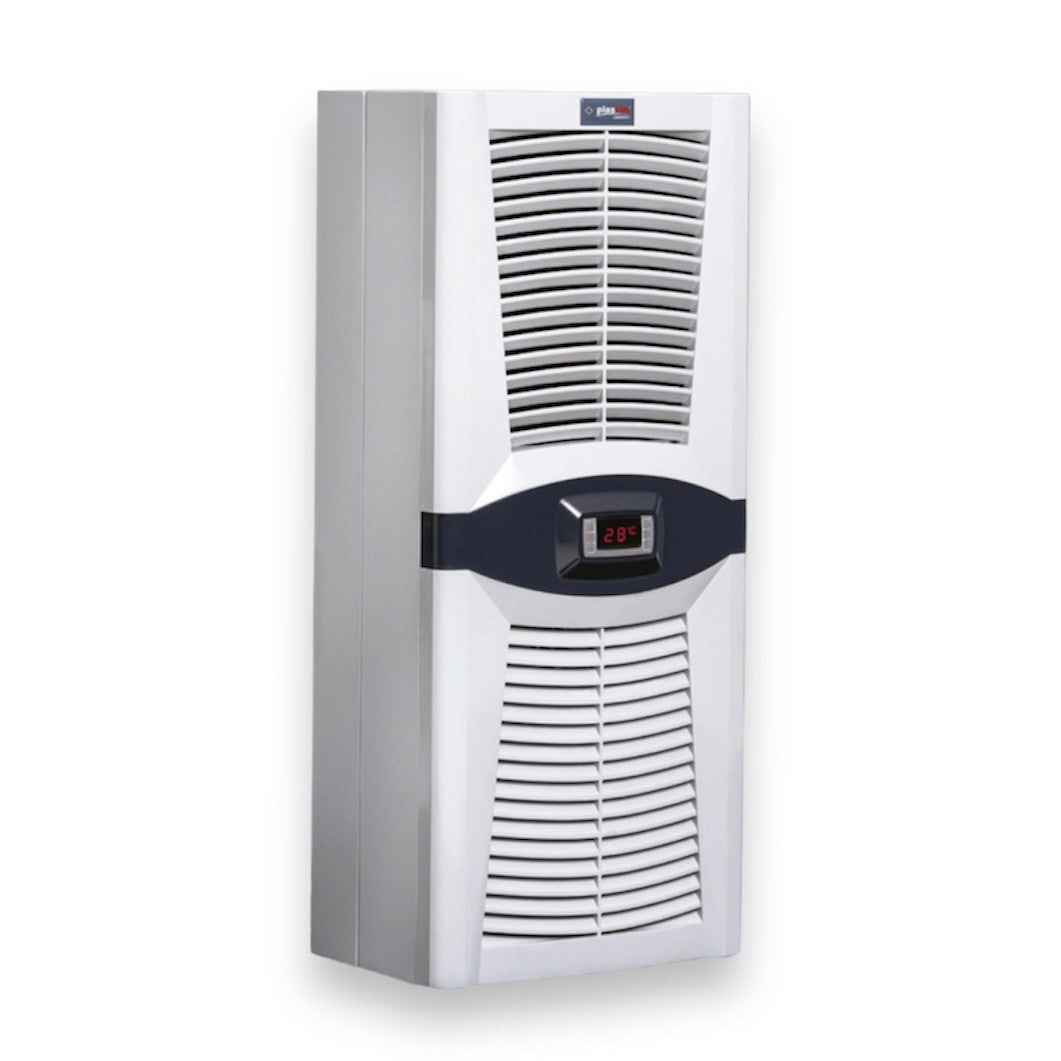

The PAD2550.01 (PLASTIM) air conditioner for electrical panels is equipped with a state-of-the-art open-type rotary compressor, a Dixell thermostat, a condensate evaporator, and a limit switch to monitor the panel door opening.
Everything needed to install the air conditioner for the panel is included: seals, drain tube, mounting screws, power connector.
TECHNICAL DETAILS |
PAD2550.01 |
Cooling capacity L35 / L35 |
2500W / 8550BTU |
Operating voltage |
230VAC |
Frequency |
50/60 Hz |
Starting current |
11A |
Operating current |
3.8A |
Fuse |
16A |
Energy consumption |
800W |
Operating range |
0-55 °C |
Thermostat factory setting |
35 °C |
Differential |
4 °C |
Maximum air volume Internal circuit air volume |
510 m³/h |
Maximum air volume External circuit air volume |
625 m³/h |
Type of refrigerant |
R134a |
Refrigerant quantity |
750gr |
Dimensions |
980x430x270mm |
Weight |
47 kg |
Sound level |
82dB |
Protection rating (internal circuit) |
IP 54 |
Protection rating (external circuit) |
IP 34 |
Color |
RAL7035 |
Compressor |
ALTO/HITACHI |
Compressor type |
Rotary |
Fans |
EBMPAPST |
Mounting method |
Wall mounting |
