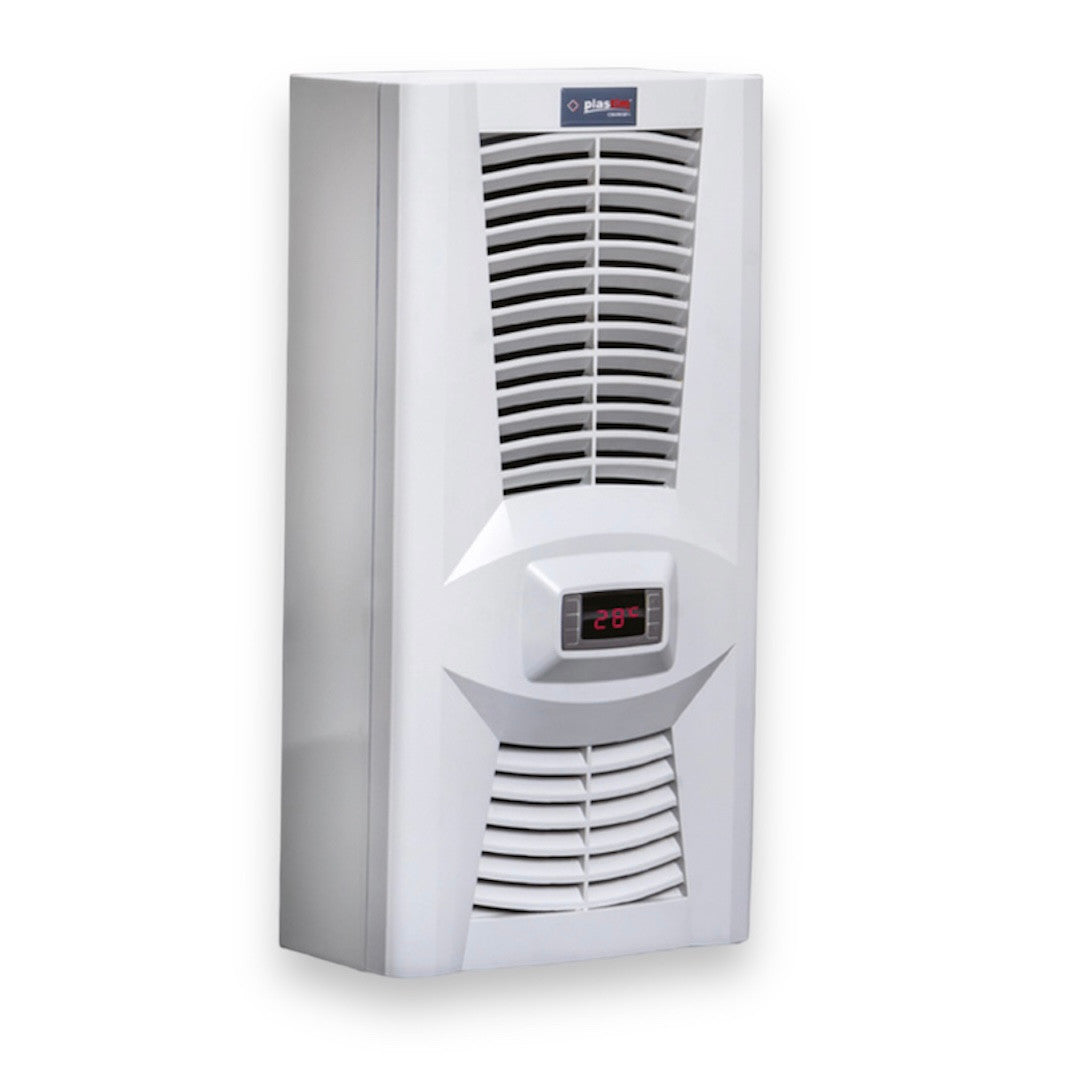

"Air conditioner for electrical panels / chiller 380 Watt / 1300 BTU for side or wall mounting of electrical and automation panels."
The PAD0380.01 (PLASTIM) air conditioner for electrical panels is equipped with a state-of-the-art open-type rotary compressor, a Dixell thermostat, a condensate evaporator, and a limit switch to control the opening of the panel door.
Everything needed for the installation of the panel air conditioner is included: seals, drain hose, mounting screws, power connector.
| TECHNICAL DETAILS | PAD0380.01 |
| Cooling capacity L35 / L35 | 380W / 1300BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 3.7A |
| Operating current | 1.1A |
| Fuse | 5A |
| Energy consumption | 325W |
| Operating range | 0-55 °C |
| Thermostat factory setting | 35 °C |
| Differential | 4 °C |
| Maximum air volume Internal circuit air volume | 340 m³/h |
| Maximum air volume External circuit air volume | 340 m³/h |
| Type of refrigerant | R134a |
| Refrigerant quantity | 120gr |
| Dimensions | 560x285x150mm |
| Weight | 15 kg |
| Sound level | 75dB |
| Protection rating (internal circuit) | IP 54 |
| Protection rating (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | ALTO/HITACHI |
| Compressor type | Rotary |
| Fans | EBMPAPST |
| Mounting method | Wall mounting |
Description
Online card payment: after completing your order, you will be redirected to the payment gateway, and payment confirmation will be sent to your email.
COD: you pay the amount due for the order to the transport company’s driver upon delivery.
By bank transfer – you will receive a pro forma invoice at your email address no later than the next business day. It will include the account number to enter when making the payment.
On invoice: this payment option is available to partners who have signed a framework agreement with our company.
If you wish to use either of the last two methods, call our manager, who will provide instructions on how to receive an invoice with or without VAT.
The electrical devices we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements.
We also offer free shipping on orders over €200. We have a flexible system of discounts and promotions. The technical knowledge and experience of our employees enable us to provide high-quality advice and, when necessary, offer alternatives to electrical products.
The electrical equipment we provide meets high quality standards, is covered by a 24-month warranty, and complies with all EU requirements.
In case of a complaint, the return of the goods is not charged.
