"Air conditioner for electrical panels / 550 Watt cooler / 1900BTU for side or wall mounting of electrical panels and automation.

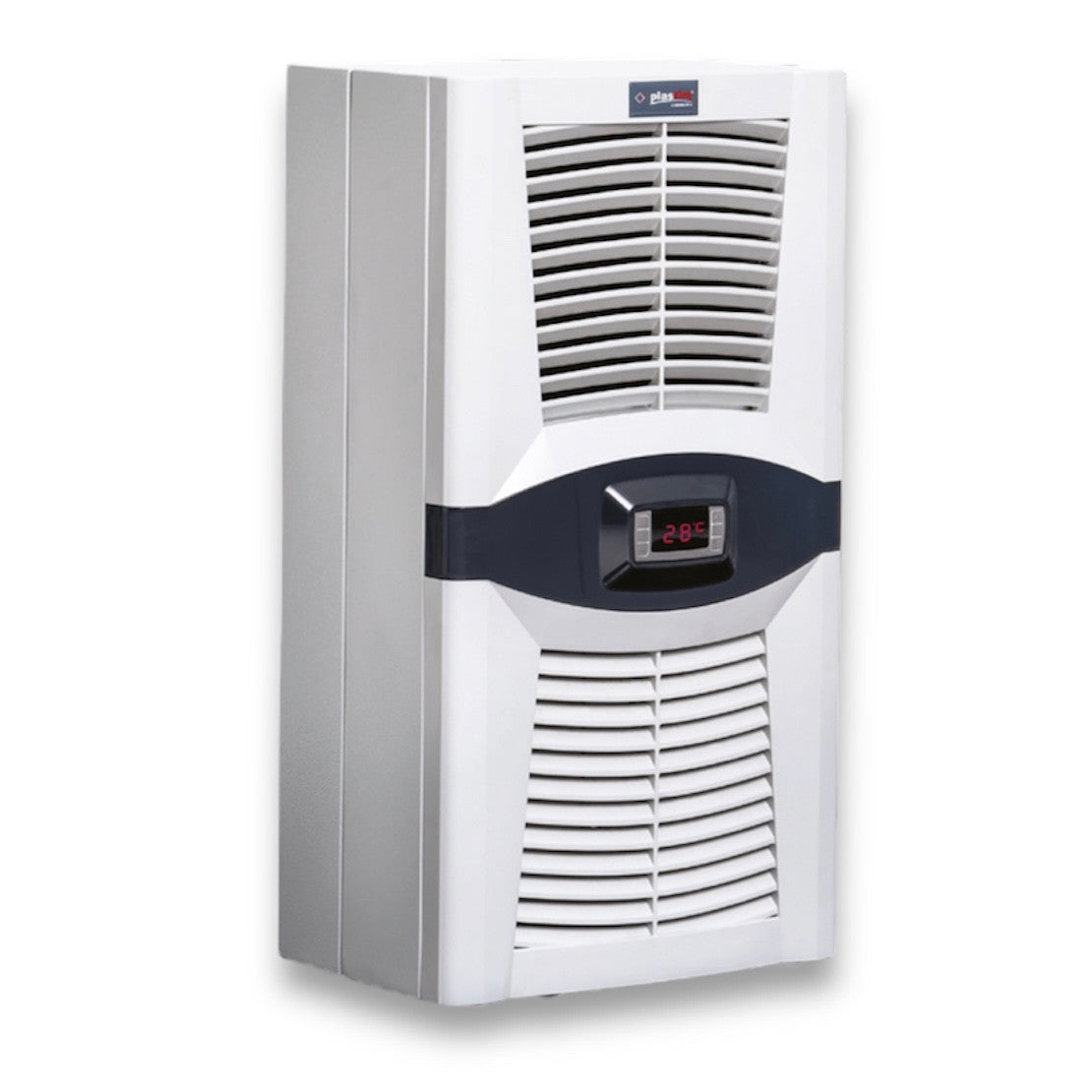

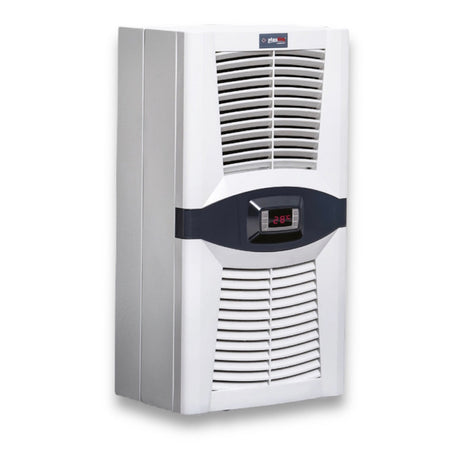

The PAD0550.01 (PLASTIM) air conditioner for electrical panels is equipped with a state-of-the-art open-type rotary compressor, a Dixell thermostat, a condensate evaporator, and a limit switch to control the opening of the panel door.
Everything needed for the installation of the panel air conditioner is included: gaskets, drain tube, mounting screws, power connector.
| TECHNICAL DETAILS | PAD0550.01 |
| Cooling Capacity L35 / L35 | 550W / 1900BTU |
| Operating Voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting Current | 1.2A |
| Operating Current | 1.1A |
| Fuse | 6A |
| Energy Consumption | 330W |
| Operating Range | 0-55 ° |
| Thermostat Factory Setting | 35 ° |
| Differential | 4 ° |
| Maximum Air Volume Internal Circuit Air Volume | 340 m³/h |
| Maximum Air Volume External Circuit Air Volume | 505 m³/h |
| Refrigerant Type | R134a |
| Refrigerant Quantity | 245gr |

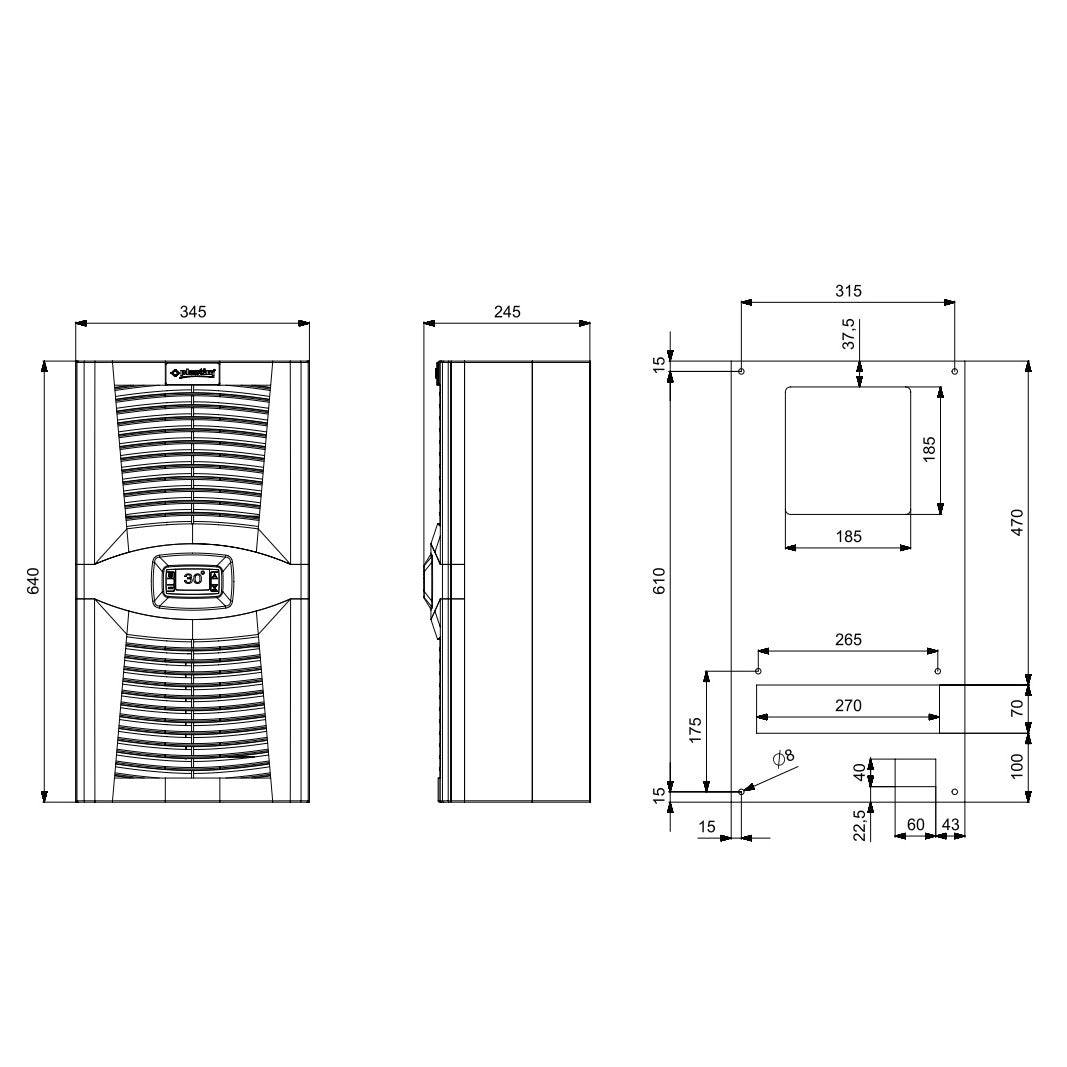

| Dimensions | 640x345x223mm |
| Weight | 27 kg |
| Sound Level | 76dB |
| Protection Degree (internal circuit) | IP 54 |
| Protection Degree (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | ALTO/HITACHI |
| Compressor Type | Rotary |
| Fans | EBMPAPST |
| Mounting Method | Wall mounting |
