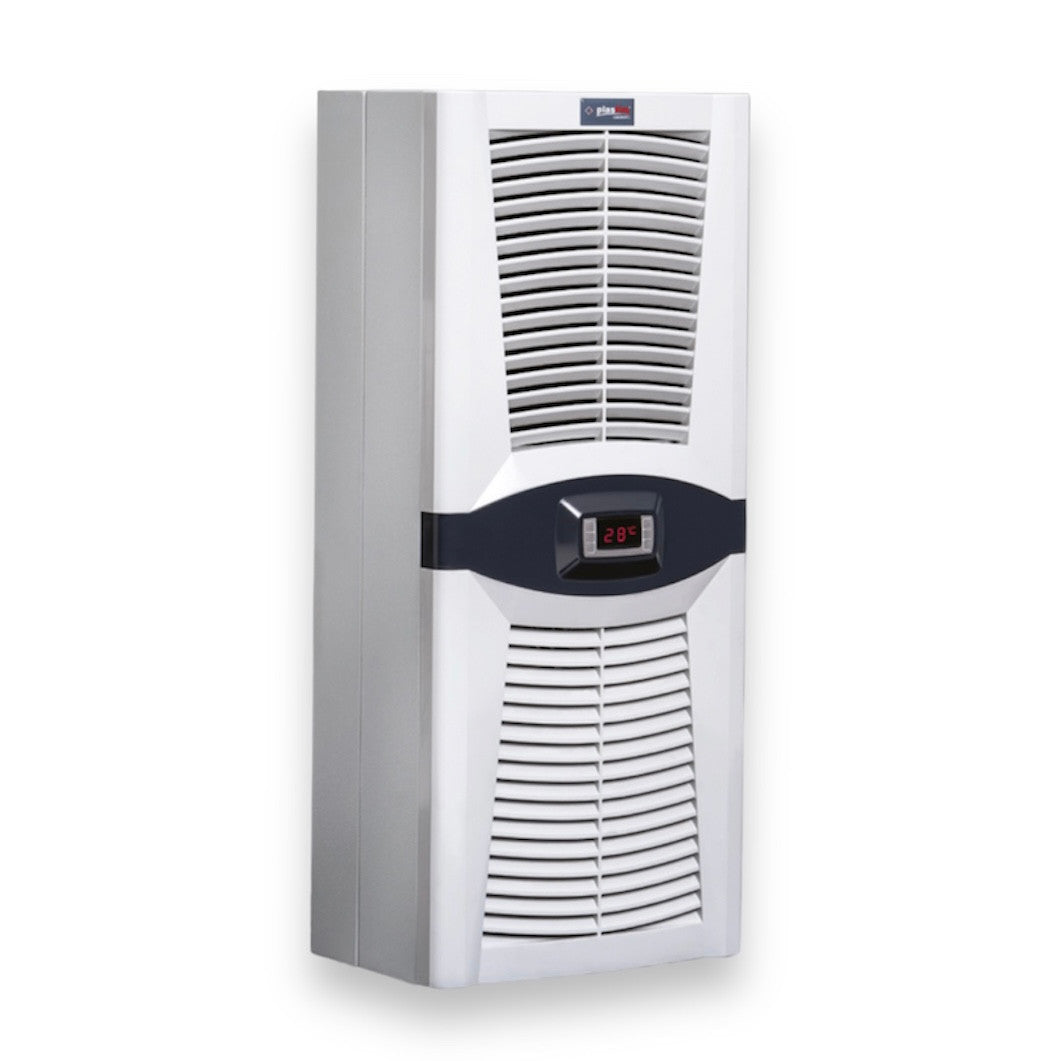

Air conditioner for electrical panels / Cooler 850W, PAD0850.01, Plastim
- Regular price
- €1.503,33 €1.232,24 excl. VAT
- Regular price
-
- Sale price
- €1.503,33 €1.232,24 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty
"'Serie Design' air conditioner for panels / chiller 850 Watt / 2990BTU for electrical and automation panels with side or wall mounting."
The PAD08500.01 (PLASTIM) panel air conditioner is equipped with a modern HIGHLY open-type rotary compressor, a Dixell thermostat, a condensate evaporator, and a limit switch to control the opening of the panel door.
Everything needed for the installation of the cabinet air conditioner is included: seals, drain hose, mounting screws, power connector.
| TECHNICAL DETAILS | PAD0850.01 |
| Cooling capacity L35 / L35 | 850W / 2900BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 6A |
| Operating current | 1.7A |
| Fuse | 10A |
| Energy consumption | 394W |
| Operating range | 0-55 °C |
| Thermostat factory setting | 35 °C |
| Differential | 4 °C |
| Maximum air volume Internal circuit air volume | 340 m³/h |
| Maximum air volume External circuit air volume | 505 m³/h |
| Type of refrigerant | R134a |
| Refrigerant quantity | 290gr |
| Dimensions | 800x345x223mm |
| Weight | 30 kg |
| Sound level | 76dB |
| Protection rating (internal circuit) | IP 54 |
| Protection rating (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | ALTO/HITACHI |
| Compressor type | Rotary |
| Fans | EBMPAPST |
| Mounting method | Wall mounting |
