Bimetallic cooling thermostat NO switching, range 0-60°C - temperature switches
- Regular price
- €9,76 €8,00 excl. VAT
- Regular price
-
- Sale price
- €9,76 €8,00 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

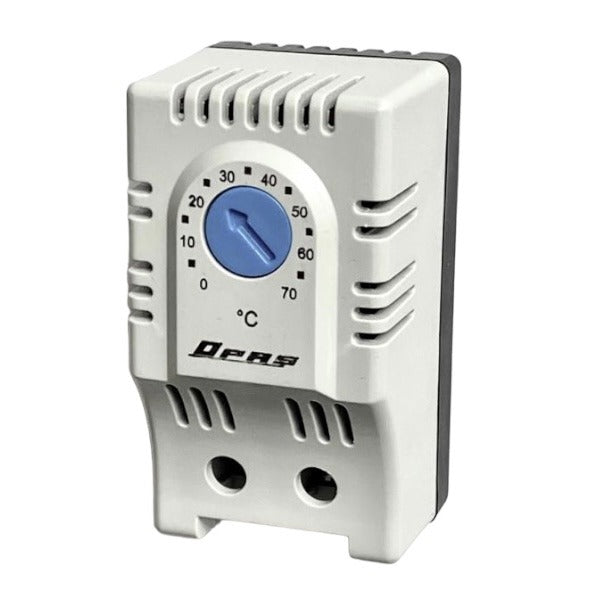

Bimetallic cooling thermostat / temperature switch NO, switching, 0-60°C, bimetallic from OPAŞ
Cabinet thermostat (temperature relay, temperature sensor, thermal relay, air temperature control relay) mechanical with built-in air temperature sensor for DIN rail mounting to connect the fan or signal when the temperature rises above the set level, normally an open contact (NO contact) PTOT100, 2p, screw terminal, OPAŞ bimetallic thermostats.
These thermostats are used in systems that maintain a set temperature using cooling elements such as fans or air conditioners. These systems are used to prevent overheating of equipment installed in electrical cabinets, ATMs, payment terminals, and other equipment installed outdoors or in uncooled rooms.

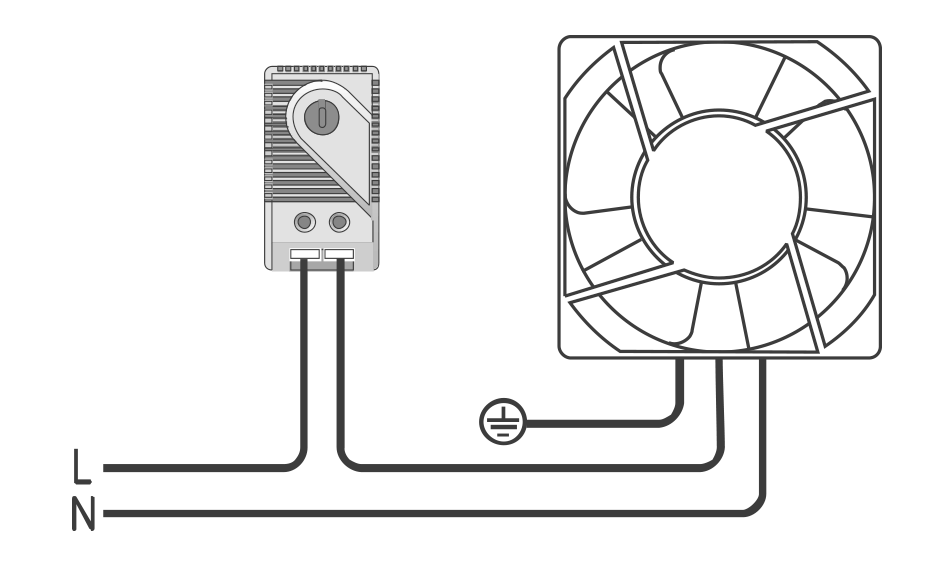

They are used to connect fans, coolers/air conditioners.
|
Features |
PTOT100 |
|
Contact type |
NO |
|
Adjustment range |
0-60 °C |
|
Potentiometer color |
Blue |
|
250V AC / 120V AC |
15 (2) A |
|
Sensor type |
Bimetallic |
|
Contact type |
Snap action |
|
Lifetime |
> 100,000 |
|
Electrical connection |
2-pole terminal, screw terminals |
|
Plastic material |
ABS UL94 V0 flame retardant |
|
Protection rating |
IP20 |
|
Operating temperature |
-25 / +80 °C |
|
Storage temperature
|
-45 / +80 °C |
|
Installation |
DIN 35 mm rail
|
|
Dimensions HxWxD |
61x34x38 mm |
|
Weight |
43g |
