Bimetallic thermostat with NC switching, switchable, range 0-60°C - temperature switches
- Regular price
- €9,76 €8,00 excl. VAT
- Regular price
-
- Sale price
- €9,76 €8,00 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

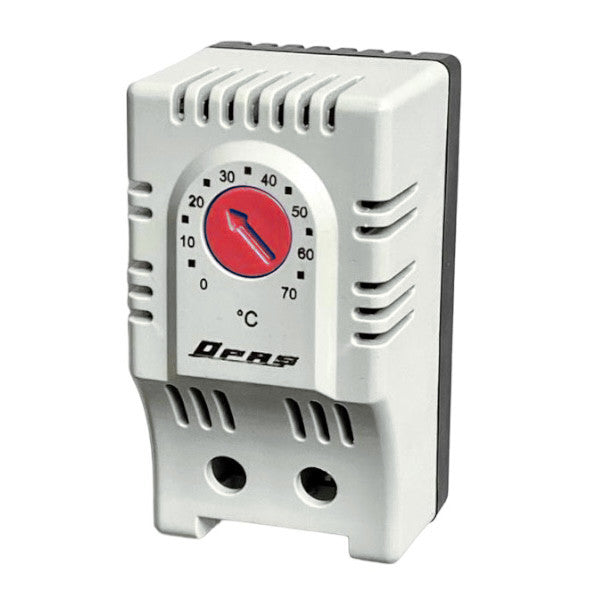

Bimetallic NC thermostat / temperature switches, 0-60°C, DIN rail mounting. Bimetallic from OPAŞ
Simple thermostat. 220(250) V AC. Bimetallic sensor with heating function. Electrical connection with 2 terminals of 2.5 mm2. Mounting mode on 35 mm DIN rail, cross rails, on mounting panel.

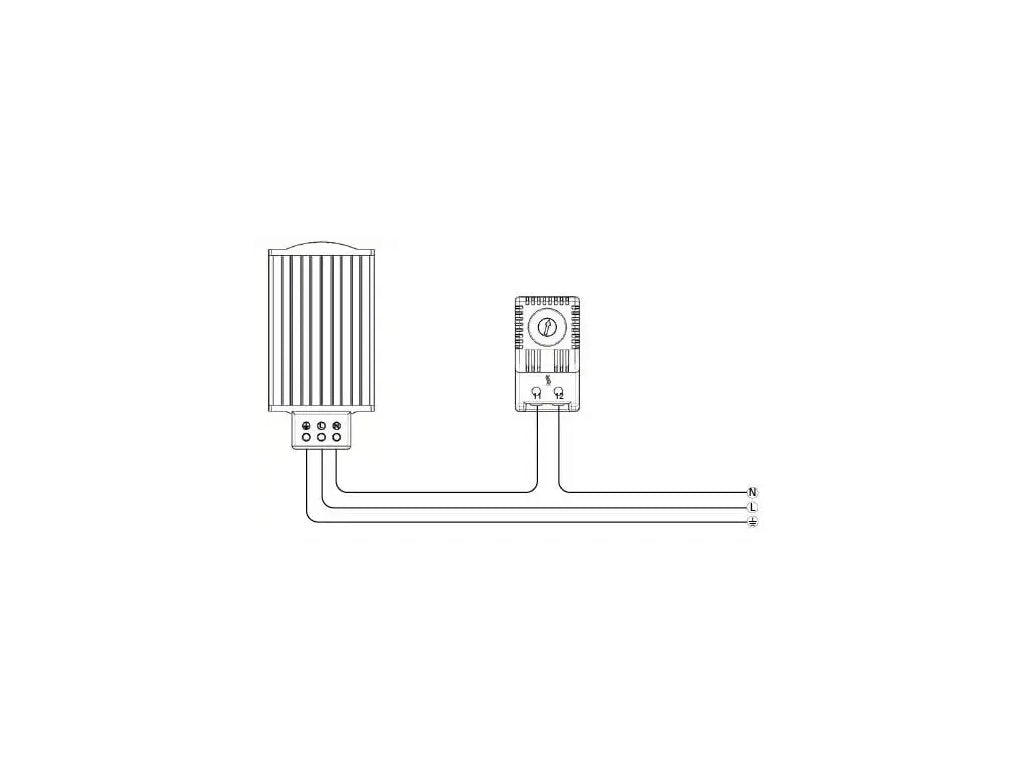

Used to connect heating elements - electric resistors, panel heaters, heated floors, heating cables, heat fans.
Features |
PTOT001 |
Contact type |
NC |
Setting range |
0-60 °C |
Potentiometer color |
Red |
250V AC / 120V AC |
10 (2) A |
Sensor type |
Bimetallic |
Contact type |
Snap action |
Service life |
> 100,000 |
Electrical connection |
2-pole terminal, screw terminals |
Plastic material |
ABS UL94 V0 flame retardant |
Protection rating |
IP20 |
Operating temperature |
-25 / +80 °C |
Storage temperature |
-45 / +80 °C |
Installation |
DIN 35 mm rail |
Dimensions HxWxD |
61x34x38 mm |
Weight |
43g |
Online card payment: after completing your order, you will be redirected to the payment gateway, and payment confirmation will be sent to your email.
COD: you pay the amount due for the order to the transport company’s driver upon delivery.
By bank transfer – you will receive a pro forma invoice at your email address no later than the next business day. It will include the account number to enter when making the payment.
On invoice: this payment option is available to partners who have signed a framework agreement with our company.
If you wish to use either of the last two methods, call our manager, who will provide instructions on how to receive an invoice with or without VAT.
The electrical devices we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements.
We also offer free shipping on orders over €200. We have a flexible system of discounts and promotions. The technical knowledge and experience of our employees enable us to provide high-quality advice and, when necessary, offer alternatives to electrical products.
The electrical equipment we provide meets high quality standards, is covered by a 24-month warranty, and complies with all EU requirements.
In case of a complaint, the return of the goods is not charged.
