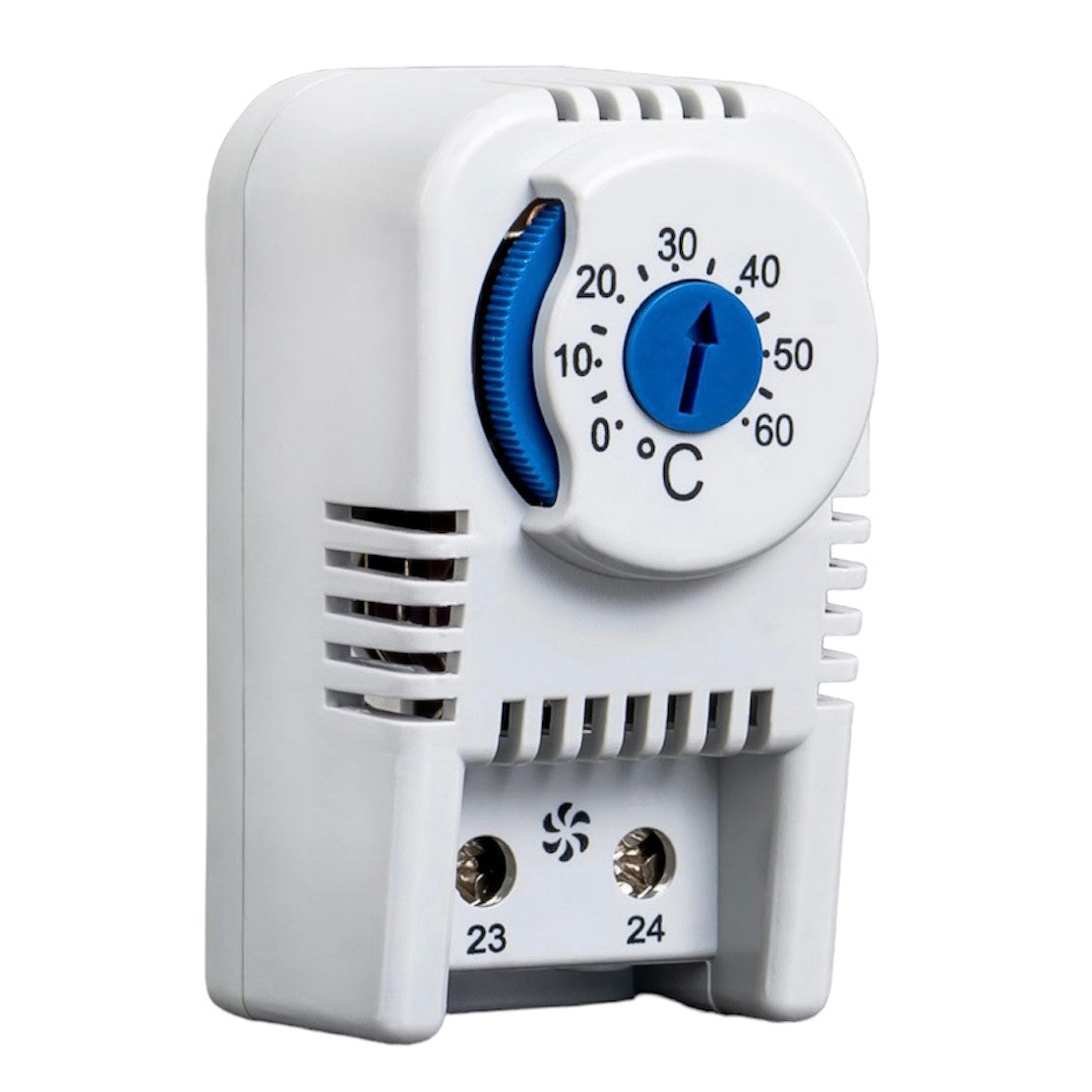

Bimetallic thermostat NO switching, adjustment range 0-60°C, PTVT

In stock - 192 items available
SKU: PTVT
Common price €8,28 inclusa IVA

Online payment by card – after completing your order, you will be redirected to the payment page and receive a payment confirmation via email.

Cash on delivery – payment, according to the terms of sale, is made to the courier of the transport company.

Bank transfer – You will receive a proforma invoice by email no later than the next business day, containing the account number to use for payment.

On invoice with deferred payment – this payment method is available to partners who have signed a framework agreement with our company.

If you wish to use one of the latter two payment methods, please contact our account manager, who will provide you with instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In the event of a complaint, there are no costs for returning the goods.

Panel thermostat (temperature relay, temperature sensor, thermal relay, air temperature control relay) mechanical with built-in air temperature sensor for DIN rail installation for fan connection or signaling when the temperature exceeds the set level, normally open contact (NO contact) PTVT, 2p, screw terminals, Plastim bimetallic thermostats.

These thermostats are used in systems that maintain a set temperature using cooling elements such as fans or air conditioners. These systems are used to prevent overheating of equipment installed in electrical cabinets, ATMs, payment terminals, and other equipment installed outdoors or in uncooled rooms.

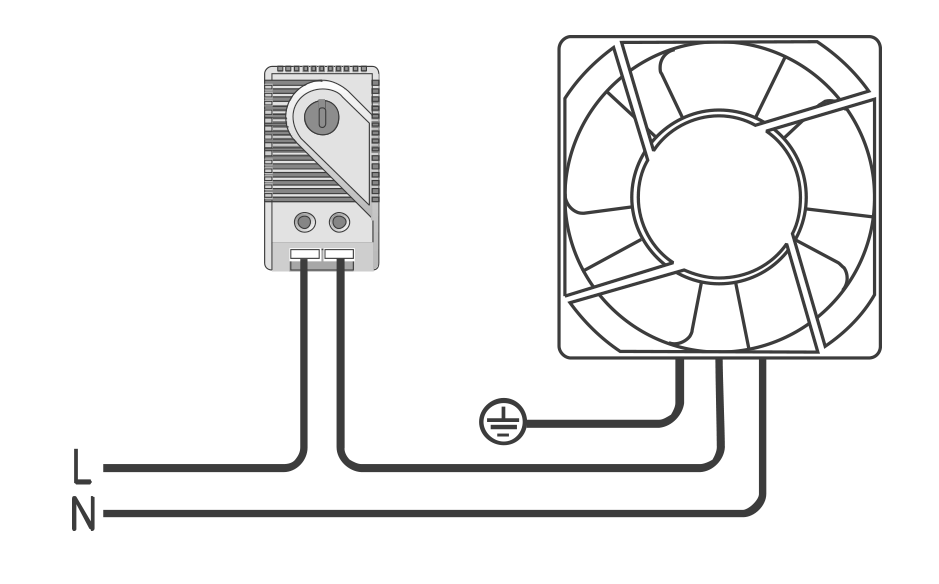

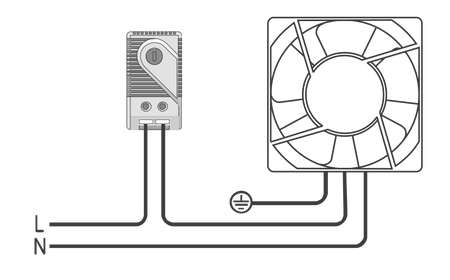

They are used to connect fans, coolers/air conditioners.

Features

PTHT

Contact type

NO

Adjustment range

0-60°C

Potentiometer color

Blue

250V AC / 120V AC

15 (2)A

Sensor type

Bimetallic

Contact type

Snap action

Service life

> 100,000

Electrical connection

2-pole terminal, screw terminals

Plastic material

ABS UL94 V0 flame retardant

Protection rating

IP20

Operating temperature

-25 / +80 °C

Storage temperature

-45 /+80°C

Installation

DIN 35mm rail

Dimensions HxWxD

61x34x38 mm

Weight

45g
