Vendor: TENSE

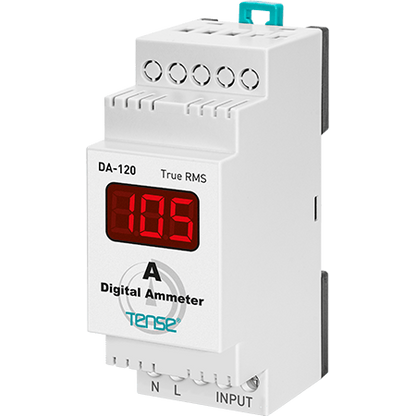

DA-DIN Digital Ammeter for AC 100 or 250 Amperes

Barcode: DA-120
€40,12
€40,12
excl. VAT: €32,89
Low stock: 5 left
Brand: 100A
  • Description
  • Instructions
  • Payment methods
  • Warranty

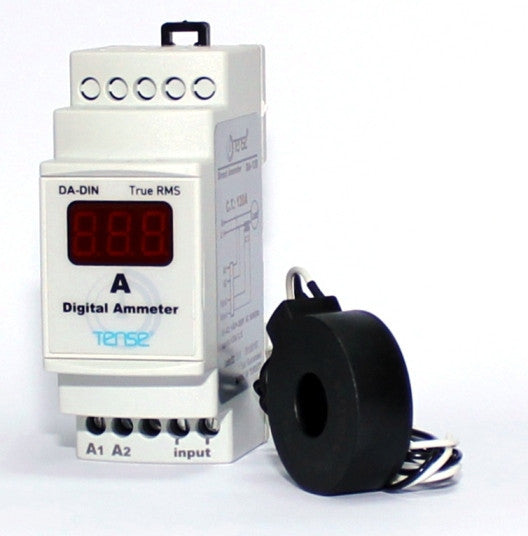

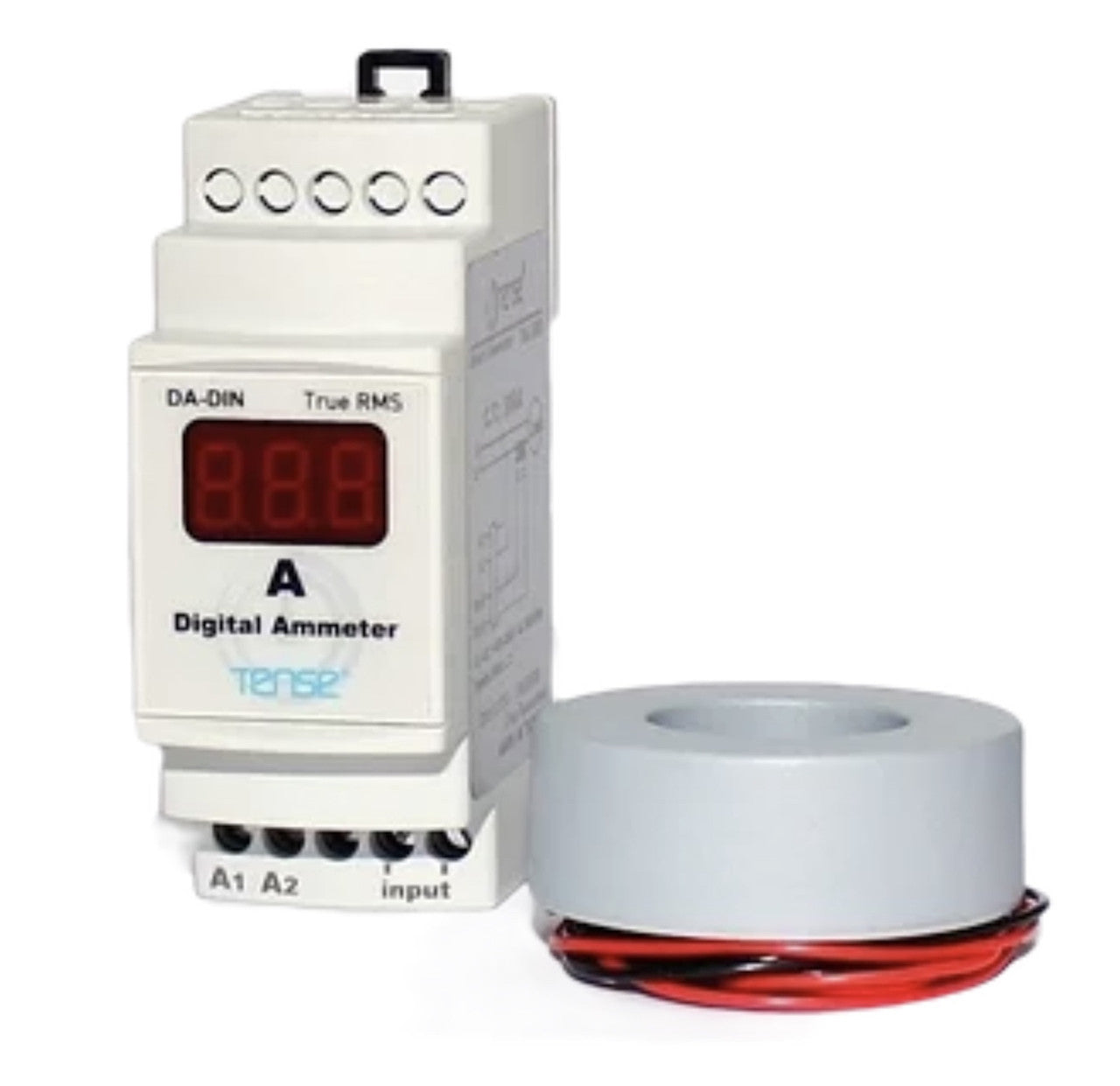

Amperometro monofase con trasformatore di corrente 120/5, valore True RMS di alta precisione, montabile su guida DIN, campo di misura fino a 120 A, campo di misura teso fino a 120 A, display a 3 cifre, campo di frequenza operativa 50/60 Hz DA-120, da utilizzare con il trasformatore di corrente CT-120 fornito con lo strumento. Collegare i cavi del trasformatore di corrente ai terminali di ingresso dello strumento. I valori dello strumento sono regolati in base al trasformatore di corrente. Pertanto, non combinare trasformatori di corrente di marche e modelli diversi. Quando lo strumento è alimentato, il display visualizza la corrente assorbita dal carico.

Scaricare su

Manuale d'uso

Online card payment: after completing the order, you will be redirected to the payment gateway, the payment confirmation will be sent to your email

COD: you pay the payment according to the payment order to the transport company driver

By bank transfer- you will receive an advance invoice at your email address no later than the next working day, on which you will find the account number to enter during payment.

On invoice: this payment option is available for partners who have signed a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical devices we provide meet high quality standards, have a 24-month warranty, and meet all EU requirements.

Additionally, we offer free shipping for orders over €100. We have a flexible system of discounts and promotions. The technical knowledge and experience of our employees allow us to provide high-quality advice and, if necessary, offer alternatives to electrical products.

The electrical equipment we provide meets high quality standards, is covered by a 24-month warranty, and complies with all EU requirements.

In case of a complaint, the return of the goods is not charged.
