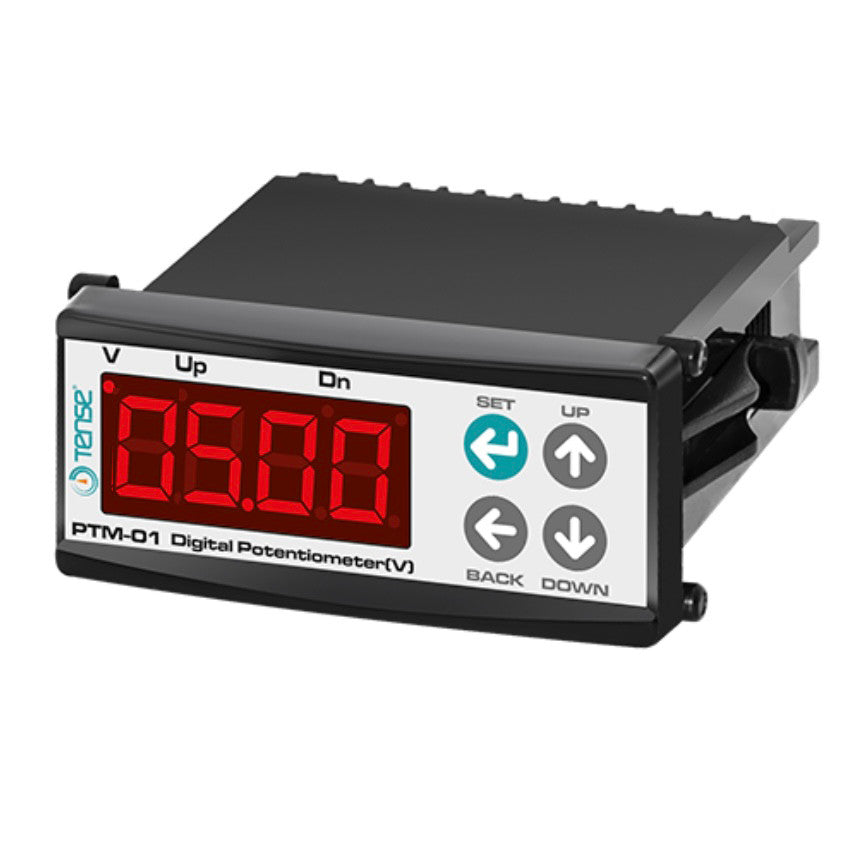

Digital potentiometer, voltage source 0-10V
- Regular price
- €50,12
- Regular price
-
- Sale price
- €50,12
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty
Digital potentiometers are control devices that produce an analog output between 0 and 10V.
- Microprocessor-based
- Analog output: 0-10V
- Menu entry and analog output control via front buttons

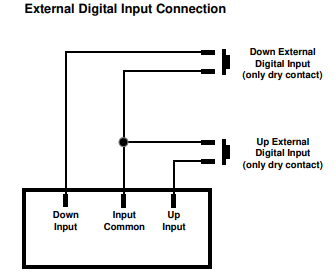

- Analog output control via digital inputs
- Adjustable upper and lower scale level
- Adjustable upper and lower limit for SET
- Separate selection of functions for front buttons and digital inputs for analog output control
- Password protection
- SECU setting to enable/disable entry into the SET adjustment menu
- High precision
- EEPROM memory to store settings
- Easy connection with plug-in connectors
TECHNICAL SPECIFICATIONS
- Dimensions: 35x77 mm
- Panel cutout: 29x71 mm
- Display: 4 digits, 7-segment
- Analog output: 0-10V or 4-20mA (to be specified when ordering)
- Load impedance 0-10V: >5K
- 4-20mA max. Voltage: <10V
- Resolution: 2mV (0-10V), 4μA (4-20mA)
- Accuracy: ±%1; (Overrange)
- User control: Via up/down buttons on the front panel or digital up/down inputs.
- Digital inputs: dry contact input only
- Power supply voltage: 100...240VAC, 50-60Hz or 24VDC/AC.
- Power consumption: < 6VA
- Humidity: 80% up to 30°C, then decreases linearly to 50% at 50°C (no condensation).
- Altitude: < 2000 m
- Protection class: IP20
- Operating temperature: 0 ... 50 oC
- Storage temperature: -10oC ... 60oC (no frost formation)
- Weight: < 0.5 kg
