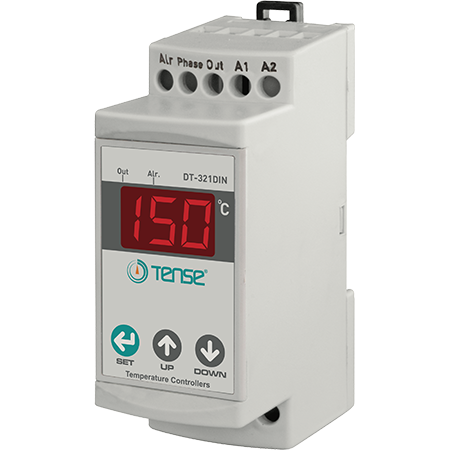

Two-point thermostat / temperature controller for DIN rail mounting with external sensor. ON-OFF control mode, measurement range -30ºC ...+150ºC (product made in Turkey, TENSE) DT-321DIN
Thermostatic controller with external sensor
The DT-321DIN temperature controller features individual usability and is used to control heating or cooling devices. Alternatively, the DT-321DIN can also simply serve as a reading device.
Control and monitoring of thermal processes in heating, air conditioning, and ventilation systems, building automation, industrial plants.
Sensor type: NTC
Relay outputs OUT and ALARM (NO+NC) 250VAC, 2A
Optional heating and cooling function
- Hysteresis
Adjustable ON/OFF timers for the OUT output in case of sensor failure
- Compression protection thanks to adjustable shutdown times
Upper and lower limits for SET and ALARM settings
Separate adjustable hysteresis for SET and ALARM settings
Power-on delay for OUT in cooling mode
EEPROM memory to store settings
Password protection
High accuracy
Package contents:
1x DT-321DIN temperature controller
1x NTC (sensor)
1x user manual (English)
This simple temperature controller can be used with the three types of sensors presented on our website:
- reference type 1: from -30°C to 105°C - SKU: NTC-105 (included)
- reference type 2: from -30°C to 150°C - SKU: NTC-150
- reference type 3: from -30°C to 150°C (with nut and thread) - SKU: NTC-S-150
Specifications:
Power supply voltage: 100 to 240 VAC, 50/60 Hz
Power consumption: < 6 VA
Sensor type: NTC
Temperature measurement range: from -30 °C to +150 °C
Resolution: +/- 1 °C
Measurement accuracy: +/- 3% (°C), over the entire measurement range
OUT output: relay (NO + NC), 250 VAC, 2A
Alarm output: relay (NO + NC), 250 VAC, 2A
Operating temperature: from 0°C to 50°C
Heating/cooling: Ht (heating), Cl (cooling); selectable

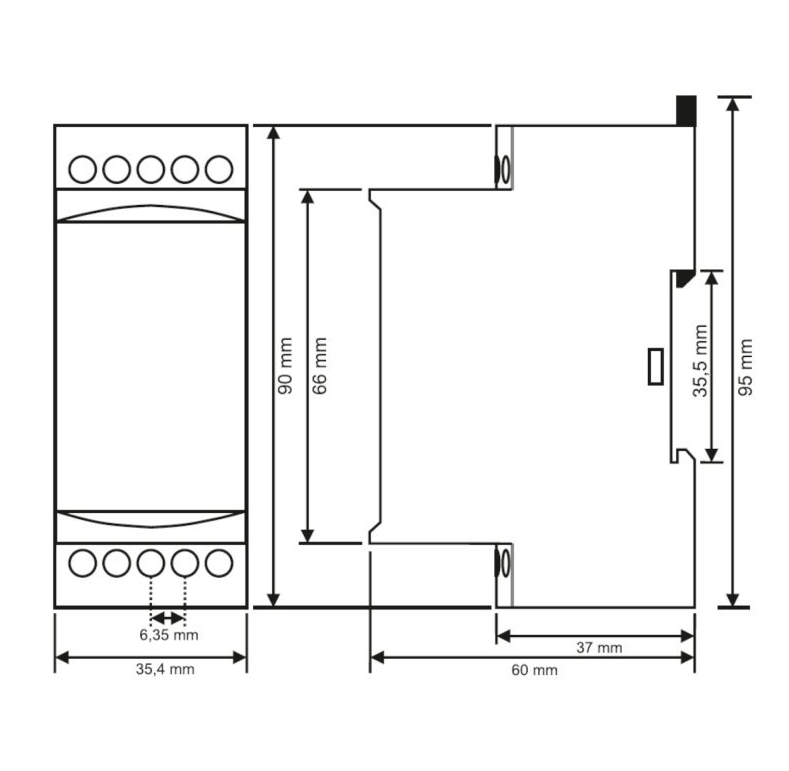

Front panel cutout: 66 x 36 mm
Display: 3 digits - 7 segments
Product type: temperature measuring device
Protection class: IP00
Brand: Tense
Country and region of manufacture: Türkiye
Power supply voltage: 100V - 240V ~
Connection type: screw terminals
Mounting: DIN rail
Temperature measurement range: -30...+150°C
Temperature relay (NO + NC), 250VAC, 2A, resistive load
Sensor type: NTC sensor
Shipping weight: 0.12 kg
Item weight: 0.10 kg
Dimensions (length × width × height): 8.50 × 7.80 × 36.00 cm
