Vendor: TENSE

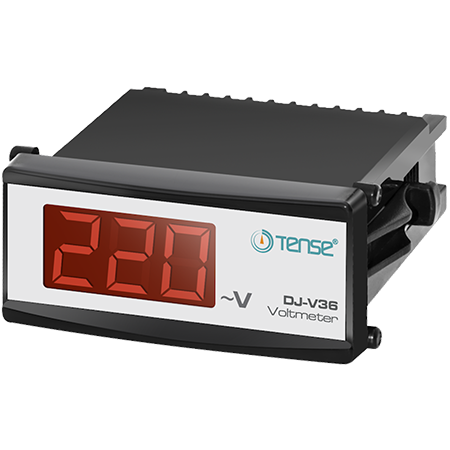

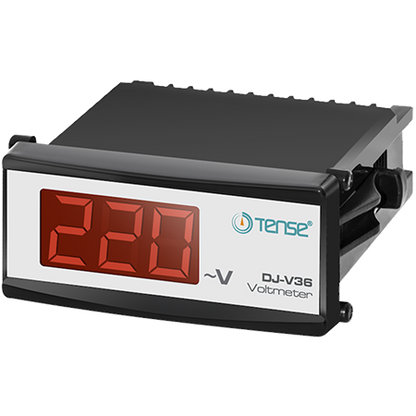

DJ-V - digital panel voltmeter built-in for AC voltage 1-500 V, panel meters

Barcode: DJ-V36
€31,20 €25,57 excl. VAT
€31,20 €25,57 excl. VAT
12 in stock
All items are in stock and shipped from the Czech Republic. Delivery takes 3–8 days.
Height x Width: 36 mm x 78 mm
  • Description
  • Instructions
  • Payment methods
  • Warranty

Voltmetro digitale monofase TENSE DJ

Descrizione del prodotto

I voltmetri digitali della serie TENSE DJ sono progettati per il monitoraggio continuo della tensione CA nei sistemi elettrici monofase e trifase. Offrono un'elevata precisione e affidabilità, rendendoli ideali per l'uso in quadri elettrici e pannelli di controllo.

Il dispositivo visualizza la tensione in fase o tra fase e zero, consentendo il monitoraggio continuo e la prevenzione dei guasti del sistema.

Vantaggi della serie TENSE DJ

  • Ampio campo di misura: 1 V - 500 V, adatto a diversi sistemi

  • Elevata precisione: errore di misura del ±1%.

  • Display LED luminosi:

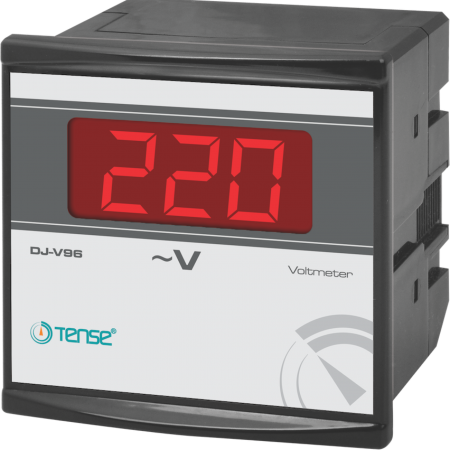

    • DJ-V96: 20 mm, display a 3 cifre

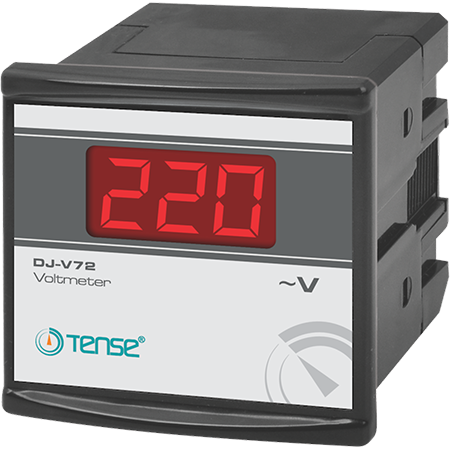

    • DJ-V72: 14 mm, display a 3 cifre

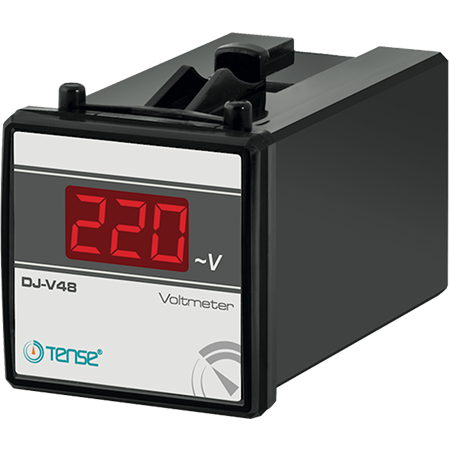

    • DJ-V48: 9 mm, display a 3 cifre

  • Basso consumo energetico: <6 VA

  • Facilità di collegamento: terminali a vite standard, fili fino a 1,5 mm²

  • Funzionamento affidabile: temperatura di esercizio 0 °C - +55 °C, protezione IP20, altitudine fino a 2000 m

Specifiche tecniche

ParametroValore
Tensione di esercizio (Un)140 - 260 V CA
Frequenza operativa50/60 Hz
Campo di tensione di misura1 - 500 V CA
Consumo di energia<6 VA
Tipo di montaggioMontaggio su pannello frontale
Grado di protezioneIP20
Temperatura di esercizio0 °C ... +55 °C
Conduttorifino a 1,5 mm²

Modelli disponibili

  • DJ-V96 - display da 20 mm

  • DJ-V72 - display da 14 mm

  • DJ-V48 - Display da 9 mm

Scaricare su

Manuale d'uso
