DJ-V96T Three-phase digital panel voltmeter for AC

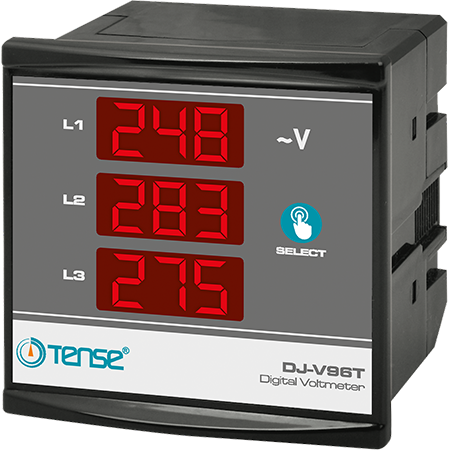

Three-phase digital panel voltmeter (electronic voltmeter for 3 phases) threaded type for TENDE AC, DJ-V96T

Device for simultaneous measurement of phase/neutral voltage on three phases with output of current voltage values on three displays. The display mode is selected via a button on the front panel of the voltmeter.

Device usage and operating principle

The device is designed to monitor the voltage between the phase conductor and neutral and between phases, as well as to display the phase sequence.

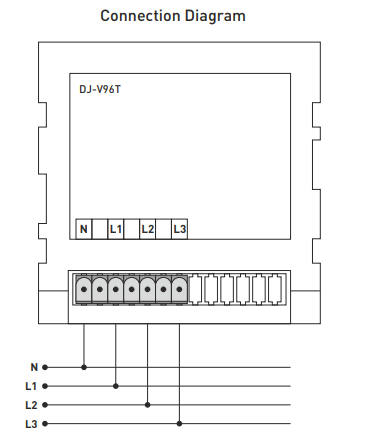

When power is connected, the voltage values at inputs L1, L2, and L3 are displayed.

If the display shows the phase voltage values of L1, L2, and L3, pressing the SELECT button displays the phase voltage values of L12, L23, and L31. Pressing the SELECT button again displays the phase sequence.

If the phase sequence is correct, the display shows L1, L2, L3 from top to bottom.

If the phase sequence is incorrect, the display shows L1, L3, L2 from top to bottom.

Technical specifications

Operating voltage (Un): 140 V - 300 V AC

Operating frequency: 50/60 Hz

Power consumption: <4VA

Operating temperature: -20°C.....+55°C

Measurement accuracy: ±1%

Measuring range (L-N): 5V - 300V AC (voltage on L1 must be at least 140V)

Measuring range (L-L): 5V - 500V AC

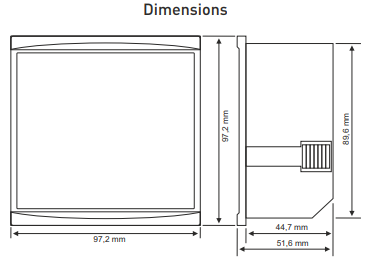

Mounting hole dimensions: 91x91 mm

Connection type: plug connector

Display: 3x3 digits, 14 mm

Weight: max 300 g

Operating altitude: <2000 meters

Cable diameter: 1.5 mm²
