DIN frequency counter digital frequency meter 1-400Hz panel meters
- Regular price
- €40,13 €32,89 excl. VAT
- Regular price
-
- Sale price
- €40,13 €32,89 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty
|

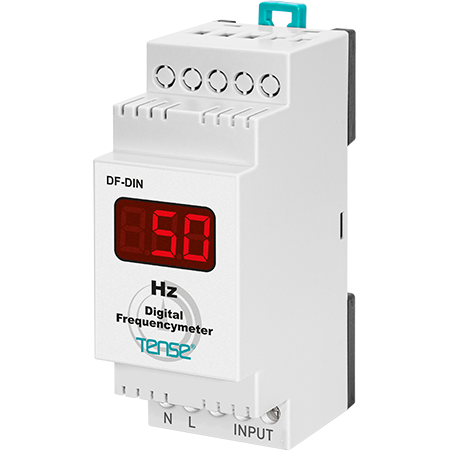

Highly accurate True RMS class frequency meter for installation
DIN guide. TENDE DF-DIN
The DF-DIN is designed to monitor the frequency range (from 1 Hz to 400 Hz) between phase and phase or phase and neutral.
The instrument is used to check frequency stability in single-phase and three-phase systems, particularly important for industrial equipment, generators, transformers, and power supply systems.
With a three-digit LED display, the frequency meter offers a clear and fast data display. The compact housing, ease of installation, and high accuracy make the Tense DF-DIN the optimal solution for panel mounting. Application areas Electrical panels Industrial panels Backup power systems Generation units Frequency control in laboratories and test facilities
Technical specifications
Operating voltage: 140-280 V AC Operating frequency: 50/60 Hz Operating power: <3VA Operating temperature: -20 °C ..... + 55 °C Display: 1 x 3 Measuring range: 1 Hz - 400 Hz Connection: terminal connection Cable diameter: 2.5 mm2 Weight: 135 g Operating height: <2000 m |
Mounting: on DIN rail
