Level relay for steam boilers
- Regular price
- €31,20 €25,57 excl. VAT
- Regular price
-
€31,20 - Sale price
- €31,20 €25,57 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty
|

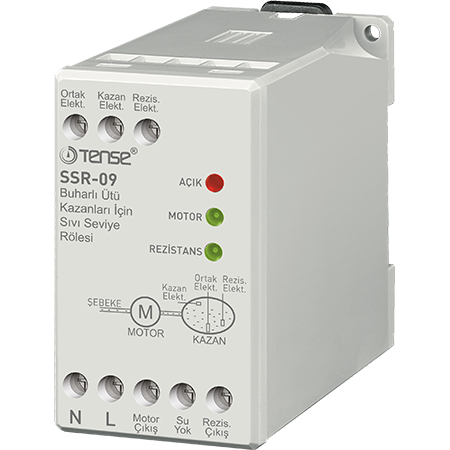

Relay for boiler water level control to be installed in water heating systems with the ability to turn off the electric resistance in case of water shortage, for single tank systems. SSR-09 TENDE The SSR-09 is an advanced relay for boiler water level control, designed to automatically manage water supply and protect the heater from the risk of running dry. The device monitors the presence of liquid in the tank and automatically turns the pump and heater on or off based on the water level.
Main advantages
Dry run protection for the boiler and heater extends the equipment's lifespan.
Automatic water level control: a relay activates the pump when the water level is low and deactivates it when the upper limit is reached.
Status indicators: built-in LEDs indicate pump and heater operation.
Easy installation: DIN rail mounting, convenient terminal connections.
Compact size and energy efficiency.
Wide voltage range (170-260 VAC): stable operation even in case of overvoltage.
Operating principle

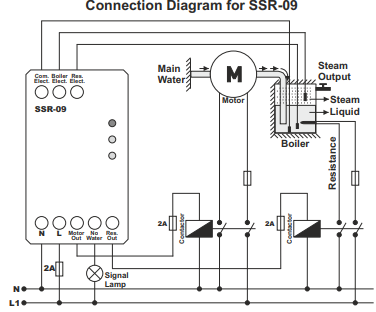

The SSR-09 relay uses electrodes to detect the water level:
When the water level falls below the set threshold, the device activates the pump to fill the tank.
When the water level reaches the upper limit, the pump automatically switches off.
If there is no water near the heater, the relay cuts off power to the heater to prevent overheating.
This logic ensures that the boiler always operates safely and economically.
Usage
Electric boilers and storage water heaters
Heating systems with storage tanks
Water supply stations and pumping units
Tanks and potable or domestic water tanks
Installation and connection

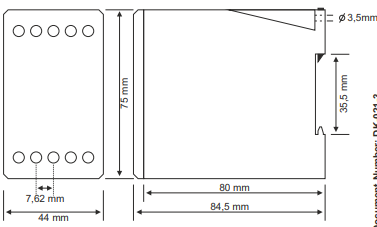

Installation takes place on a standard DIN rail inside the cabinet. Connection is made via screw terminals. The electrodes are installed in the tank at the required levels (upper and lower adjustment). |
For stable operation, it is recommended to use copper conductors with a cross-section of at least 2.5 mm².
