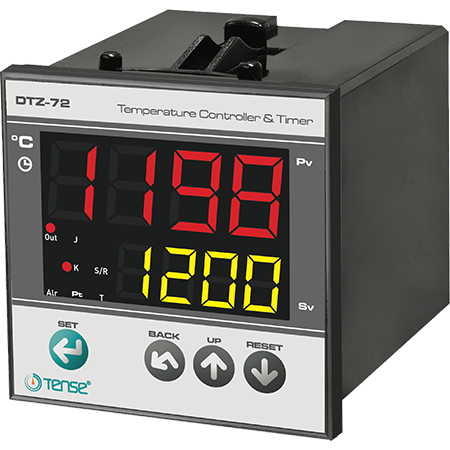

Microprocessor PID temperature controller with timer for panel mounting 1750°C

PID temperature controller for panel mounting with built-in timer, measurement range -100°C ... +1750°C, resolution / step 0.1ºC (made in Turkey, TENSE)

Control and monitoring of thermal processes in heating, air conditioning, and ventilation systems, building automation, industrial plants.

The temperature controller is implemented via on/off or PID control. The controller offers self-optimization that prevents overwriting process values.

• Automatic PID parameter adjustment

• Sensor type: T/C (J,K,T,S,R), Pt100
• Selectable control type: P, PI, PD, PID, or ON-OFF

• Automatic elimination of "overshoot" in PID mode

• Anti-windup

• Power-on delay for OUT in cooling mode

• Password protection

• EEPROM memory for saving settings

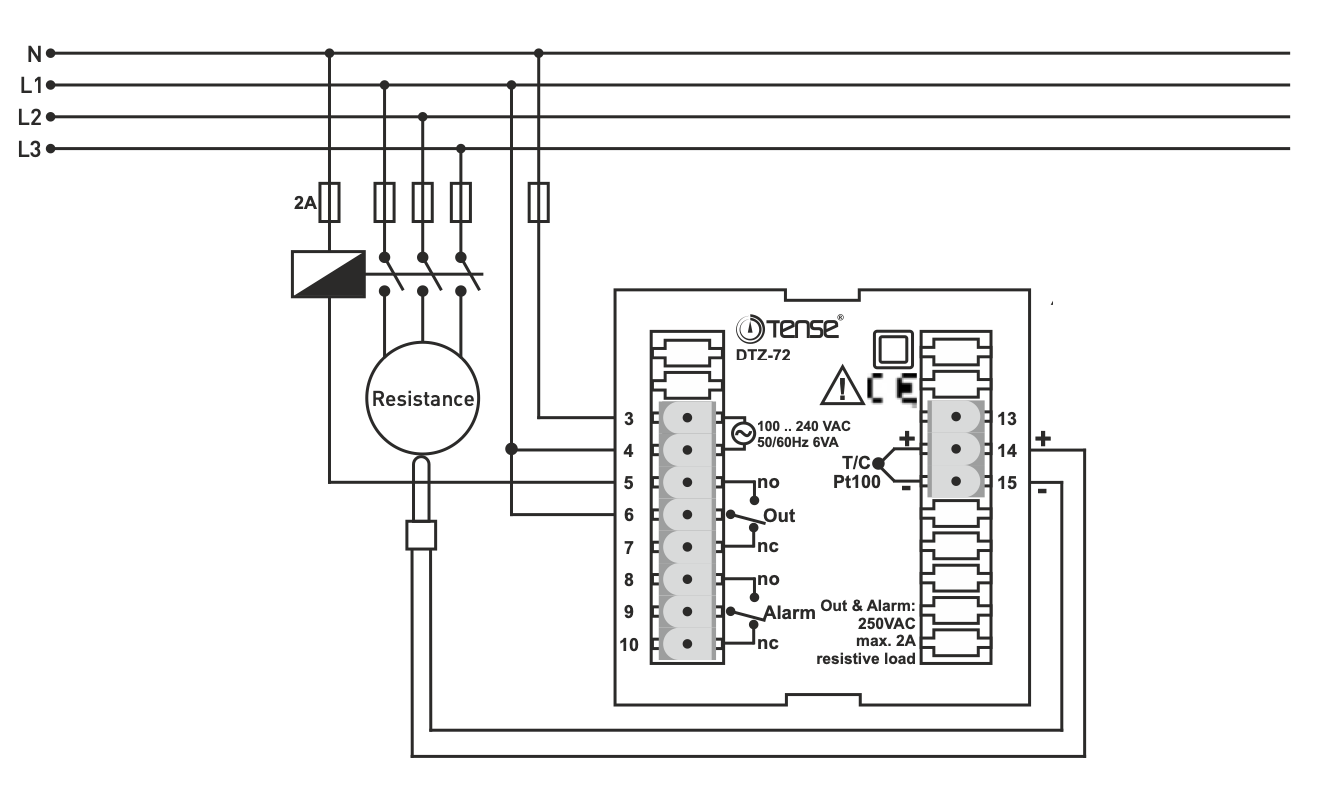

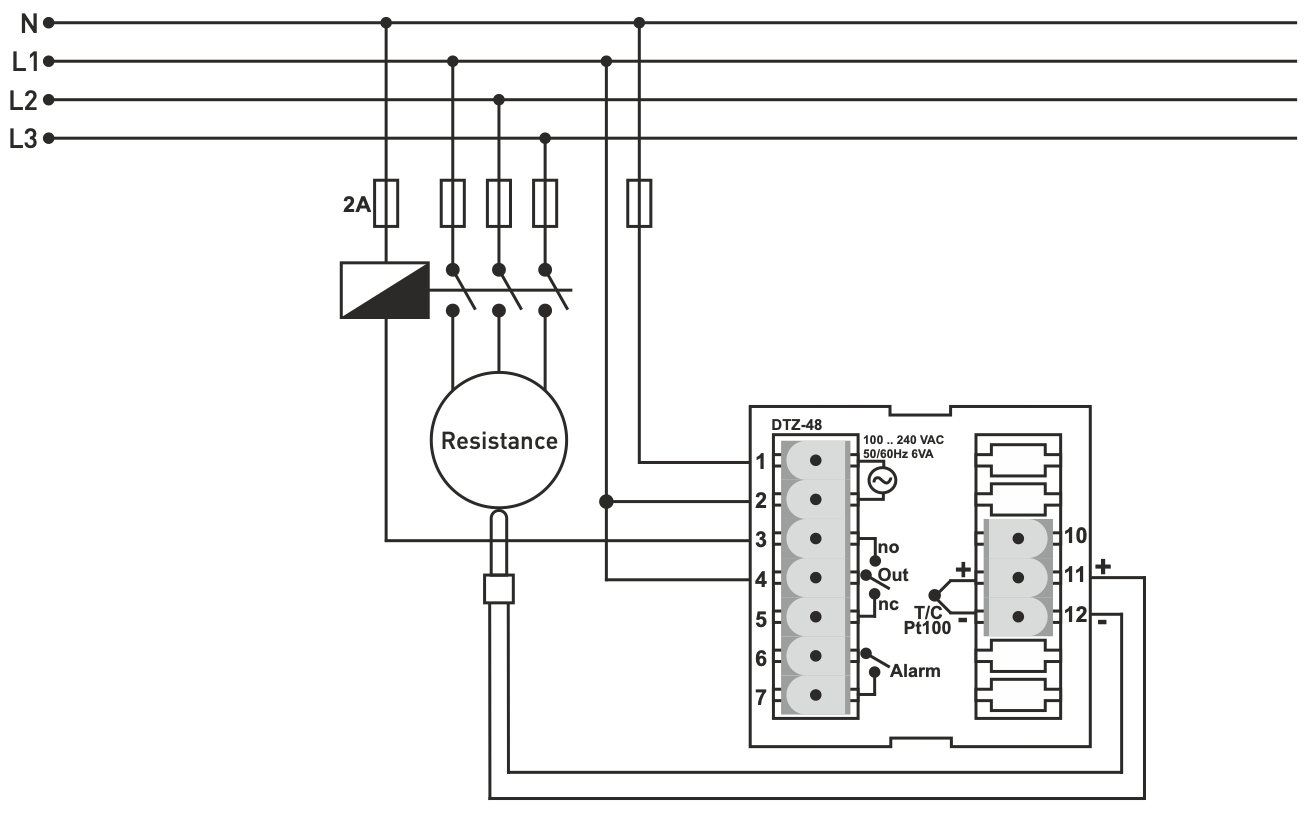

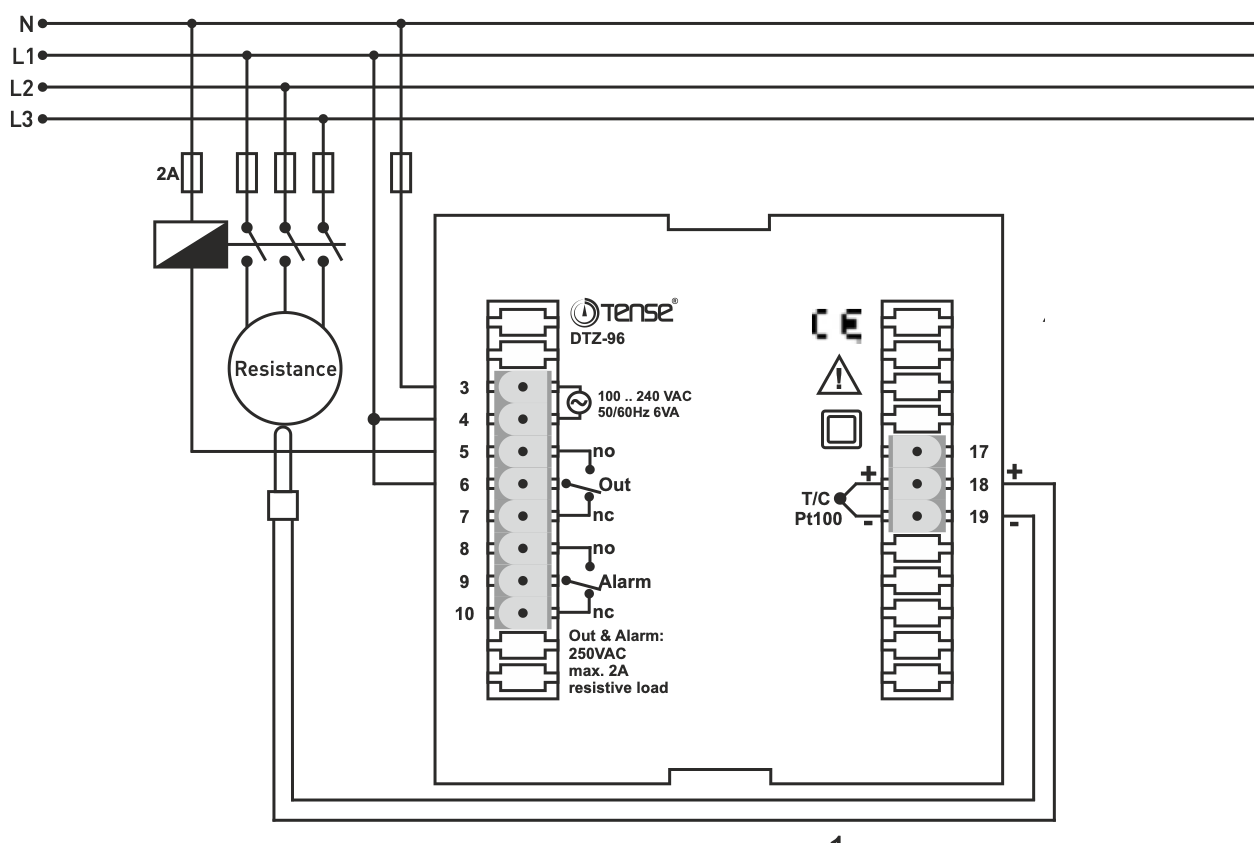

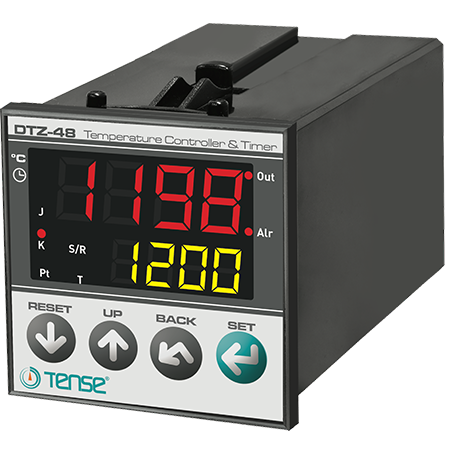

• Relay outputs OUT and ALARM (NO+NC) 250VAC, 2A (ALARM ON only for DTZ-48)

The measurement range depends on the sensor and can be set using the temperature controller's buttons.

The temperature controller's display is high contrast and can be read accurately even in unfavorable conditions. In addition to the control output, the temperature controller has an additional alarm relay that closes the voltage-free contact if the value is exceeded or not reached.

Don't forget to order our temperature sensors - type J Fe-Const thermocouple (metric 6/8) with temperature measurement range: -100 °C - +600 °C. It can come with a cable length of 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m, and 5 m.
