Gateway Modbus RS485 TCP/IP Interface Converter 230V
- Regular price
- €146,01 €119,68 excl. VAT
- Regular price
-
- Sale price
- €146,01 €119,68 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty
|

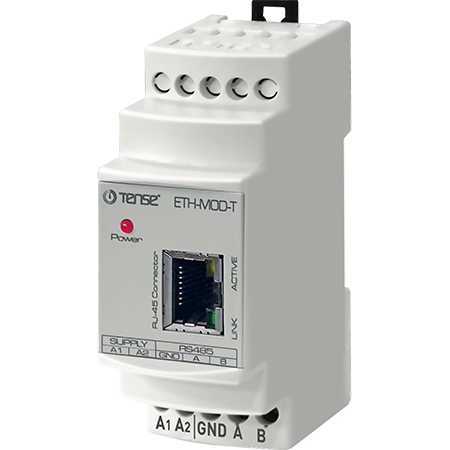

Protocol converter from RS485 to TCP IP/ ETHERNET / WAN / LAN. Gateway protocol converter for connecting devices with RS (MODBUS) port to a PC via local network or Internet connection. ETH-MOD-T. TENDE Turkey The ETH-MOD-T protocol converter produced by TENSE Turkey is a compact gateway for connecting any device with an RS-485 port to the local network, SCADA systems, and OPC Internet servers via modem.
The RS-485/Ethernet gateway has a number of features that allow it to be used for most analogs (e.g., ET-485, VTR-E, ET-485):

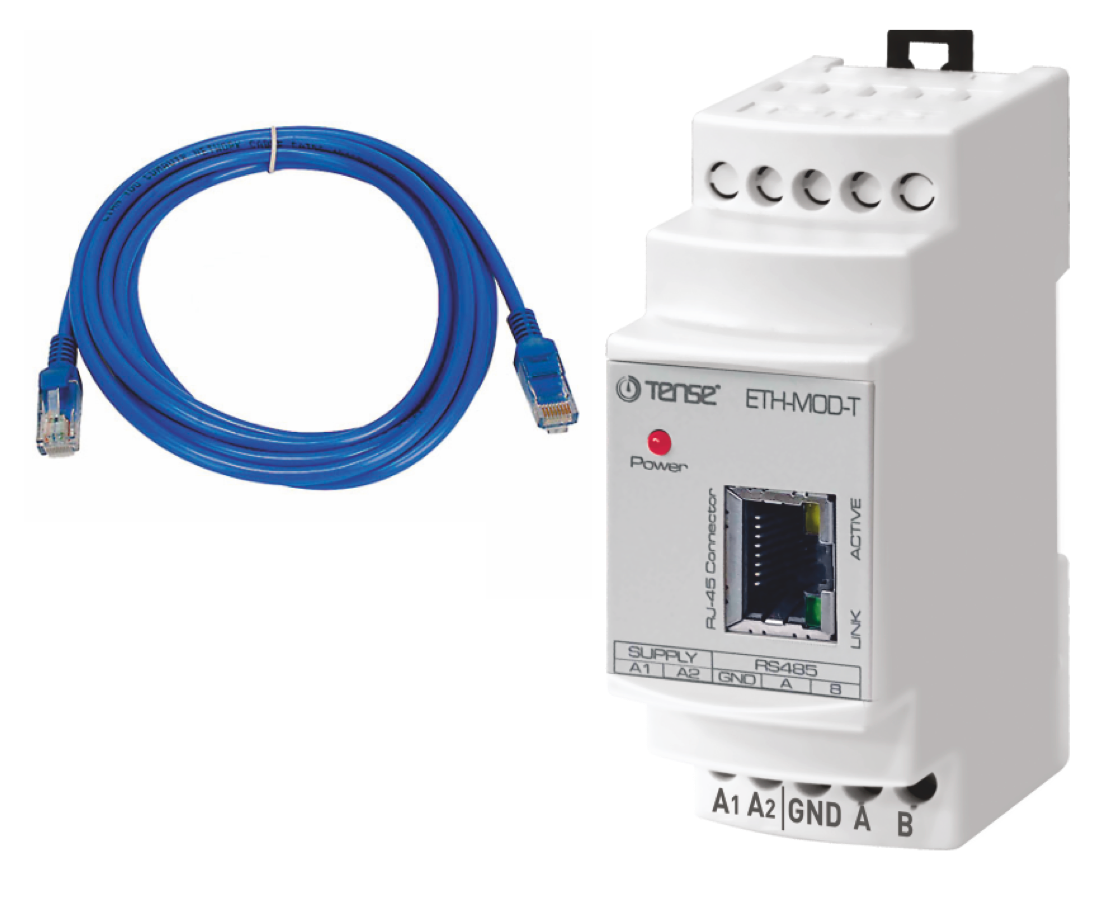

Compact size of the protocol converter - only 2 width modules - 35 mm; Quick installation of the gateway on a standard DIN rail; The converter is supplied with an Ethernet cable (2 m); Power supply voltage 220 V; Resistance to a wide range of power supply voltage fluctuations - 85 V ... 300 V Connection of up to 32 devices via RS485 / ModBus; LED indication of power / network connection / communication activity; High data transfer speed - up to 115,200 bps; 10/100BASE Ethernet network; Wide ambient operating temperature range: -20 °C ... +55 °C (in most cases no additional heating or cooling required); Free software for gateway installation.
|
The device works only with the MODBUS RTU protocol.
