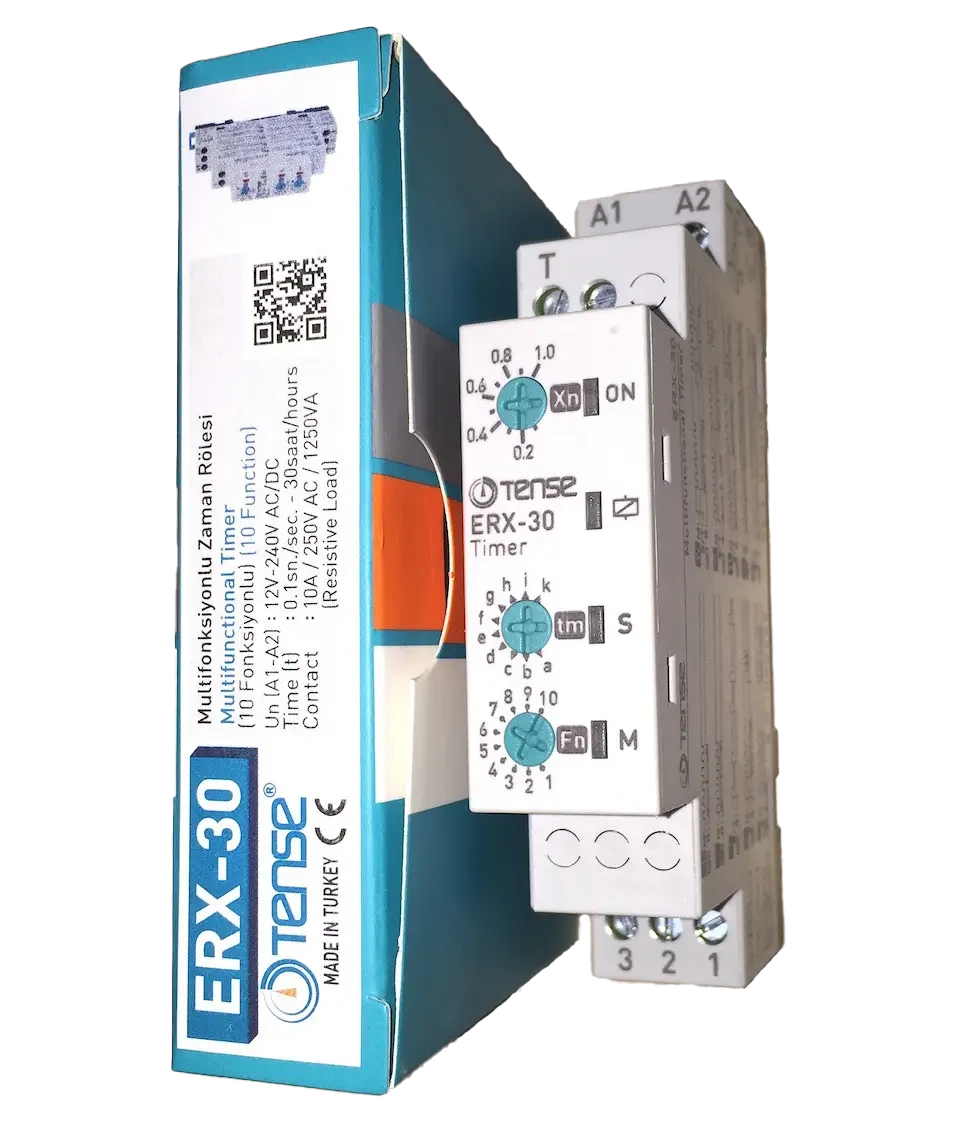

Vendor: TENSE

Multifunction relay time interval: 0.1 s - 30 h 12V-240V AC/DC

Barcode: ERX-30
€25,64
€25,64
210 in stock
  • Description
  • Payment methods
  • Warranty

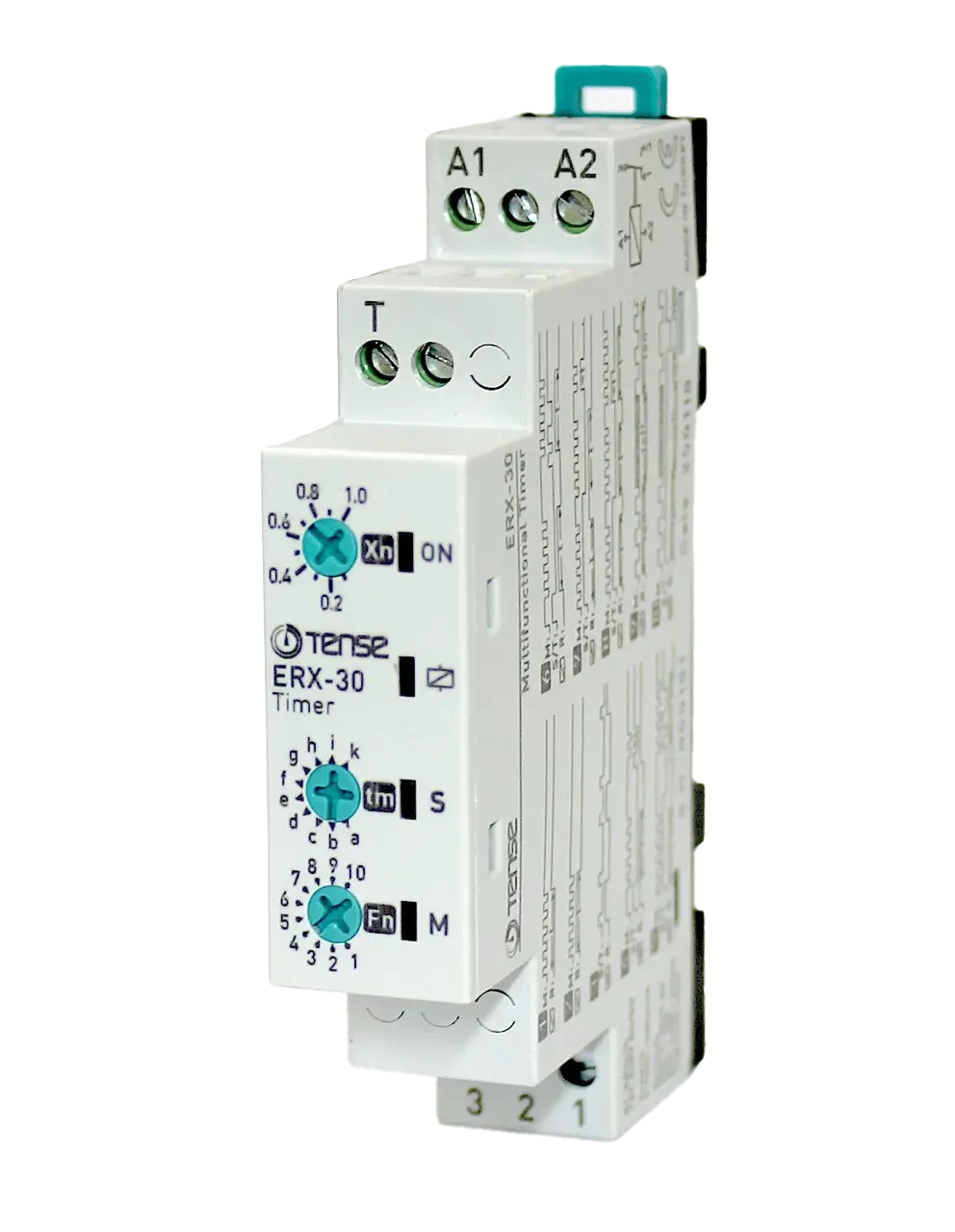

Multifunction timer relay (10 functions) 12V - 240V AC/DC with 1 switching contact.

The timer relay is multifunctional, designed to control time processes in production and home automation systems. This relay can be used in industrial plants - coffee or seed roasting, meat product cooking, packaging/packing lines, but also in houses or apartments, for example to control the bathroom fan or stair lighting.

The 10 integrated time functions cover a wide range of tasks: for example, to organize automatic ventilation processes, open/close windows, periodically turn on heating or ventilation, for lighting or rotating advertising signs, in washing machines, for control input bounce, for rotation - delay on start, delay on stop, delay on start and stop at the same time, etc.

It should be noted that this timer relay is also versatile in terms of performance: it can operate with alternating and direct current in the range from 12 to 240 volts!

The timer relay is mounted on a standard 35 mm DIN rail.

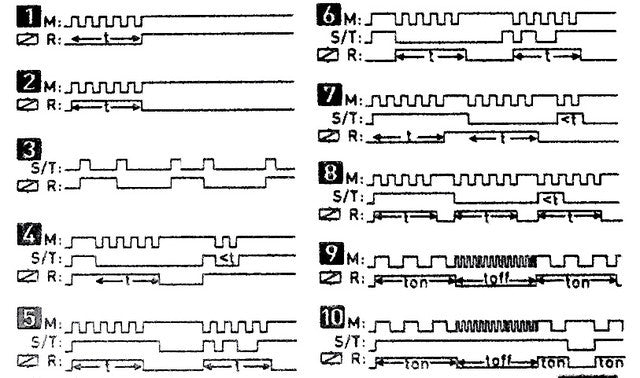

  • Bistable relay 12v 24V 48v 110v 230 AC DC
  • Delayed start 12v 24V 48v 110v 230 AC DC
  • Delayed return 12v 24V 48v 110v 230 AC DC
  • Flasher with pull-start 12v 24V 48v 110v 230 AC DC
  • Delayed start after switching and delayed return 12v 24v 48v 110v 230 DC
  • Remote flasher 12v 24V 48v 110v 230 DC
  • Delayed start after power-on and delayed return after command contact off (ON/OFF DELAY) 12v 24V 48v 110v 230 AC DC
  • Pulse generator 12v 24V 48v 110v 230 AC DC
  • Falling edge SINGLE SHOT 12v 24V 48v 110v 230 AC DC
  • Delayed return after SINGLE SHOT 12v 24V 48v 110v 230 AC DC

The universal timer relay ERX-30 easily replaces the more expensive analogs on the market - E1ZM10, MUR3, MXR1, IZT, E1ZMQ10, MFZ12-230V, ZR-67-BAT, CRM-91H, PCU-511, PCU-520, RF-520, 810.230.00001, 83.02.0.240, PCA-511, RF-511, REV-201, REV-120, CT-MHD, THC-M1, PCU-501, PCU-530, PCM-10, 600XU-A-1-CU, BMR TRF10, CRM-91H /UNI , MCR-MB-003, MCR-MA-003
