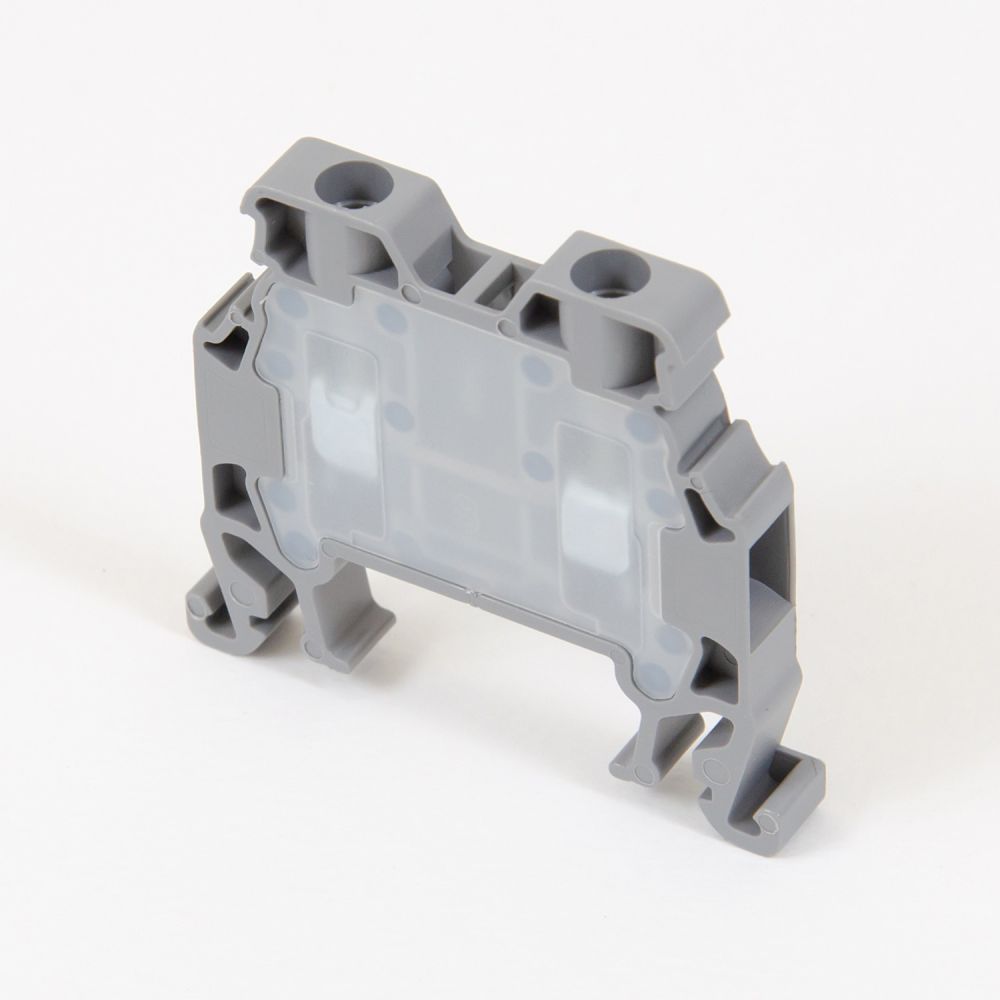

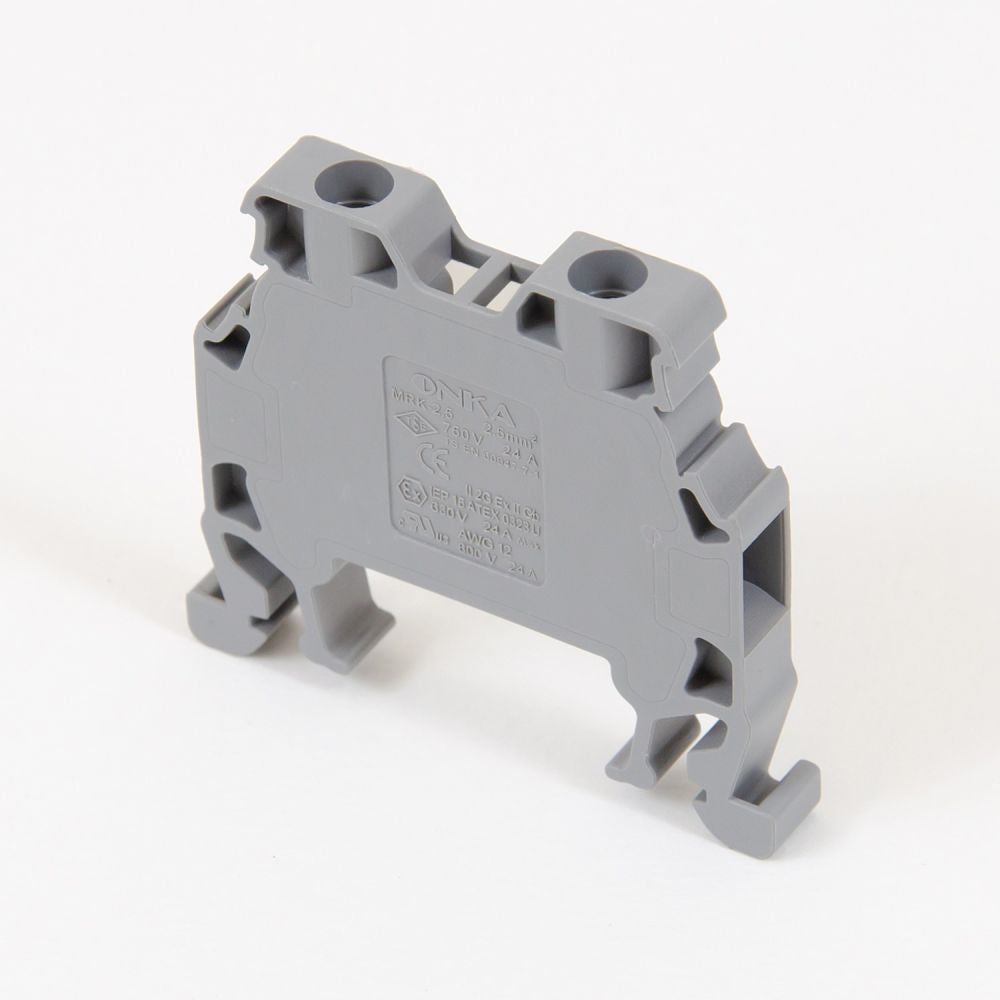

ONKA 1.5 mm2 Connector for screw rail terminal block terminal for 2-wire DIN rail gray, 1010002
- Regular price
- €0,40 €0,33 excl. VAT
- Regular price
-
- Sale price
- €0,40 €0,33 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Threaded connector for busbar / 2-wire DIN rail terminal gray, ONKA, made in Turkey
ONKA compact installation rail couplers offer great possibilities to connect any wire of different cross-sections. The transparent housing allows easy checking of the correct wire arrangement. The original ONKA quick couplers represent installation convenience and 100% connection reliability.
Technical parameters
Single wire cross-section connected up to: 1.5 mm2
Color: gray
Main housing insulating material: polyamide (PA6.6)
Contact/bridge material: steel/copper CK45
Torque: 0.4 Nm
Connection position: side / side
Cable strip length: 10 mm
Type of electrical connection: screw terminal
Rated voltage: 750 V
Rated current: 17.5A
Operating temperature from: -40°C
Operating temperature up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
