ONKA 16mm2 Connector for screw rail terminal block terminal for 2-wire DIN rail gray, 1010052
- Regular price
- €1,92
- Regular price
-
- Sale price
- €1,92
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty

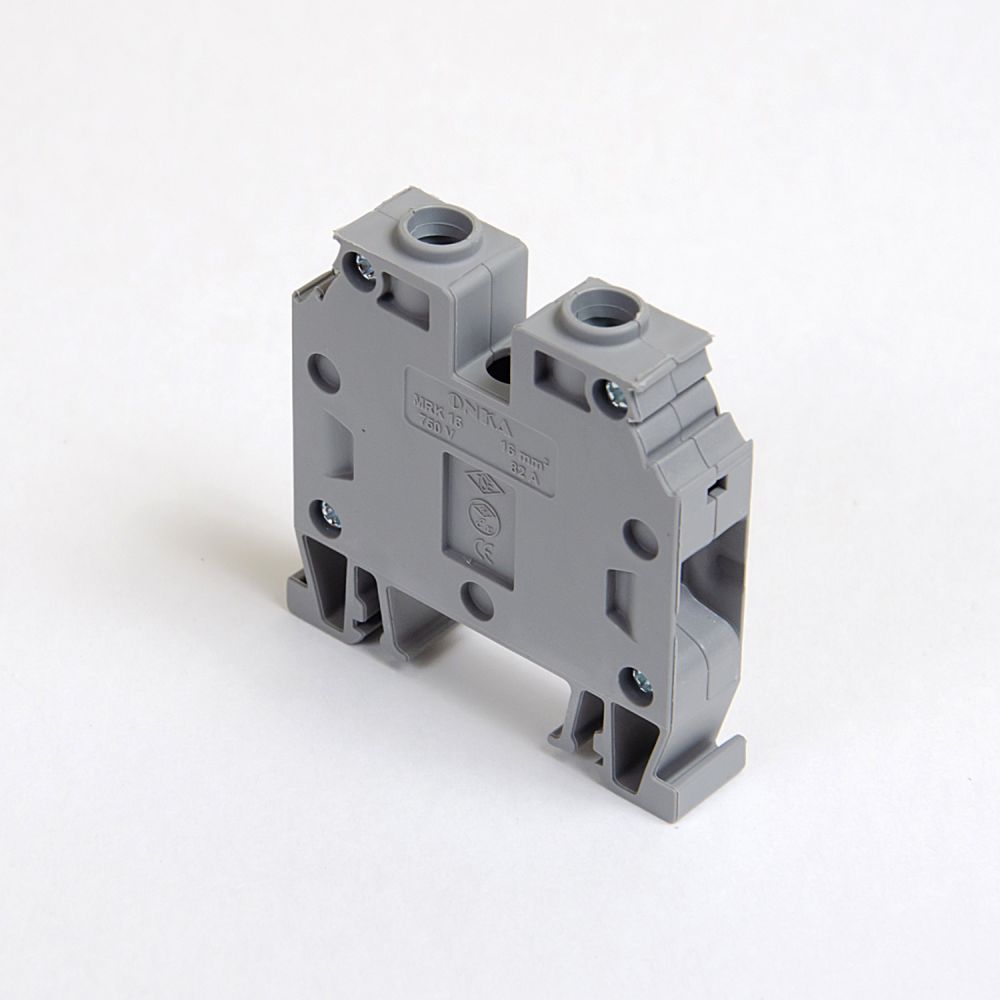

Threaded connector for busbar / clamp for 2-wire DIN rail gray, ONKA, made in Turkey
ONKA compact installation rail couplers offer great possibilities to connect any wire of different sections. The transparent housing allows easy verification of the correct wire arrangement. The original ONKA quick couplers represent installation convenience and 100% connection reliability.
Technical parameters
Single connected wire section up to: 16 mm2
Color: gray
Main housing insulating material: polyamide (PA6.6)
Contact/bridge material: steel/copper CK45
Torque: 2.0 Nm
Connection position: side / side
Cable strip length: 18 mm
Type of electrical connection: screw clamp
Rated voltage: 750V
Rated current: 76A
Operating temperature from: -40°C
Operating temperature up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
