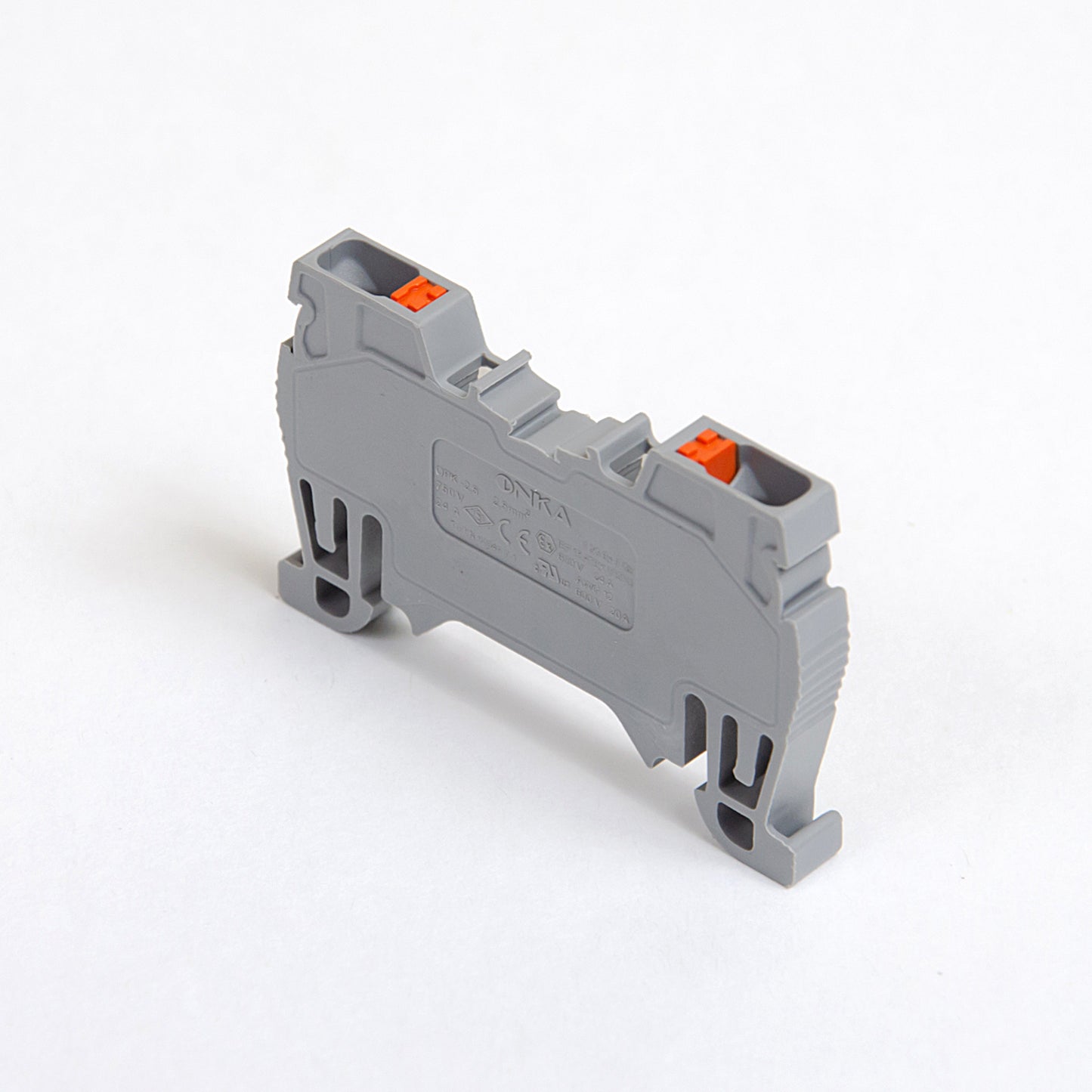

Spring connector for busbar / terminal for 2-wire DIN rail, retractable contact, gray, ONKA, made in Turkey

ONKA compact installation rail couplers offer great possibilities to connect any wire of different cross-sections. The transparent housing allows easy checking of the correct wire arrangement. The original ONKA quick couplers represent installation convenience and 100% connection reliability.

Technical parameters

Single connected wire section up to: 2.5 mm2
Color: gray
Main housing insulating material: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top / top
Cable strip length: 9 mm
Type of electrical connection: spring clamp / retractable contact
Rated voltage: 750V
Rated current: 24A
Operating temperature from: -40°C
Operating temperature up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
