ONKA 25mm2 Connector for screw rail terminal block terminal for 2-wire DIN rail blue, 1010065
- Regular price
- €2,07 €1,70 excl. VAT
- Regular price
-
- Sale price
- €2,07 €1,70 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

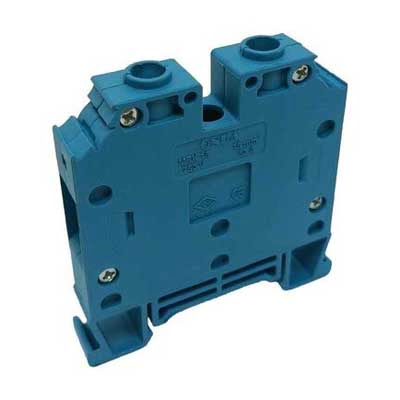

Threaded connector for busbar / terminal for 2-wire DIN rail, blue, ONKA, made in Turkey
The ONKA coupler/terminal is a reliable solution for those seeking functional and durable elements in electrical installations.
Made with high-quality materials, the connector ensures prolonged use and resistance to mechanical damage.
Technical parameters
Single wire cross-section connected up to: 25 mm2
Color: blue
Main housing insulating material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 2.0 Nm
Connection position: side / side
Cable strip length: 18 mm
Type of electrical connection: screw terminal
Rated voltage: 750V
Rated current: 101A
Operating temperature from: -40°C
Operating temperature up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
