ONKA 35mm2 Connector for screw rail terminal block clamp for 2-wire DIN rail gray, 1010082

Online payment by card – after completing your order, you will be redirected to the payment page and receive a payment confirmation via email.

Cash on delivery – payment, according to the terms of sale, is made to the courier of the transport company.

Bank transfer – You will receive a proforma invoice by email no later than the next business day, containing the account number to use for payment.

On invoice with deferred payment – this payment method is available to partners who have signed a framework agreement with our company.

If you wish to use one of the latter two payment methods, please contact our account manager, who will provide you with instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In the event of a complaint, there are no costs for returning the goods.

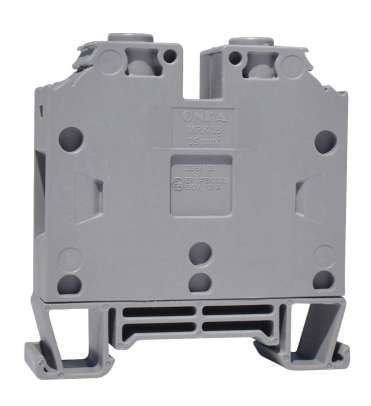

Threaded connector for busbar / 2-wire DIN rail terminal gray, ONKA, made in Turkey

ONKA compact installation rail couplers offer great possibilities to connect any wire of different sections. The transparent housing allows easy verification of the correct wire arrangement. The original ONKA quick couplers represent installation convenience and 100% connection reliability.

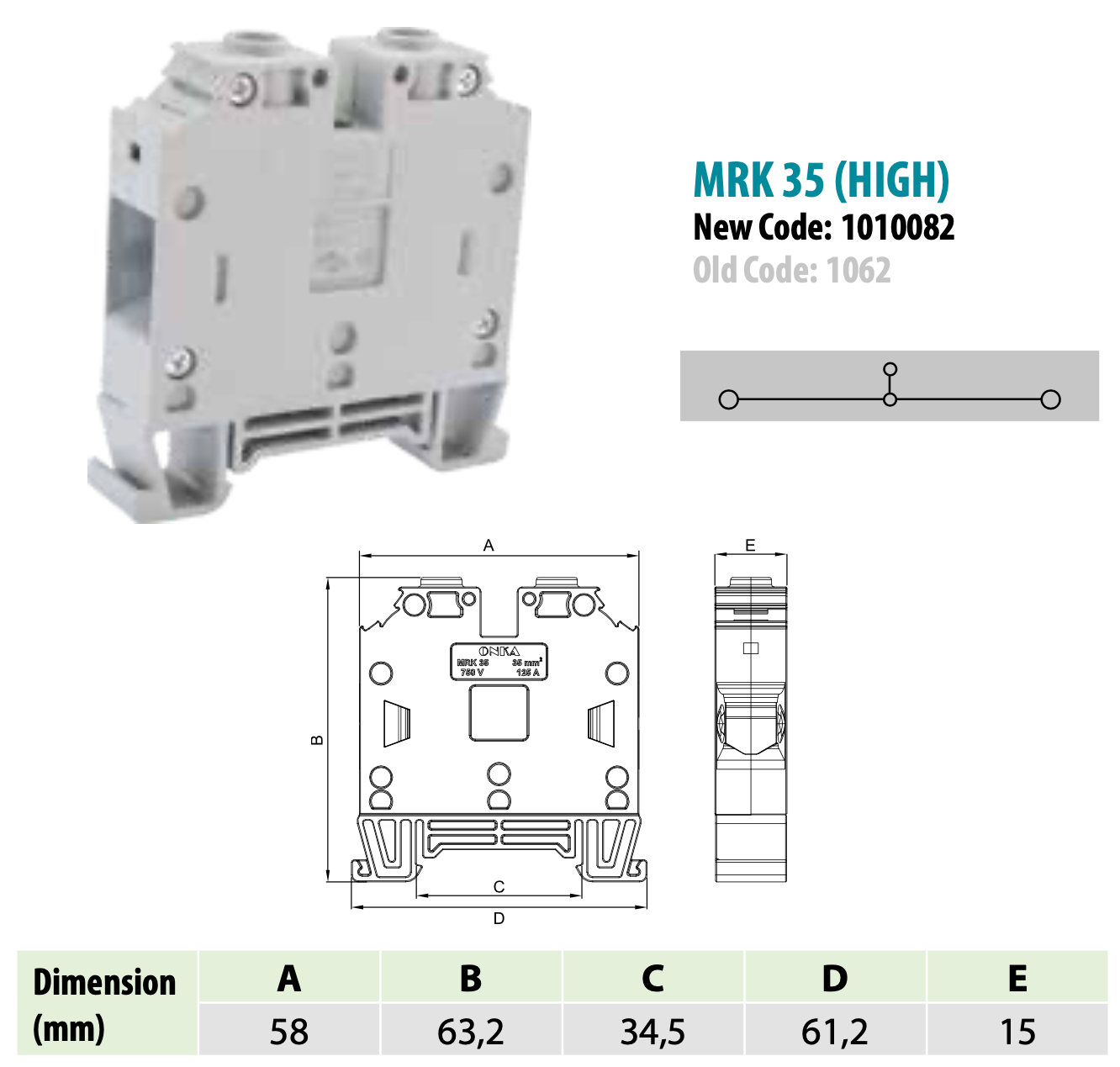

Technical parameters

Single wire section connected up to: 35 mm2
Color: gray
Main housing insulating material: polyamide (PA6.6)
Contact/bridge material: steel/copper CK45
Torque: 2.0 Nm
Connection position: side / side
Cable strip length: 18 mm
Type of electrical connection: screw terminal
Rated voltage: 750 V
Rated current: 125A
Operating temperature from: -40°C
Operating temperature up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
