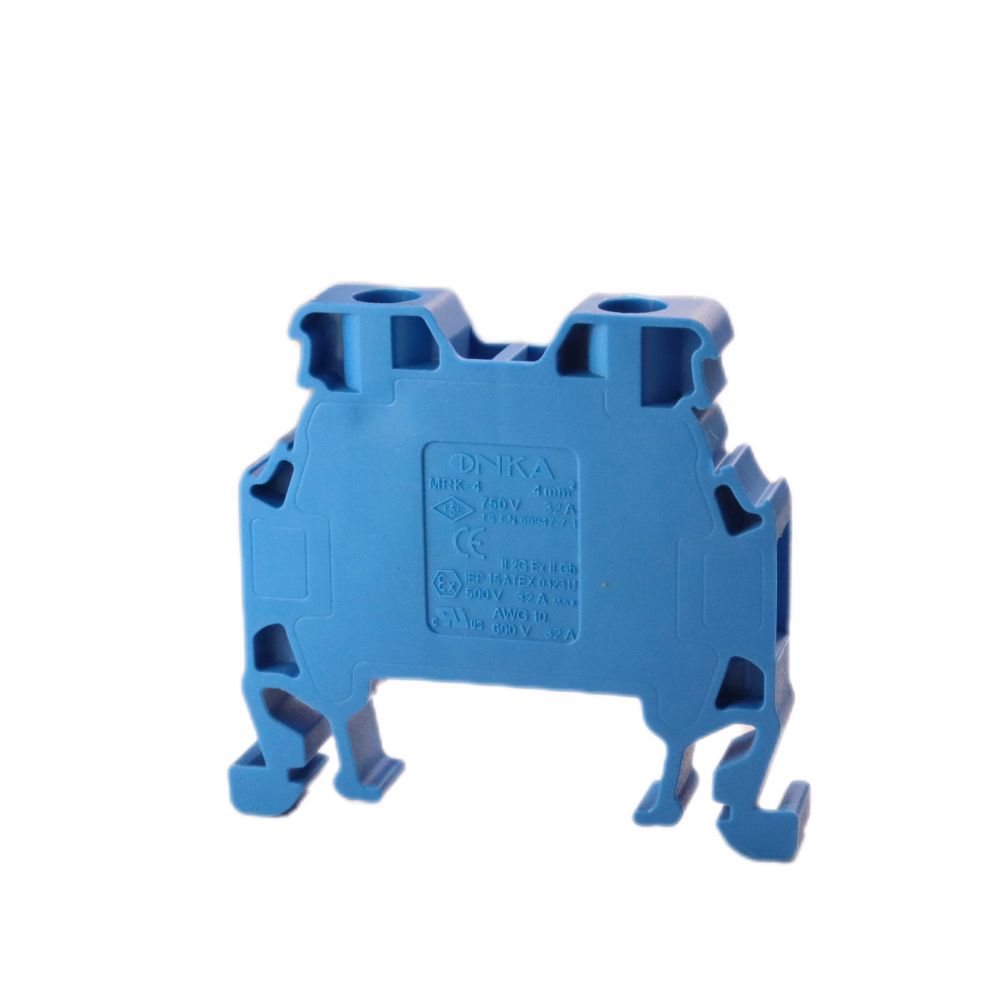

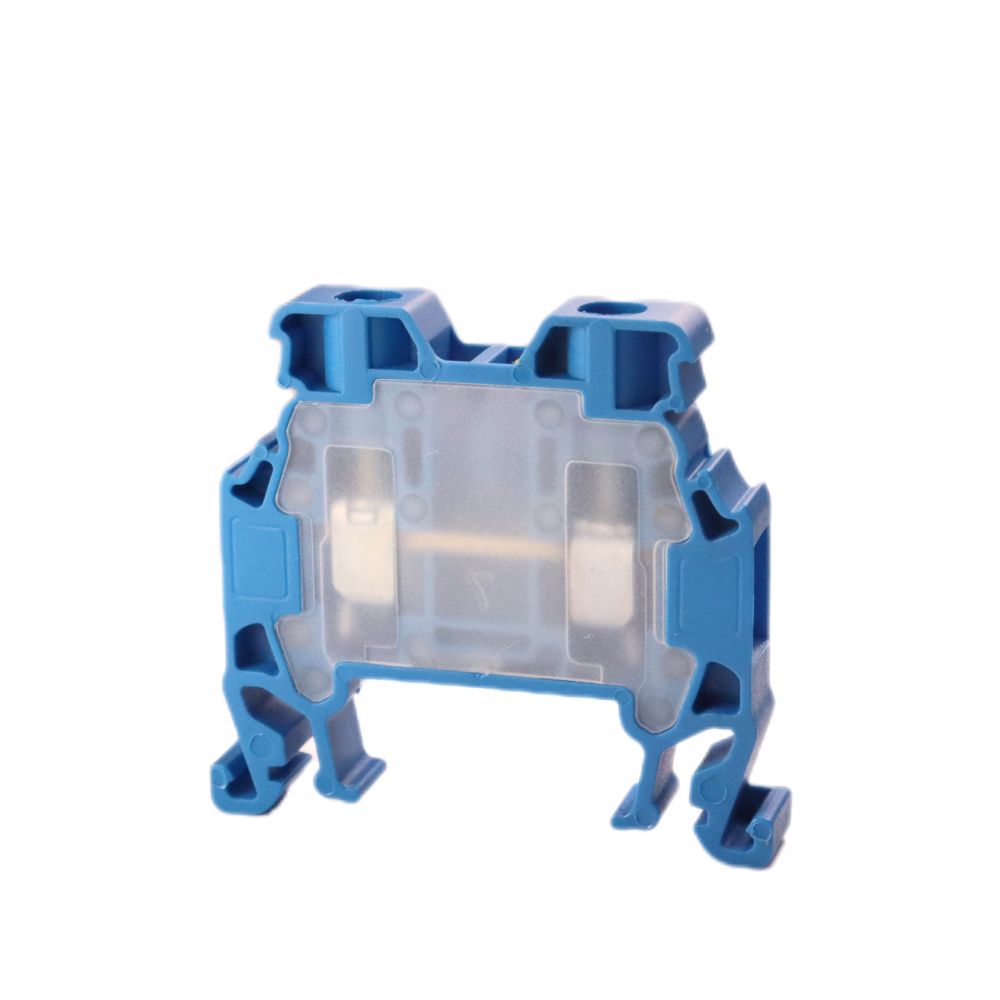

Threaded connector for busbar / terminal for 2-wire DIN rail, blue, ONKA, made in Turkey

The ONKA coupler/terminal is a reliable solution for those seeking functional and durable elements in electrical installations.
Made with high-quality materials, the connector ensures prolonged use and resistance to mechanical damage.

Technical parameters

Single wire cross-section connected up to: 4 mm2
Color: blue
Main housing insulating material: polyamide (PA6.6)
Contact/bridge material: steel/copper CK45
Torque: 0.5 Nm
Connection position: side / side
Cable strip length: 10 mm
Type of electrical connection: screw terminal
Rated voltage: 750V
Rated current: 32A
Operating temperature from: -40°C
Operating temperature up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
