ONKA 50mm2 M8 Connector for screw terminal DIN rail with protective cover, blue, 1030034

Online payment by card – after completing your order, you will be redirected to the payment page and receive a payment confirmation via email.

Cash on delivery – payment, according to the terms of sale, is made to the courier of the transport company.

Bank transfer – You will receive a proforma invoice by email no later than the next business day, containing the account number to use for payment.

On invoice with deferred payment – this payment method is available to partners who have signed a framework agreement with our company.

If you wish to use one of the latter two payment methods, please contact our account manager, who will provide you with instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In the event of a complaint, there are no costs for returning the goods.

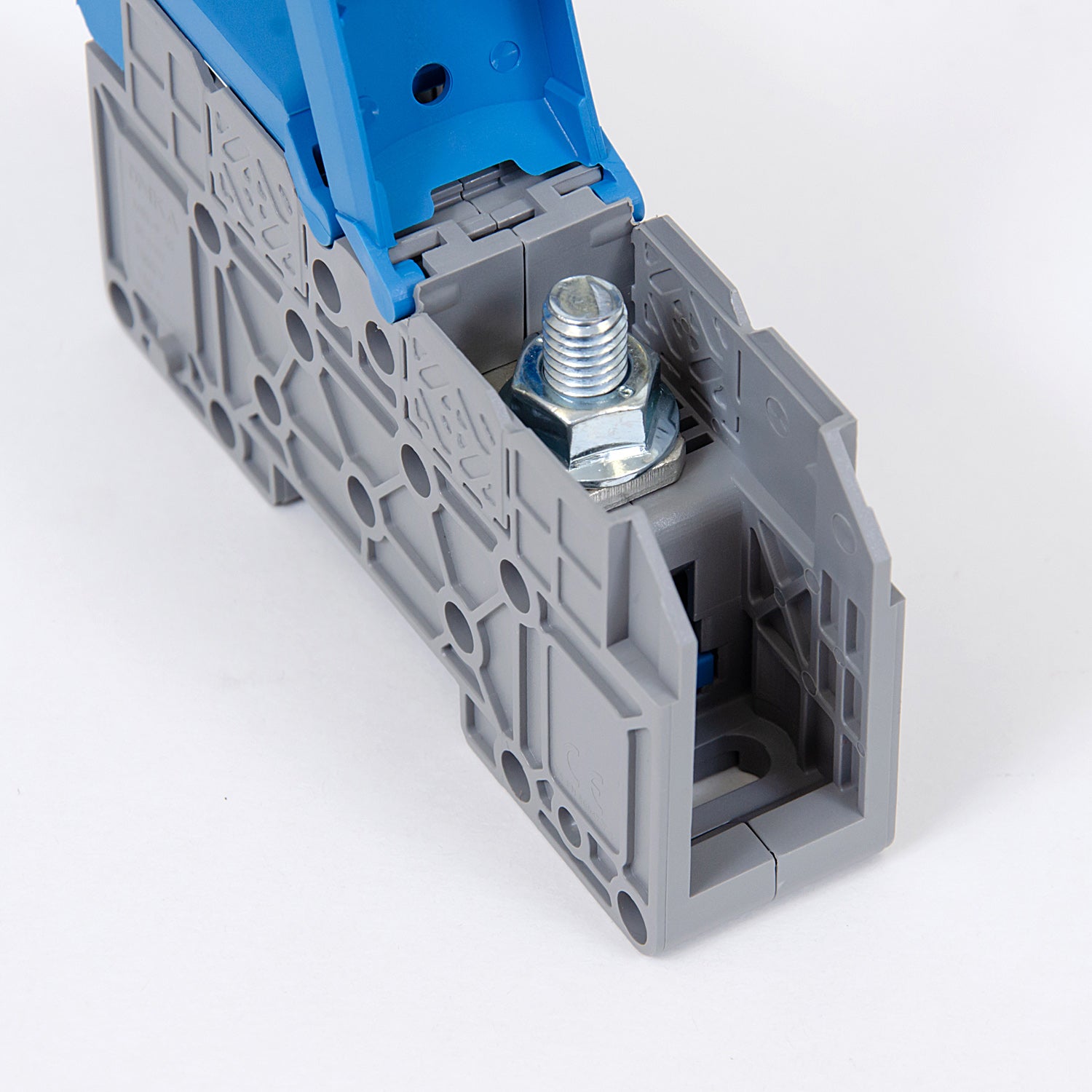

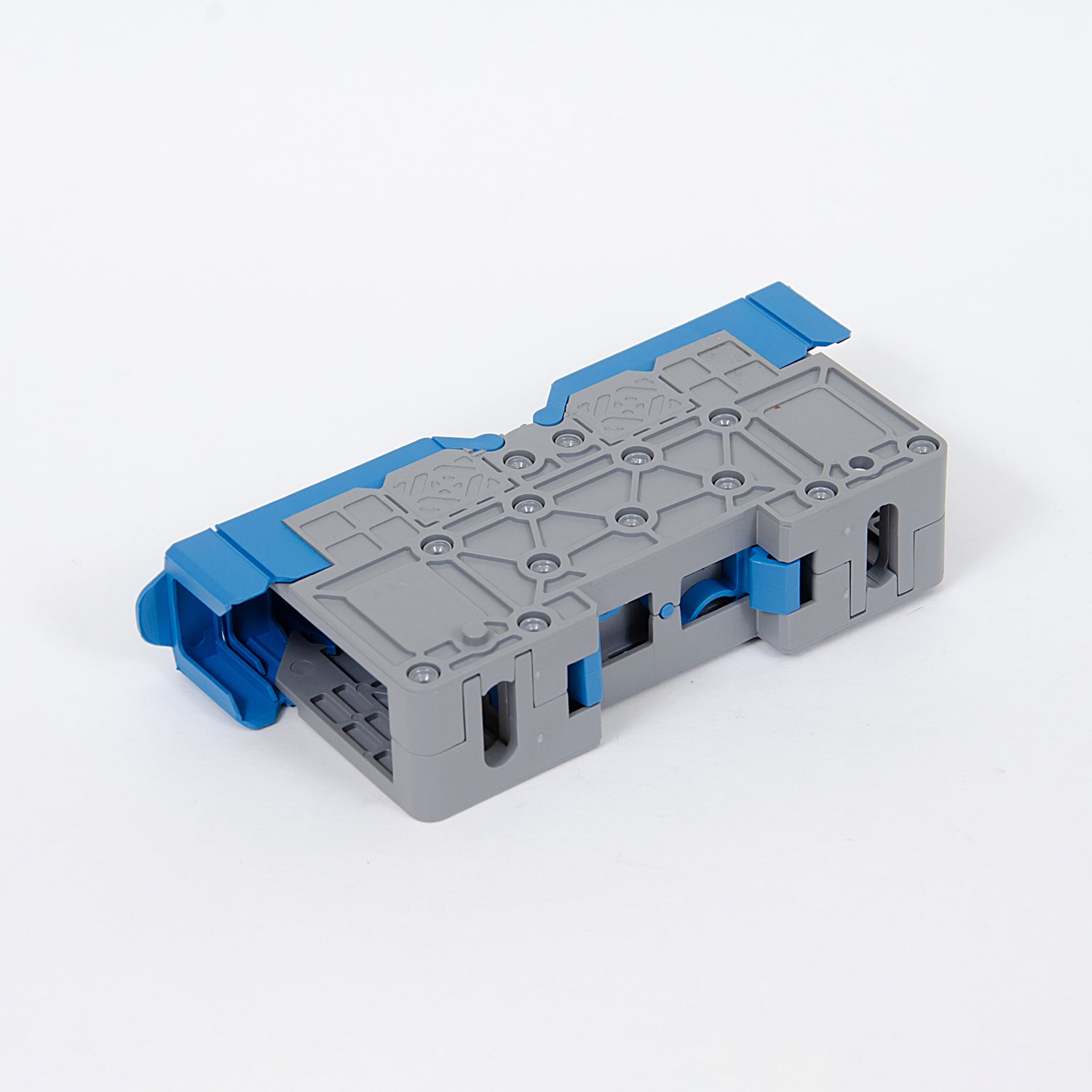

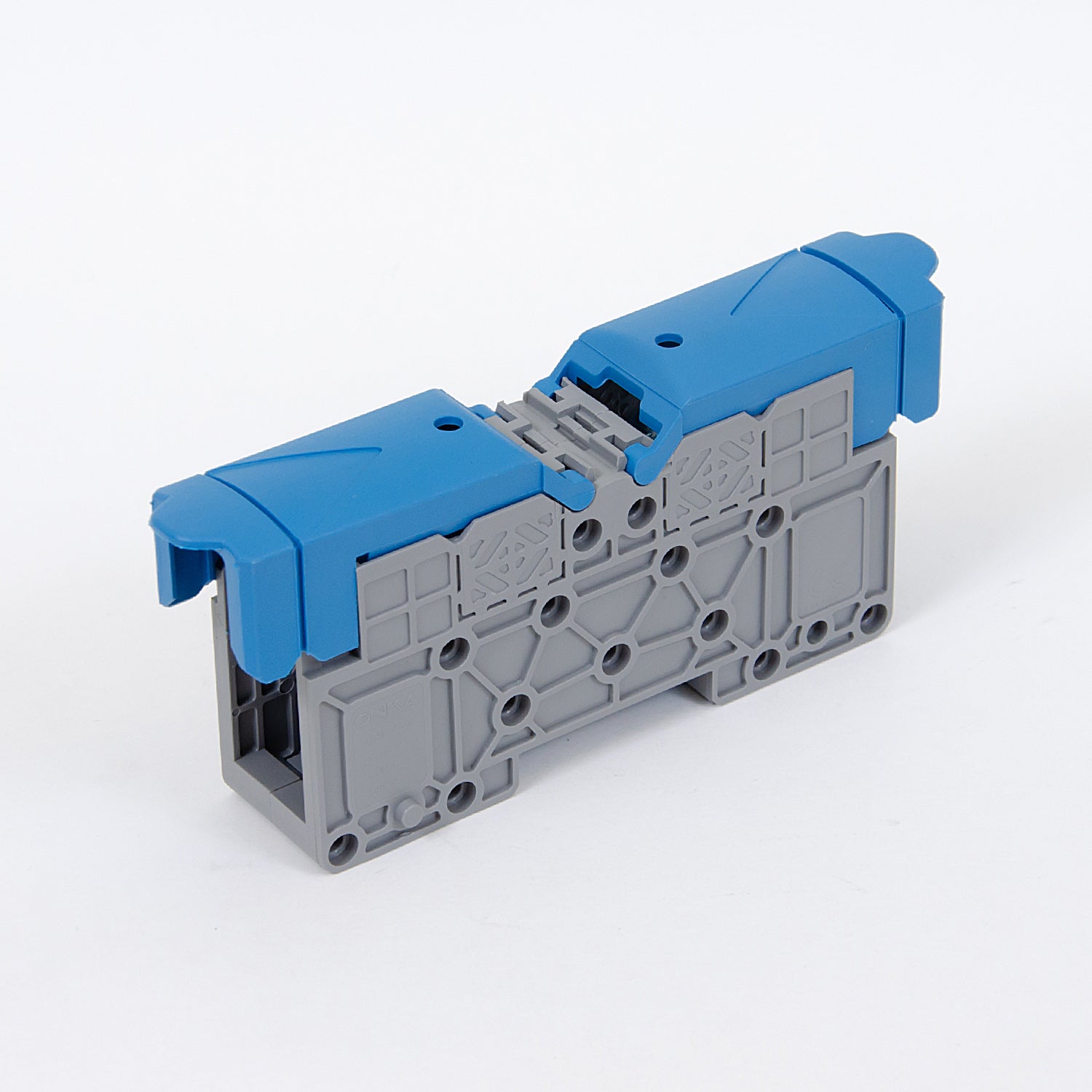

M8, 50mm2, threaded connector for busbar / terminal for DIN rail with protective cover, blue, ONKA, made in Turkey

ONKA compact installation rail connectors offer great possibilities to connect any wire of different sections. The transparent housing allows easy checking of the correct wire arrangement. The original ONKA quick connectors provide installation convenience and 100% connection reliability.

Technical parameters

Single wire section connected up to: 50 mm2
Color: blue
Main housing insulating material: polyamide (PA6.6)
Contact/bridge material: steel/copper CK45
Connection position: side / side
Rated voltage: 1000V
Rated current: 150A
Operating temperature from: -40°C
Operating temperature up to: 140°C
Mounting method: DIN 35 mm mounting rail
