ONKA 70mm2 M8 Connector for screw terminal DIN rail with protective cover, blue, 1030048
- Regular price
- €17,28 €14,16 excl. VAT
- Regular price
-
- Sale price
- €17,28 €14,16 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

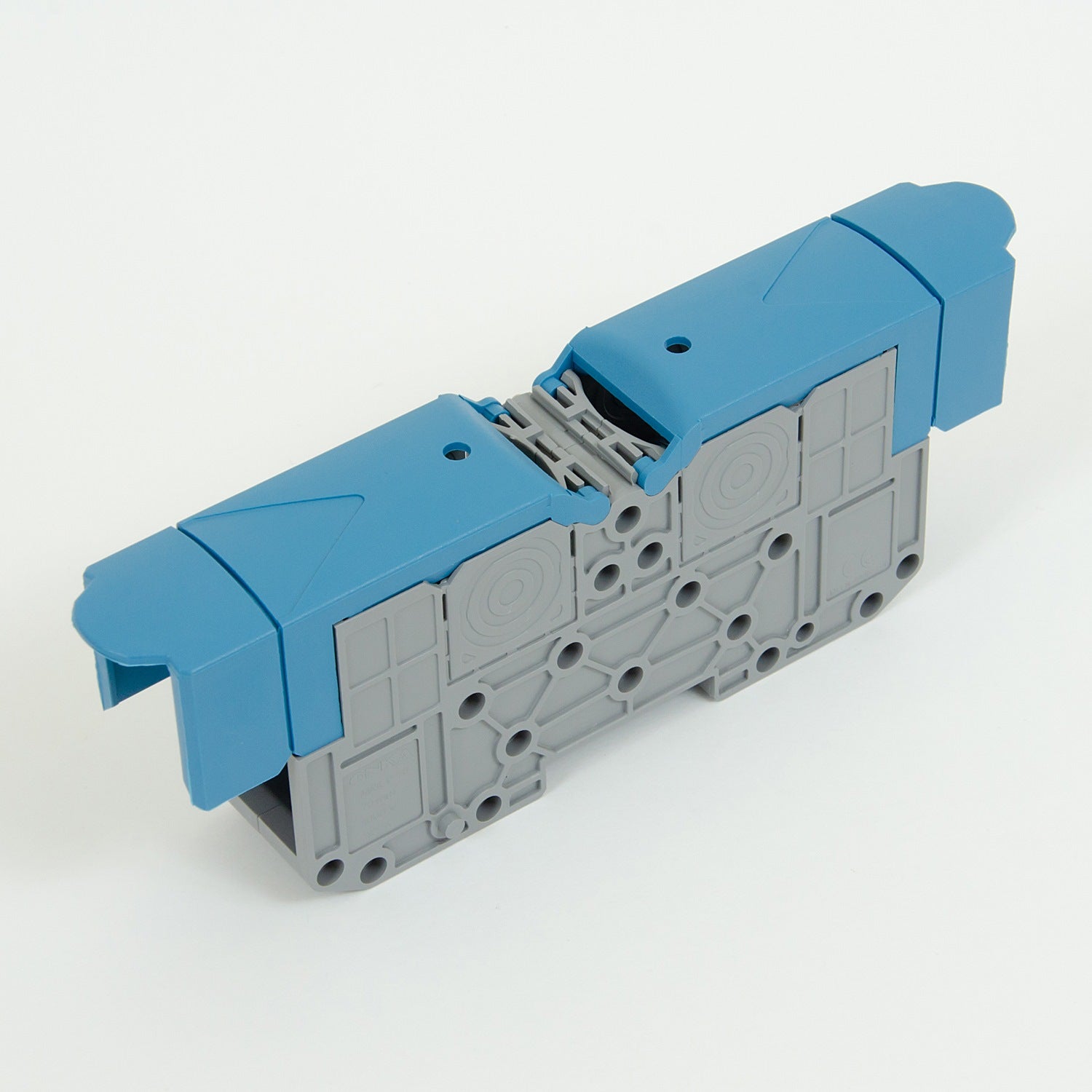

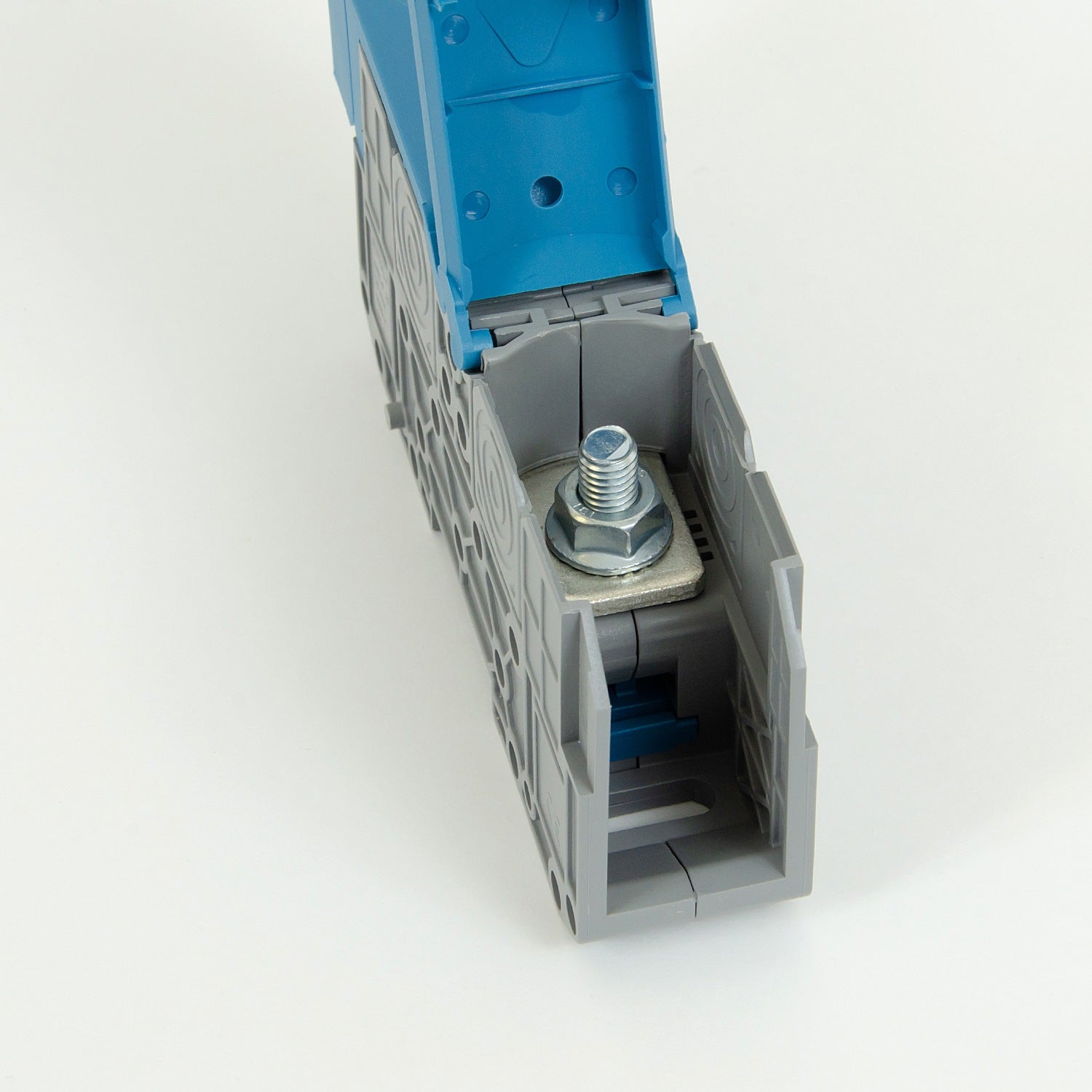

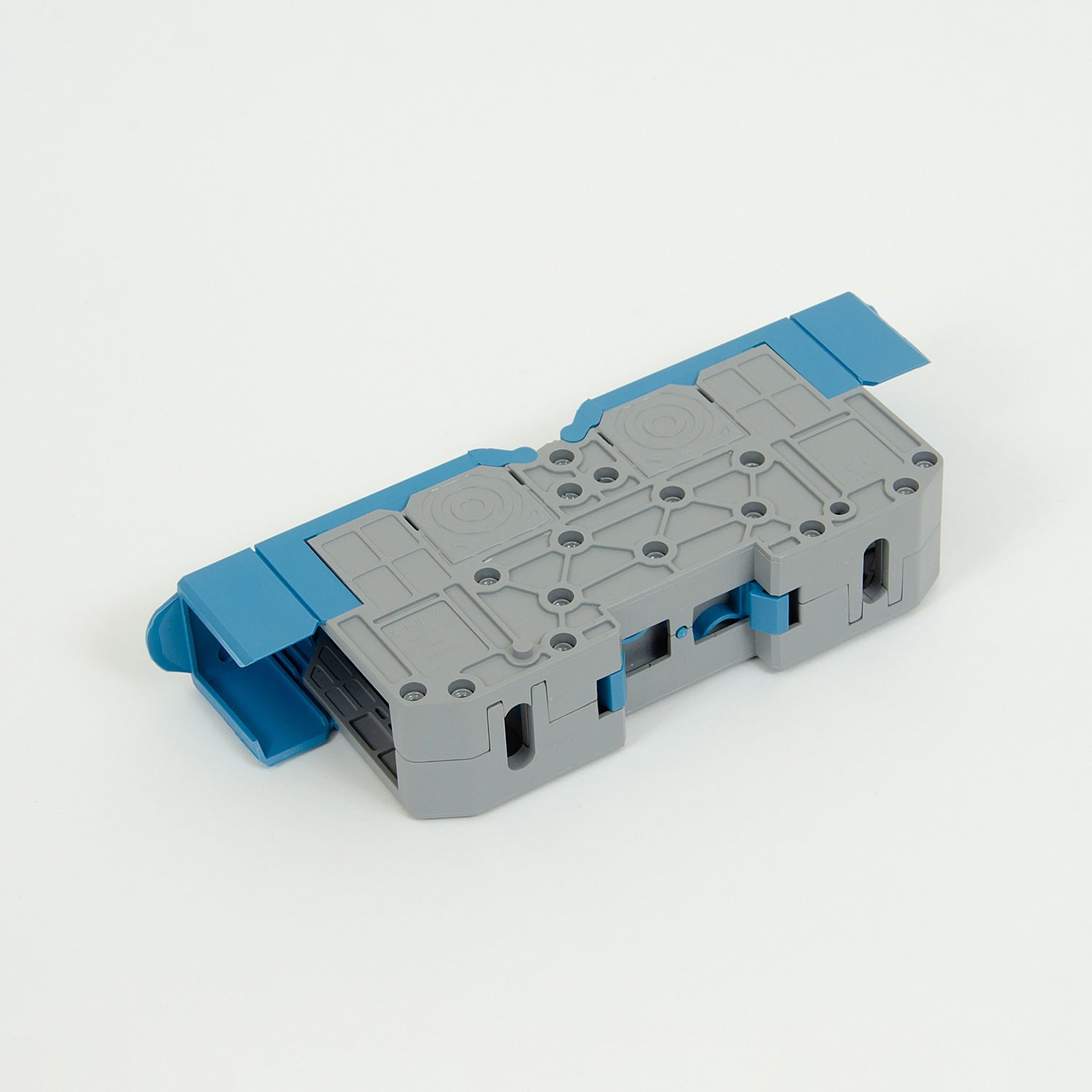

M8, 70mm2, threaded connector for busbar / terminal for DIN rail with protective cover, blue, ONKA, made in Turkey
ONKA compact installation rail connectors offer great possibilities to connect any wire of different sections. The transparent housing allows easy checking of the correct wire arrangement. The original ONKA quick connectors provide installation convenience and 100% connection reliability.
Technical parameters
Single wire section connected up to: 70 mm2
Color: blue
Main housing insulating material: polyamide (PA6.6)
Contact/bridge material: steel/copper CK45
Connection position: side / side
Rated voltage: 1000V
Rated current: 192A
Operating temperature from: -40°C
Operating temperature up to: 140°C
Mounting method: DIN 35 mm mounting rail
