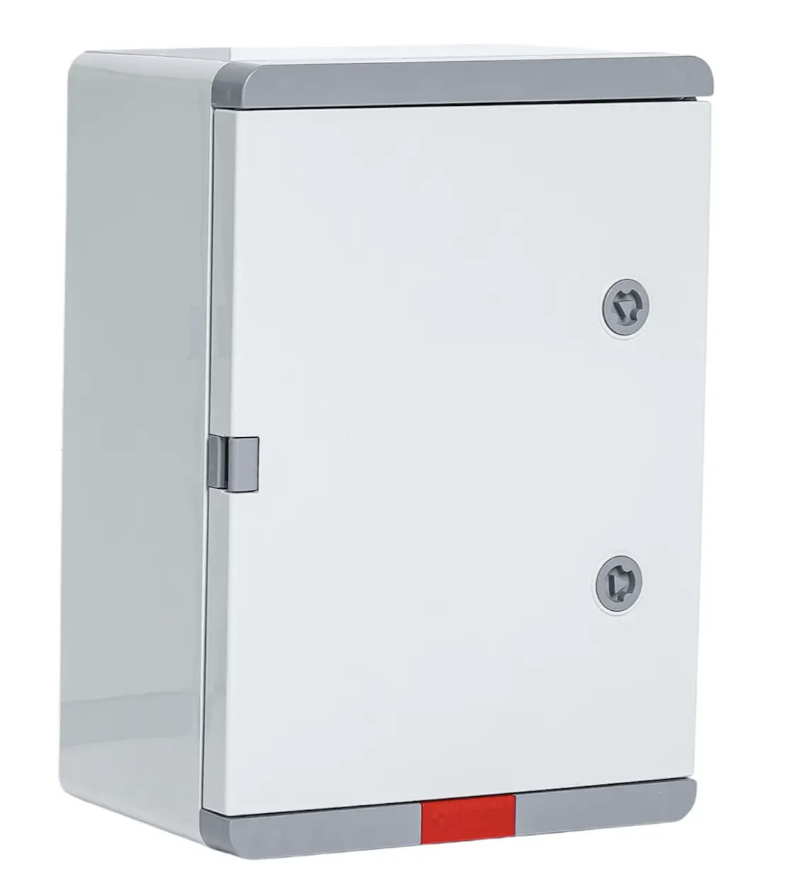

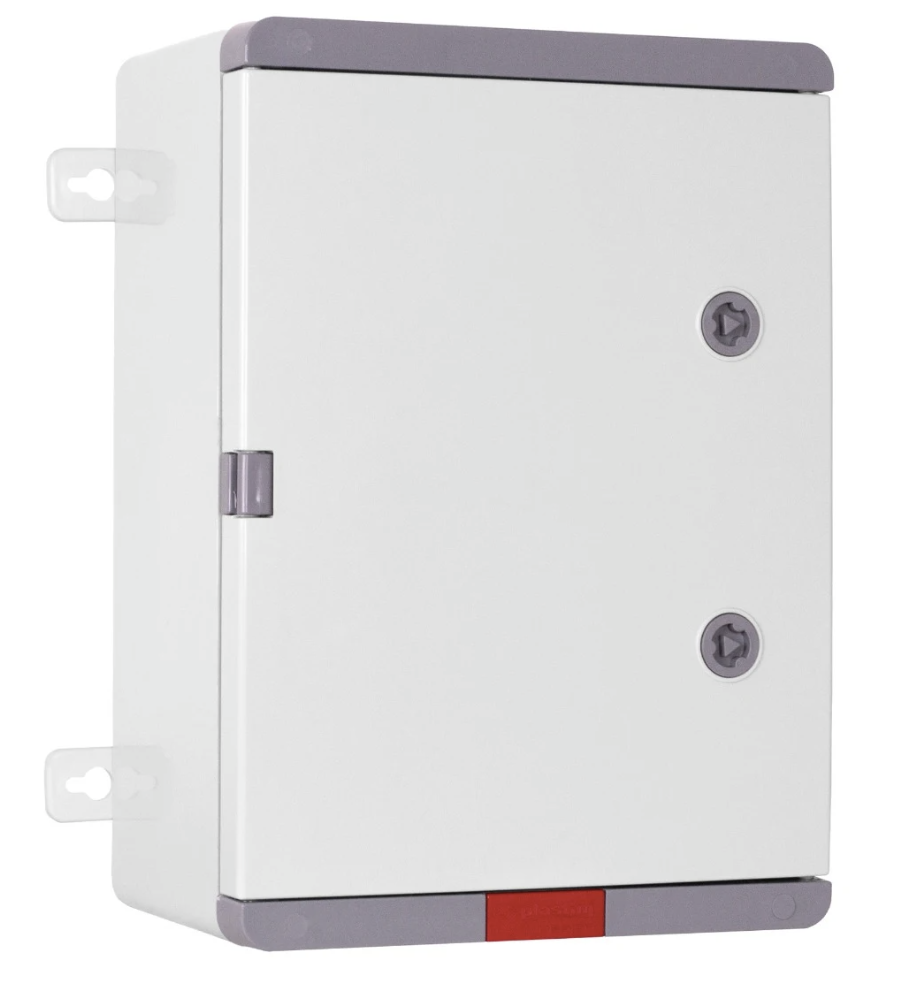

Sealed shockproof plastic case with IP67 protection and mounting panel, Plastim (Türkiye).
The IP67-rated plastic housing has several important advantages, especially for use in harsh environments:
High protection against humidity and dust:
The IP67 rating means the enclosure is completely protected from dust and can withstand brief immersion in water up to 1 metre deep for 30 minutes, making it ideal for installation in humid or dusty locations, such as outdoors, in industrial areas or near bodies of water.
Corrosion resistance:
Plastic is not subject to corrosion, unlike metal panels, which is particularly valuable in aggressive environments, such as near the sea, in chemical plants or in companies with high humidity.
Ease and simplicity of installation:
The plastic casing is much lighter than its metal counterpart, making it easier to transport and install, especially in hard-to-reach places.
Dielectric properties:
Plastic does not conduct electricity, which increases safety when working with electrical equipment and reduces the risk of short circuits.
UV resistance:
If you use a special plastic for ultraviolet rays, the shielding retains its properties for a long time even when constantly exposed to sunlight.
Technical features
Resistance to: chemicals, alkalis, oils, salts, etc.
Rated voltage: up to 690 V
Maximum current: up to 800 A
Operating temperature: -35°C + 65°C
Material: HB ABS

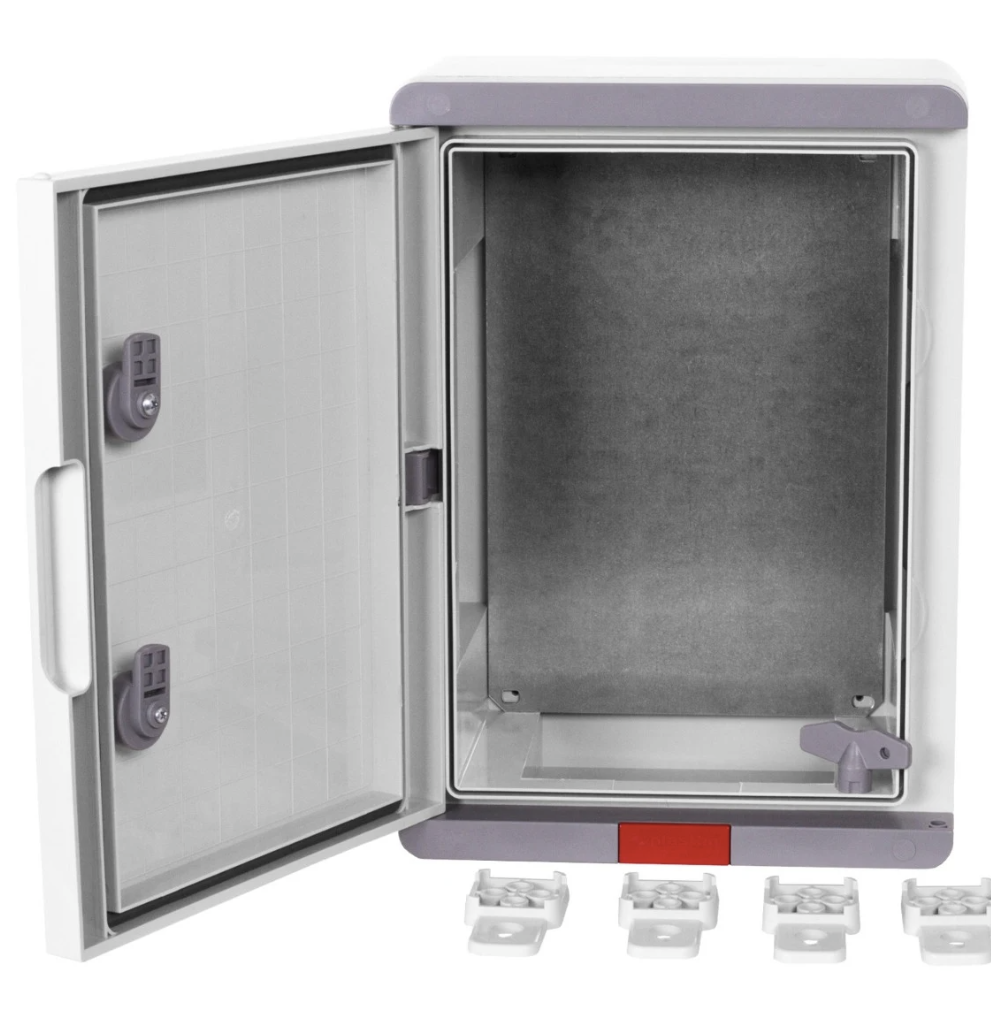

Mounting plate: 1mm galvanized steel
IP protection: IP67
IK Protection: IK08
Color: RAL7035 grey
Application examples
Humid and dusty environments
Electrical shielding in car washes, swimming pools, water parks, fountains.
Assembly boxes for the control of irrigation systems and pumping stations.
Installations in food processing plants where wet cleaning and disinfection operations are carried out regularly.
Industrial installations
Equipment protection in dusty workshops, concrete batching plants and metallurgical plants.
Installation of shielding in areas with aggressive environments (e.g. chemical plants).
Marine and port infrastructure
Protection of electrical wiring on platforms, in ports and on ships.
Use in coastal areas with high humidity and exposure to salt air.
Construction sites
Temporary power distribution unit for powering construction machinery in adverse weather conditions.
Underground installations
