Plastic switchboard for modular devices, gray door, IP65, Plastim

Barcode: PP3102

Regular price: €68,16
Regular price
Sale price: €68,16
Unit price: per

Low stock: 1 left

variant: 250x350x150 250x350x150 300x400x170 350x500x190 400x600x200 Plastic junction box for modular devices, gray door, IP65, Plastim

Product variants

Description
Instructions
Payment methods
Warranty

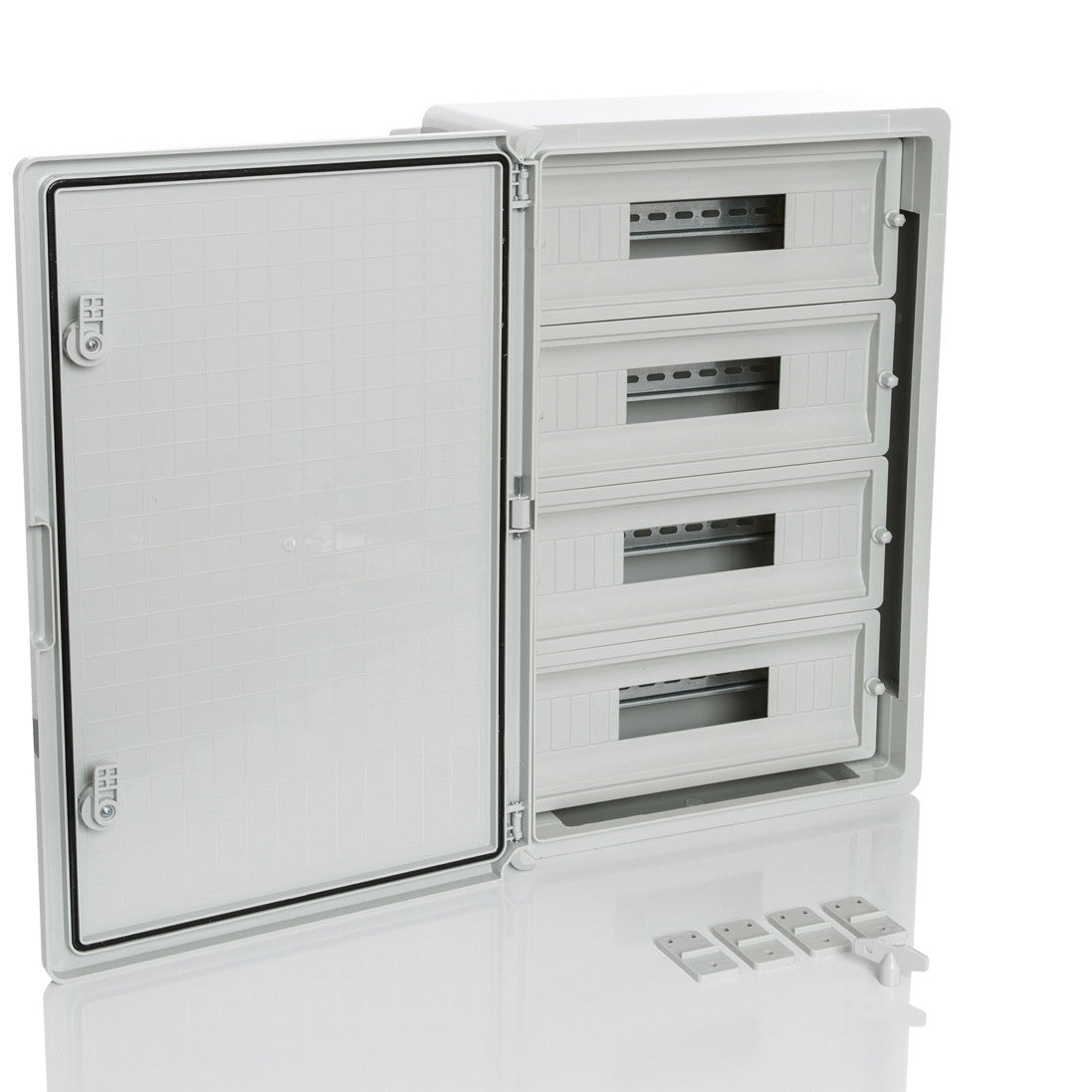

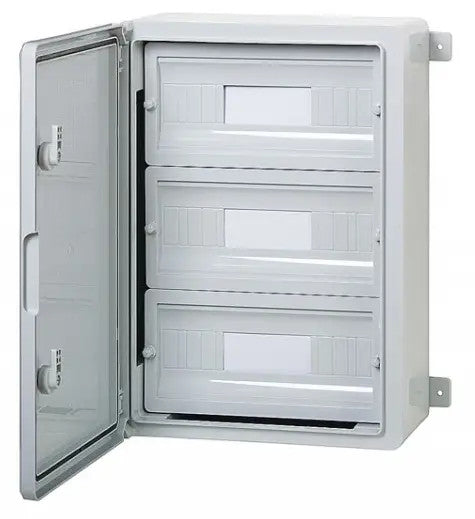

Plastic enclosure for modular devices, gray door, frame with DIN rails, IP65, Plastim

Code	Width (mm)	Height (mm)	Depth (mm)	Modules	Weight (kg)
PP3102	250	350	150	18 (9×2)	2.5
PP3104	300	400	170	24 (12×2)	3.4
PP3106	350	500	190	45 (15×3)	4.5
PP3108	400	600	200	60 (15×4)	6.0

The new waterproof plastic boxes produced by the Turkish company Plastim open a new chapter in the use of protective plastic boxes for automation and power distribution.

New enclosure design with corner reinforcements and increased thickness of the door and the entire product.
Extended temperature range in which the enclosure maintains all its enhanced properties -35/+60C
solid and lightweight galvanized metal mounting panel fully corrosion resistant
can be equipped with transparent doors and DIN rails, reinforced hinges with metal pin;

MAIN TECHNICAL FEATURES

Material: HB ABS halogen-free
Color: light gray RAL7035
Protection: IP65, IK08
Rated voltage: up to 690 V
Maximum current: up to 800 A
Operating temperature: -35°C + 65°C

Manual

https://files.principalelektrik.org/Modular%20Distribution%20Boards%20Grey%20Door%20PP3102%2CPP3104%2CPP3106%2CPP3108.pdf
