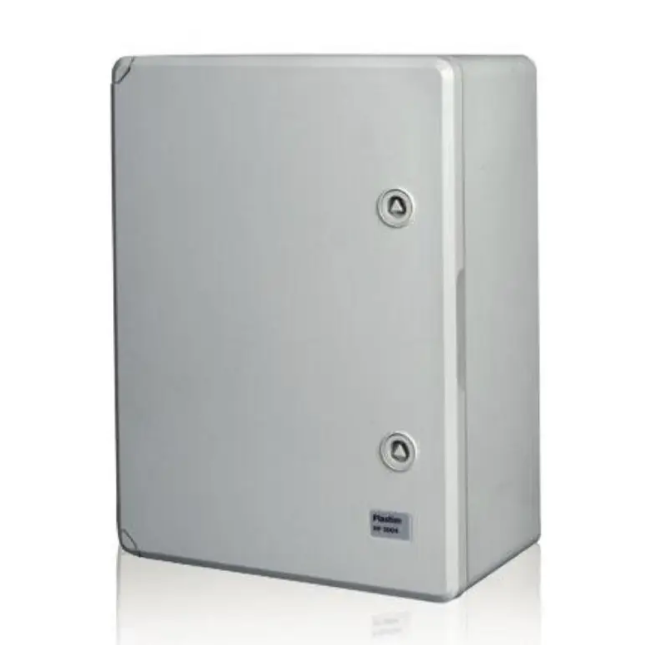

Plastic junction box with gray door 400x500x175mm IP65 PP3003 (p-box 4050-1)

Online payment by card – after completing your order, you will be redirected to the payment page and receive a payment confirmation via email.

Cash on delivery – payment, according to the terms of sale, is made to the courier of the transport company.

Bank transfer – You will receive a proforma invoice by email no later than the next business day, containing the account number to use for payment.

On invoice with deferred payment – this payment method is available to partners who have signed a framework agreement with our company.

If you wish to use one of the latter two payment methods, please contact our account manager, who will provide you with instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In the event of a complaint, there are no costs for returning the goods.

Plastic electrical panel, gray door, seam 400x500x175mm, IP65, PP3003 Plastim / P-BOX 3040-1

The new waterproof plastic boxes from the Turkish company Plastim open a new chapter in the use of protective plastic boxes for automation and power distribution.

• Reinforced brackets with metal pin

• New enclosure design with corner reinforcements and increased thickness of the door and the entire product.

• Extended temperature range in which the protector maintains all its enhanced properties -35/+60C

• Lightweight galvanized metal mounting panel, fully corrosion resistant
• Can be equipped with transparent doors and DIN rails reinforced with metal brackets;

MAIN TECHNICAL FEATURES

• Mounting panel: 1 mm thick galvanized steel
• Material.
• Width: 400 mm
• Height: 500 mm
• Depth: 175 mm
• Color: light gray RAL7035
• Enclosure: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 4.3 kg
