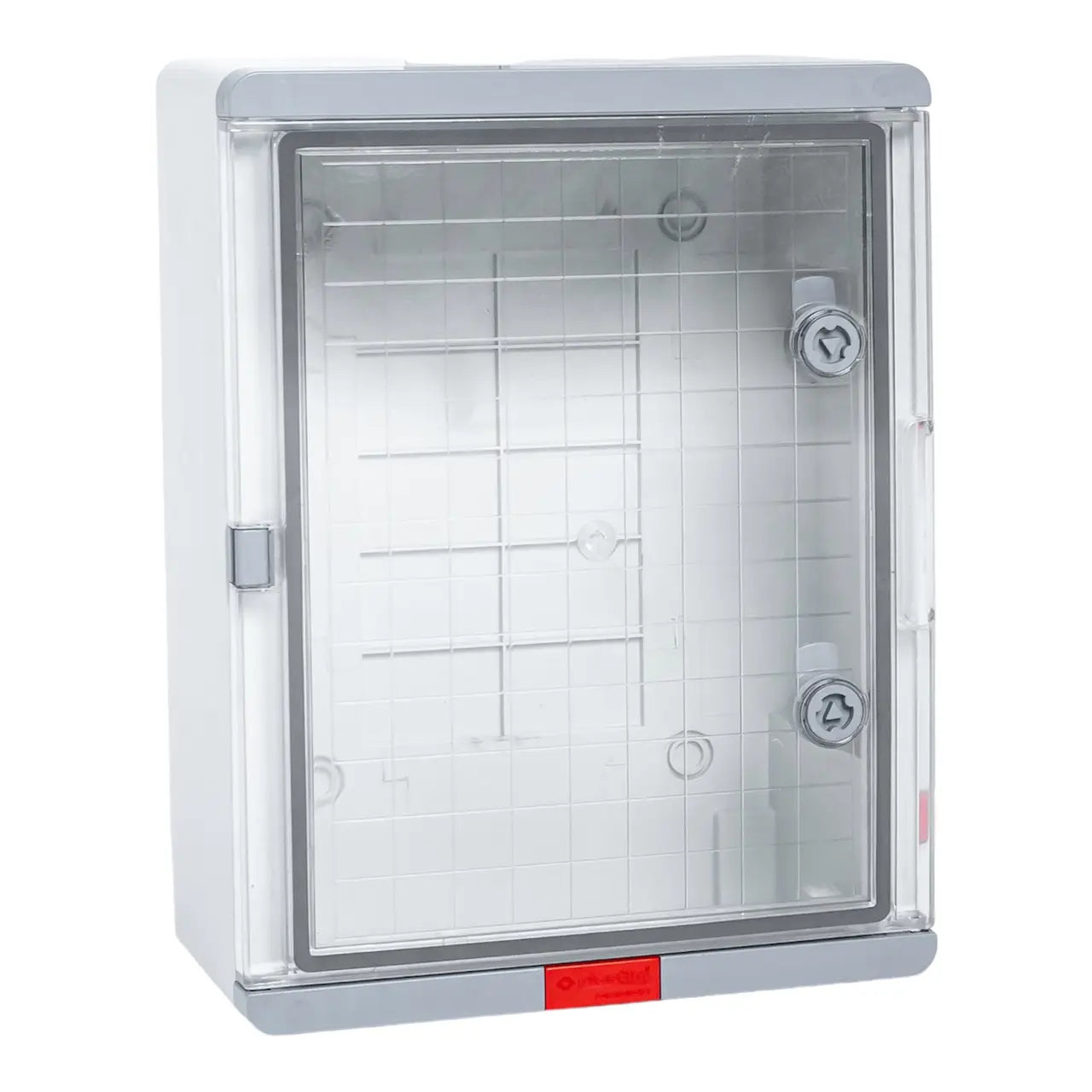

Plastic box IP 67, transparent door, 400x300x170 mm

Sealed Plastic Electrical Panel IP67 with Mounting Panel – Plastim (Turkey)

The IP67 shockproof panel from Turkish manufacturer Plastim is a reliable solution for protecting electrical connections in conditions of high humidity, dust, and aggressive environments.

With its durable plastic housing and high degree of tightness, the switchboard is ideal for outdoor, industrial, construction, and marine infrastructure applications.

Advantages of the plastic sealed IP67 enclosure:

• Full protection against dust and moisture (IP67):
  The device is fully protected from dust and can withstand short-term immersion in water up to 1 meter deep (up to 30 minutes).
  Ideal for car washes, outdoor installation, industrial areas with high humidity and dust.

• Corrosion resistance:
  Unlike metal housings, plastic will not rust, which is especially important in marine climates, chemical plants, and high humidity areas.

• Easy to install and transport:
  The plastic housing is lighter than its metal analogues, which simplifies installation, especially in hard-to-reach locations.

• High dielectric properties:
  Plastic does not conduct current, providing additional electrical insulation and increased safety.

• UV-resistant:
  The housing, made of UV-resistant ABS plastic, retains its strength and colour even with prolonged exposure to sunlight.

Technical Specifications:

• SKU: PS304017
• Current: 800 A
• Ambient Temperature: –35°C to +65°C
• UV Stable: Yes
• Material: ABS
• Halogen Free: Yes
• RAL Code: 7035
• Packaging Dimensions: 304 × 404 × 174 mm
• IK Rating: 08
• Voltage: 690 V
• Protection: IP67
• Dimension V: 400 mm
• Dimension W: 300 mm
• Dimension H: 170 mm
• Net Weight: 3.000 kg
