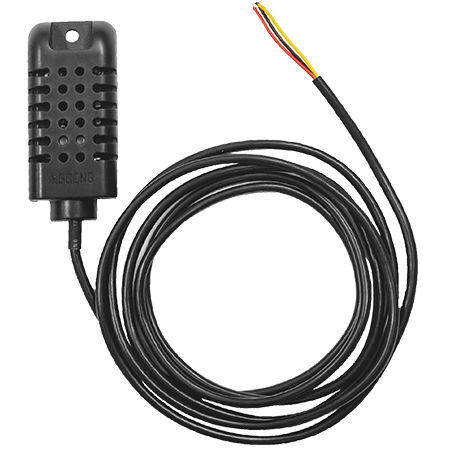

Probe for temperature and humidity measurement

Relay for temperature and humidity control. Humidity and temperature controller with separate outputs and hysteresis, size 72x36x100 mm, flush mounting. HT-310 TENDE.

Main features:

Type of sensor used for humidity and temperature controller - a common one - NT-310;

Measured temperature range: -19.9 °C..+80.0 °C; measurement step 1 °C;

Humidity measurement range: 5%....95%; measurement step 1%;

Control principle - ON-OFF;

2 groups of output contacts: switching control contact "°C OUT", resistive load 2A for temperature and "%RH OUT", resistive load 2A for humidity, normally open.

2 operating modes for temperature control "Cooling" and "Heating" ("COOLING" and "HEATING")

2 operating modes for humidity control "Dehumidification" "Humidification";

Separate setting of hysteresis parameters for temperature and humidity control; Choice between absolute temperature, relative temperature, or sensor error for the ALARM contact

Ability to set ON/OFF delay for COOLING mode (used for compressors); Ability to set a fixed offset for temperature or humidity (when changing the sensor wire length);

Password protection of parameters set in the thermostat;

Non-volatile memory (EEPROM) for data storage;

Easy disconnection/connection to the controlled device - connection is made via quick connectors.

Extended operating voltage range - 100...240 V, 50-60 Hz

This controller can also be used as a hygrostat, hygrometer, moisture or density meter (hygrometer, hygrometer), thermostat, thermal relay, or, in other words, as a relay for measuring humidity levels and air temperature!

Warning!!!

Observe polarity when connecting the temperature sensor: failure to do so may cause incorrect operation of the thermostat and damage to the sensor.

When connecting the thermostat to the power supply, use a 250mA 250V fuse, use a cable of appropriate cross-section, and comply with electrical safety standards.

For signal contacts, use a shielded twisted pair cable with grounded shielding. Place this cable at points... Protect from strong electromagnetic fields, contactors, or power cables.
