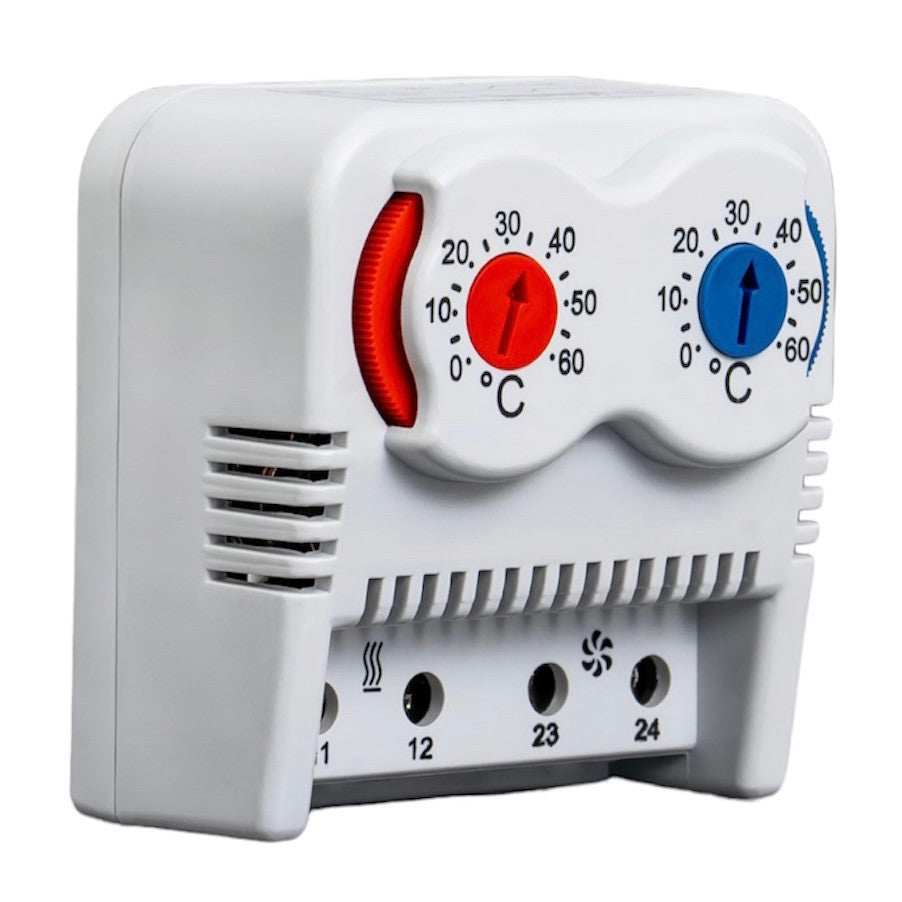

PTHVT Double/double bimetallic thermostat with NC+NO switching, 0-60°C range Plastim
- Regular price
- €14,44
- Regular price
-
- Sale price
- €14,44
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
Double bimetal thermostat PTHVT Double NC+NO thermostat (cooling/heating), switching, 0-60°C, bimetal
Single thermostat. 220(250) V AC. Bimetal sensor with heating function. Electrical connection with 4 terminals of 2.5 mm2. Mounting mode on 35 mm DIN rail, cross rails, on mounting panel.
Used to connect both fans (coolers/air conditioners) and heating elements - heating elements, panel heaters, heated floors, heating cables, heat fans.
Features |
PTHVT |
Contact type |
NC+NO |
Setting range |
0-60 / 0-60 °C |
Potentiometer color |
red / blue |
250V AC / 120V AC |
10 (2) 15 (2)A |
Sensor type |
Bimetallic |
Contact type |
Snap action |
Service life |
> 100,000 |
Electrical connection |
4-pole terminal, screw terminals |
Plastic material |
ABS UL94 V0 flame retardant |
Protection rating |
IP20 |
Operating temperature |
-25 / +80 °C |
Storage temperature |
-45 /+80°C |
Installation |
DIN 35 mm rail |
Dimensions HxWxD |
65x59x42 mm |
Weight |
80 g |
Online card payment: after completing the order, you will be redirected to the payment gateway, the payment confirmation will be sent to your email
COD: you pay the payment according to the payment order to the transport company driver
By bank transfer- you will receive an advance invoice at your email address no later than the next working day, on which you will find the account number to enter during payment.
On invoice: this payment option is available for partners who have signed a framework agreement with our company.
If you want to use the last 2 methods, call our manager and he will give you instructions on how to receive an invoice with or without VAT.
The electrical devices we provide meet high quality standards, have a 24-month warranty, and meet all EU requirements.
Additionally, we offer free shipping for orders over €100. We have a flexible system of discounts and promotions. The technical knowledge and experience of our employees allow us to provide high-quality advice and, if necessary, offer alternatives to electrical products.
The electrical equipment we provide meets high quality standards, is covered by a 24-month warranty, and complies with all EU requirements.
In case of a complaint, the return of the goods is not charged.
