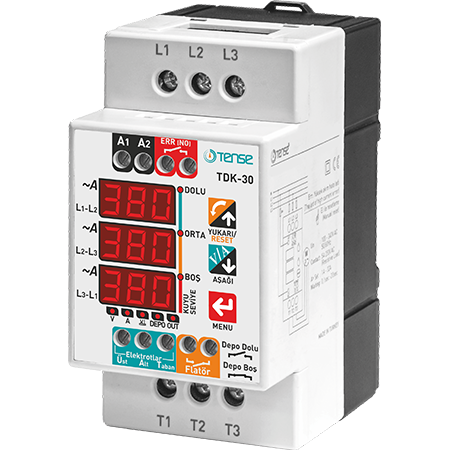

Protection of the pump against dry running, controller for submersible pumps DIN
- Regular price
- €105,80 €86,72 excl. VAT
- Regular price
-
- Sale price
- €105,80 €86,72 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty
|
Control units for submersible and drilling pumps, maximum current 30 A, 200 V-460 V AC, three-phase Electrodes (liquid level sensors) not included
Pump control and emergency protection devices
This device is designed to control pumps and submersible motors used in wells and other tanks, as well as to protect them from adverse conditions such as dry running, overvoltage, and current or voltage imbalance.
Main features Current range: 1 A-30 A. Integrated components: current transformers and contactor. Protection functions: Overvoltage/undervoltage. Overcurrent/undervoltage. Current/voltage imbalance. Other functions: Error timeout setting. Automatic reset of the timer and counter. Supports manual, semi-automatic, and automatic reset modes. Setting of multiplier and downtime. Phase sequence control. Display of the number of contacts used. Total operating time monitoring. Liquid level sensors: not included, must be ordered separately. Make sure to order the water level sensors and the float sensor.
Technical specifications:
Operating voltage (Un): 100-240 VAC.
50/60 Hz.
Overload current: up to 30 A.
Display: 3-digit LED display with 8 indicators.
Liquid sensitivity: <50 kOhm.
Operating power: <10 VA.
Operating temperature: from -20 °C to +55 °C.
Cable diameter: up to 2.5 mm² and 6 mm² for current inputs and outputs.
Contacts: 3 A / 250 V AC (resistive load).
Operating altitude: up to 2000 m.
Mounting: DIN rail.
Device weight: up to 380 g.
Applications:
|
