OPK-C Morsetto a doppia fila da 4 mm²
- Regular price
- €1,96 €1,61 excl. VAT
- Regular price
-
- Sale price
- €1,96 €1,61 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

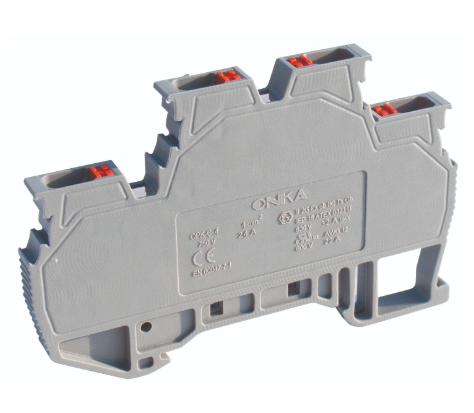

Morsetto per guida DIN senza viti grigio, ONKA
I morsetti in linea compatti di ONKA forniscono connessioni elettriche e meccaniche affidabili nei quadri elettrici. Sono progettati per il montaggio su guida DIN standard da 35 mm. I morsetti originali ONKA offrono un elevato comfort di montaggio, un fissaggio sicuro dei fili e una stabilità di connessione a lungo termine anche in condizioni industriali difficili.
Parametri tecnici
Colore: grigio
Sezione nominale (IEC): 4 mm²
Sezione nominale (UL): 12 AWG
Corrente nominale (IEC): 24 A
Corrente nominale (UL): 22 A
Tensione nominale (IEC): 750 V
Tensione nominale (UL): 300 V
Materiale del corpo isolante: Poliammide (PA 6.6)
Materiale del ponte: rame
Materiale della molla: acciaio inox
Materiale del pulsante di comando: poliammide (PA 6.6), arancione
Intervallo di temperatura di funzionamento: da -40 °C a +140 °C
Lunghezza di spelatura del filo: 9 mm
Metodo di montaggio: guida di montaggio DIN 35 mm
Norme: EN-60947-7-1, UL1059
Certificazione: TSE, CE, UL

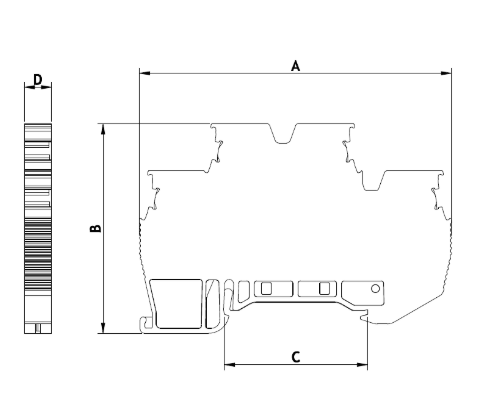

Dimensioni
Dimensione A: 75,15 mm
Dimensione B: 50,5 mm
Dimensione C: 34,5 mm
Dimensione D (larghezza del morsetto): 6,6 mm
