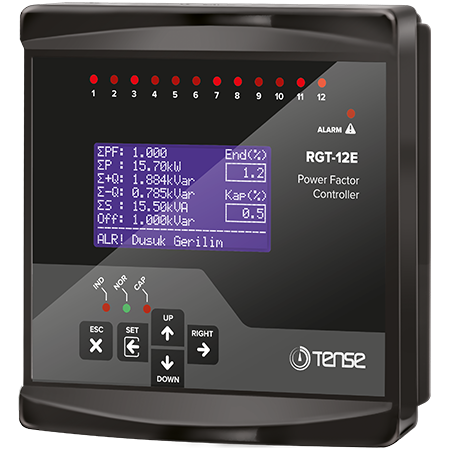

RGT-12E - 12-level reactive power regulator +TCR

Barcode: RGT-12E

Regular price: €220,49 €180,73 excl. VAT
Regular price
Sale price: €220,49 €180,73 excl. VAT
Unit price: per

Low stock: 5 left

All items are in stock and shipped from the Czech Republic. Delivery takes 3–8 days.

Product variants

Description
Instructions
Payment methods
Warranty

12-phase power factor controller + TCR with 2.9" graphic LCD display (TENSE)

The reactive power regulator RGT-12E (TENSE) is a fully automatic device for the optimal switching of compensation stages.

The digital processing of the values measured by the regulator ensures high accuracy in evaluating the actual voltage, current, and power factor.

The device installation is fully automatic: the regulator itself determines the sizes of the individual connected compensation stages. These parameters can also be entered manually.

The controller activates and deactivates the compensation stages to regulate reactive power with a minimum number of switching operations. At the same time, the controller takes into account the uniform load of the individual stages and preferably switches the stages that have been de-energized for the longest period and for which the residual charge is minimal. During the regulation process, the compensation stages are continuously monitored in parallel: faults and value variations are detected, temporarily removed stages are periodically tested and, if necessary, reinserted into the regulation process.

Generator input and compensation
Ability to set entry, exit, and settling times
It is possible to connect single-phase, two-phase, and three-phase capacitors and shunt reactors.
It is possible to observe voltage and current harmonics up to the 31st harmonic
Ability to monitor total energy (import/export)
THD-V and THD-I values of each phase can be observed
Creation of power analysis (20 samples 9999 min.) - for capacitor selection

Manual

https://files.principalelektrik.org/RGT-12SVC%2C%20RGT-18SVC%2C%20RGT-12E%2C%20RGT-18E%2C%20RGT-12E%20SVC%2C%20RGT-18E%20SVC%20and%20RGT-18G%20USER%20MANUAL%20%28SKU%20RGT-12E%2C%20SKU%20RGT-12%28SVC%29%29.pdf
