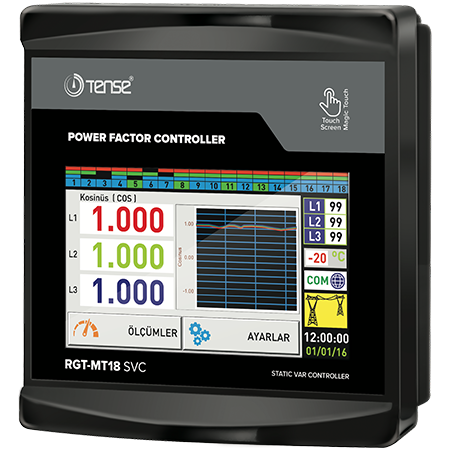

18 steps + TCR Power factor regulator for symmetric/asymmetric networks with 5-inch touch screen and RS-485 (TENSE)

Reactive power control relays are designed to reduce reactive power (inductive and capacitive) unused by the load and drawn from the network. When inductive power is drawn from the network, the relay acts by removing a capacitor at an appropriate value. If capacitive power is drawn from the network, it acts by drawing a shunt inductor of appropriate value. In this way, it tries to reduce the system's inductive/active and capacitive/active speeds. It is designed to provide more reasonable compensation in unbalanced inductive and capacitive systems with the RGT-MT18 TCR step.

• Generator input and compensation

• Output of voltage, current/harmonic voltage, inductive and capacitive alarm

• Ability to adjust response, discharge, and settling times

• Remote communication with RS485 (RS485 ModBus RTU)

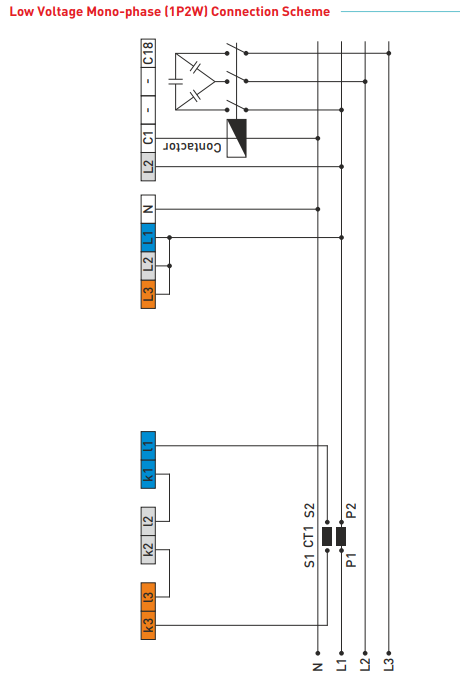

• Ability to connect single-phase, two-phase, and three-phase capacitors and shunt reactors

• Ability to observe voltage and current harmonics up to the 61st harmonic

• Ability to monitor total energy (import/export)

• THD-V and THD-I values of each phase can be observed

• Creation of power analysis (20 samples 9999 min.) - for capacitor selection

• Temperature alarm output

• Recording of demand (active, reactive, and apparent power demand and current)

• Ability to monitor minimum, maximum, and average current and voltage values of each phase

• Actual date and time
