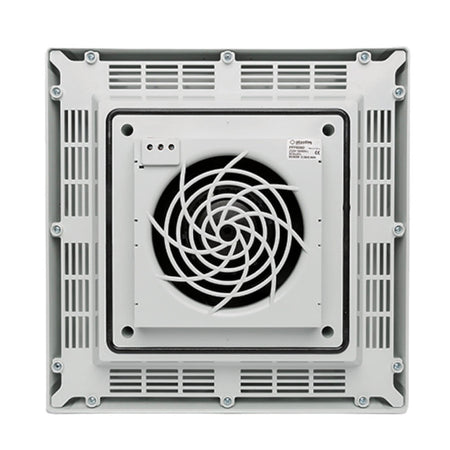

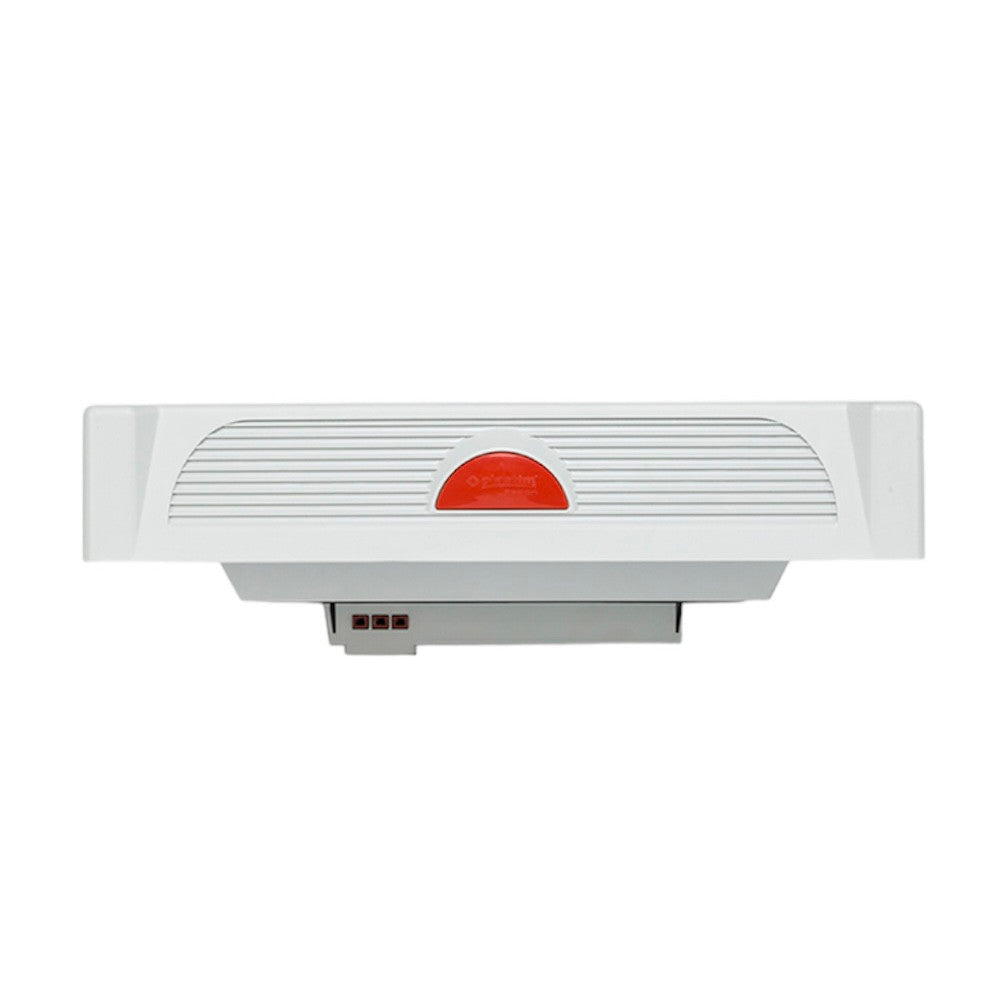

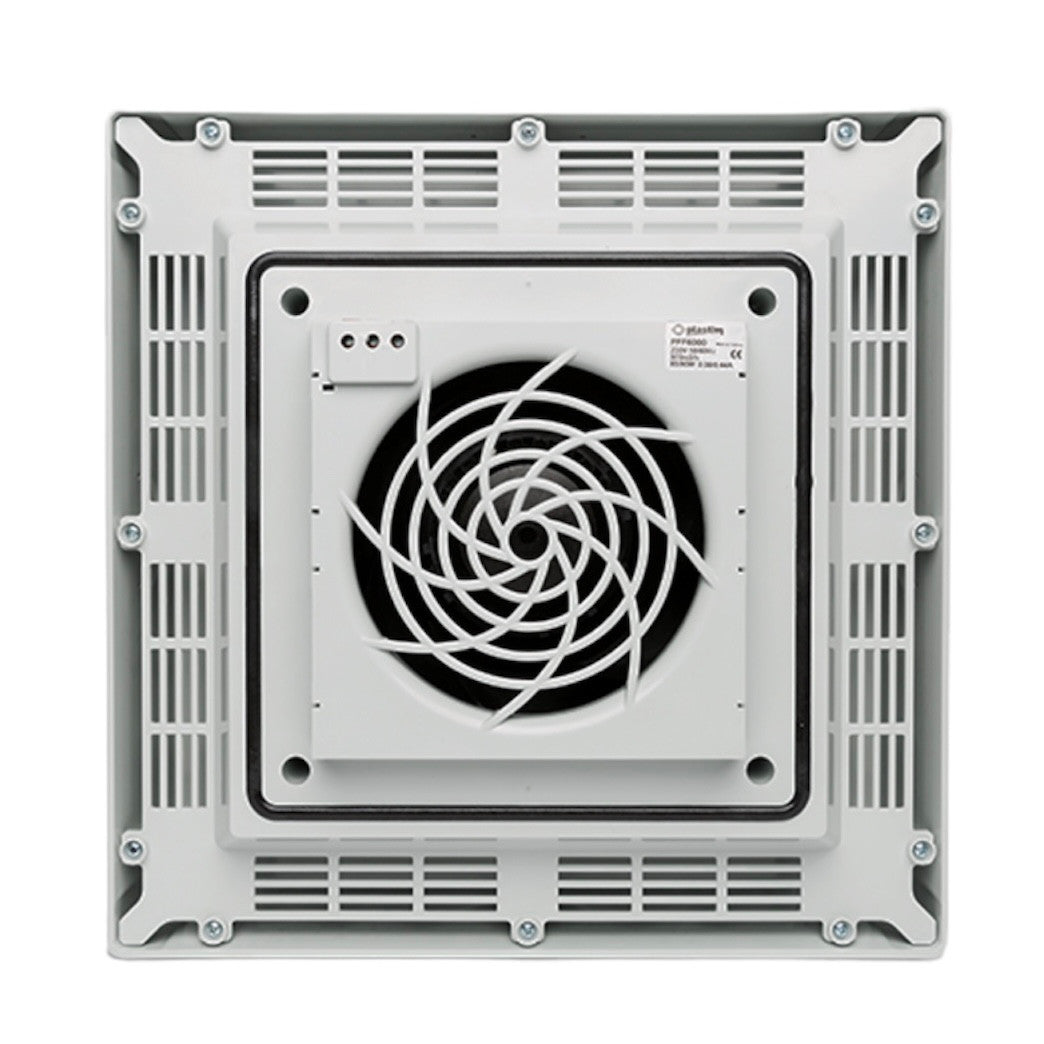

Fan in enclosure for installation on the top of the panel, PTS5500, PLASTIM (Turkey)
This fan is designed for use in a microclimate system in a distribution or automation panel and is typically used with a PTVT or PTHVT thermostat. It is installed on the top of the panel, allowing excess hot air to be extracted from the panel volume in the most efficient way possible.
Although having the same dimensions, the fans differ in the volume of air delivered and noise level.
- External dimensions: 364x364x107 mm
- Installation dimensions: 178x178 mm
- Airflow: 560 m3/h
- Noise level: 62 (64) dB(A)
- Bearing: Ball bearing
- Lifetime: 50000 hours
- Operating voltage: 220-230VAC, 50/60Hz
- Current consumption: 0.26/0.34 A
- Rated power: 58/75 W
- Electrical connection: 3-pole terminal 2.5 mm2
- Flow direction: Airflow is directed from inside to outside of the cabinet
- Operating temperature: -10/+70 °C
- Protection rating: IP54
- Plastic material: ABS UL94 V0 flame retardant
- Gasket: polyurethane gasket
- Color: RAL 7035
- Weight: 3.16 kg
- Installation: quick clip-on
To ensure automatic air exchange and temperature maintenance with this fan, a simple bimetallic thermostat or a more complex temperature controller is required; both devices can be purchased on our website.
