Roof fan, panel fan, 970m3/h, 230VAC, 364x364x107mm, IP54, PTS6000
Failed to load pickup availability
Online payment by card – after completing your order, you will be redirected to the payment page and receive a payment confirmation via email.
Cash on delivery – payment, according to the terms of sale, is made to the courier of the transport company.
Bank transfer – You will receive a proforma invoice by email no later than the next business day, containing the account number to use for payment.
On invoice with deferred payment – this payment method is available to partners who have signed a framework agreement with our company.
If you wish to use one of the latter two payment methods, please contact our account manager, who will provide you with instructions on how to receive an invoice with or without VAT.
The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In the event of a complaint, there are no costs for returning the goods.

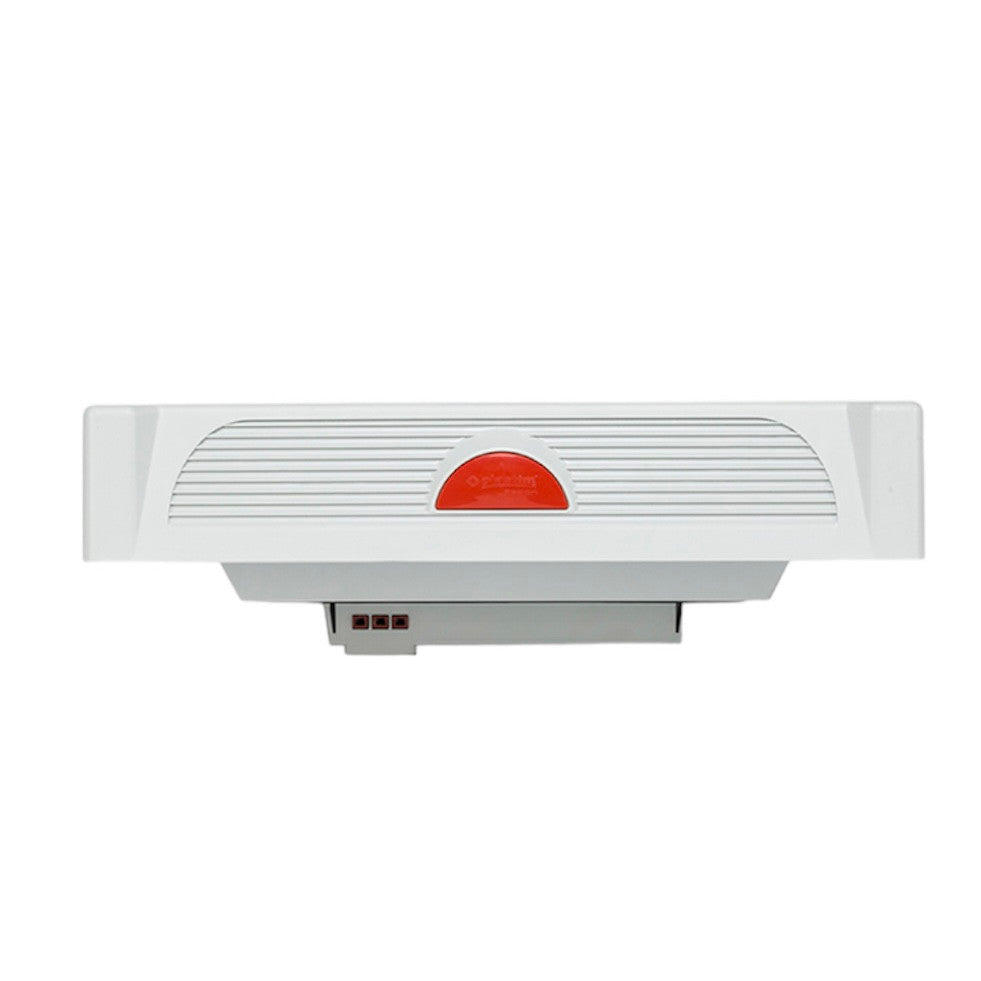

Fan in enclosure for installation on the top of the panel, PTS6000, PLASTIM (Turkey)
This fan is designed for use in a microclimate system in a distribution or automation panel and is typically used with a PTVT or PTHVT thermostat. It is installed on the top of the panel, allowing the excess hot air to be extracted from the panel volume in the most efficient way possible.
Although having the same dimensions, the fans differ in the air volume emitted and the noise level.
- External dimensions: 364x364x107 mm
- Installation dimensions: 178x178 mm
- Airflow: 970 m3/h
- Noise level: 72 (73) dB(A)
- Bearing: Ball bearing
- Lifetime: 50000 hours
- Operating voltage: 220-230VAC, 50/60Hz
- Current consumption: 0.38/0.44 A
- Rated power: 85/90 W
- Electrical connection: 3-pole terminal 2.5 mm2
- Flow direction: The airflow is directed from inside to outside of the cabinet
- Operating temperature: -10/+70 °C
- Protection rating: IP54
- Plastic material: ABS UL94 V0 flame retardant
- Gasket: polyurethane gasket
- Color: RAL 7035
- Weight: 3.16 kg
- Installation: quick clip-on
To ensure automatic air exchange and temperature maintenance with this fan, a simple bimetallic thermostat or a more complex temperature controller is required; both devices can be purchased on our website.
