Separate auxiliary relay Relay module - socket + relay for DIN rail, 6 A, NO+NC
- Regular price
- €7,60 €6,23 excl. VAT
- Regular price
-
- Sale price
- €7,60 €6,23 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
|

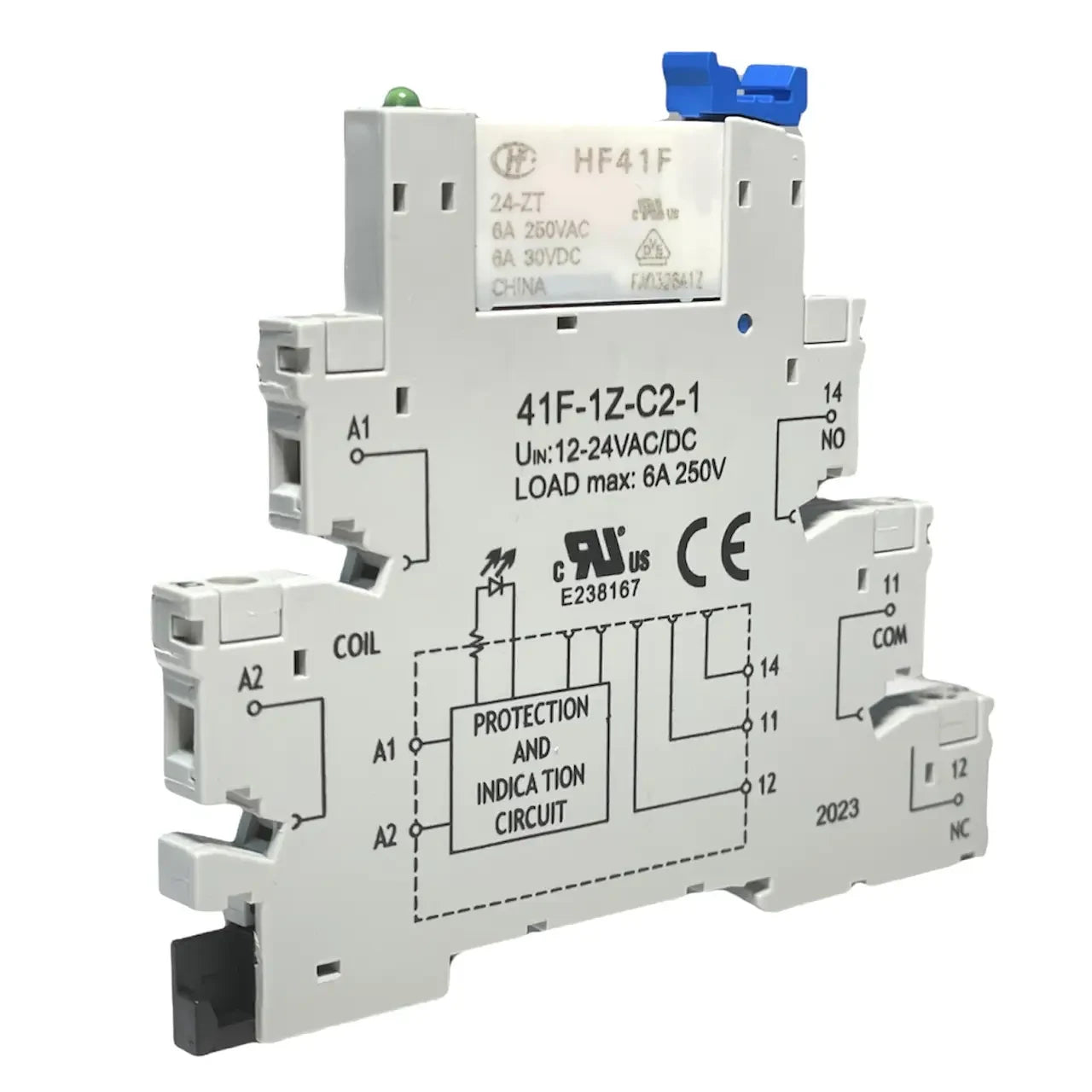

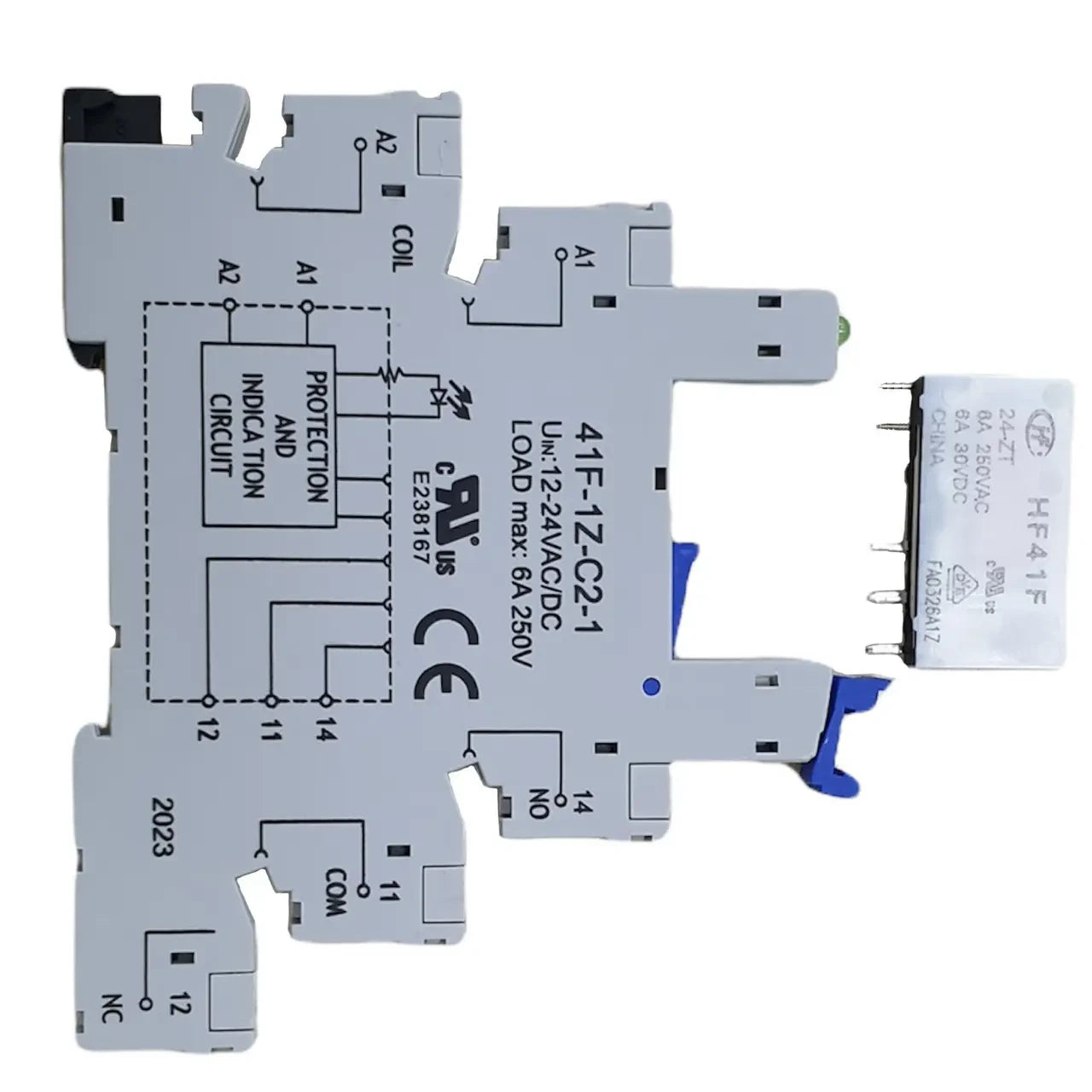

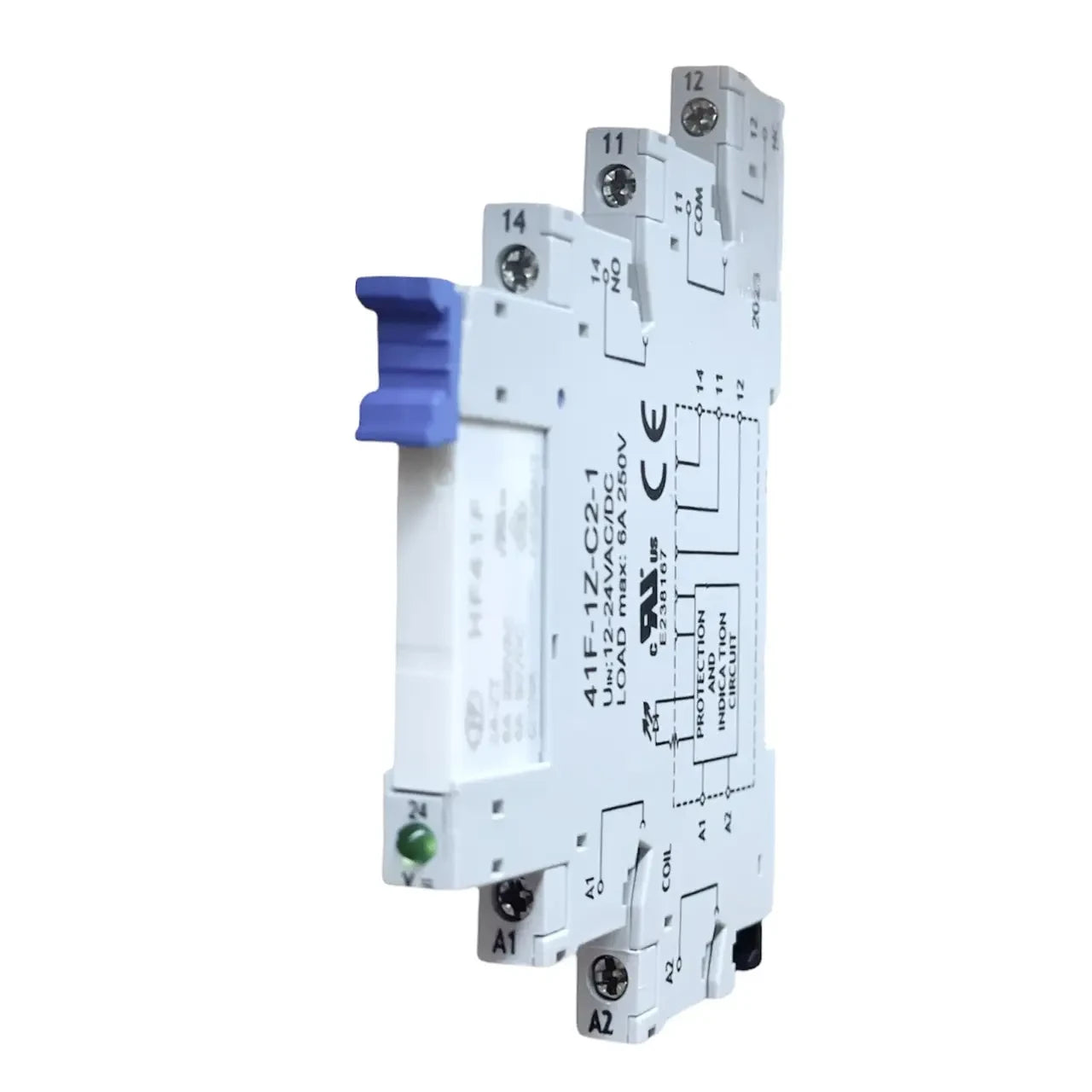

Interface relay with mounting block, interface module: 6A, 12-24V, AC/DC, NO+NC The HF-41F interface block consists of the base module 41F-1Z-C2-1 and the miniature plug-in relay HF41F/24-ZT with power contacts. It is designed for galvanic isolation, to increase switching capacity, and to amplify the control signal from the PLC.
Features and benefits
Provides galvanic isolation and switching of power and signal circuits. Mounting on standard DIN rail.
Relay element replacement without removing the entire module. Space saving Built-in LED indicator Technical characteristics
Rated input voltage: 12-24 V, AC/DC Rated AC operating voltage: 250 V Rated DC operating voltage: 30 V Rated current: 6 A Contacts: NO+NC Indication: Green relay status LED Operating temperature: -20...+55 °C Protection rating: IP20 |
Module width: 6 mm
