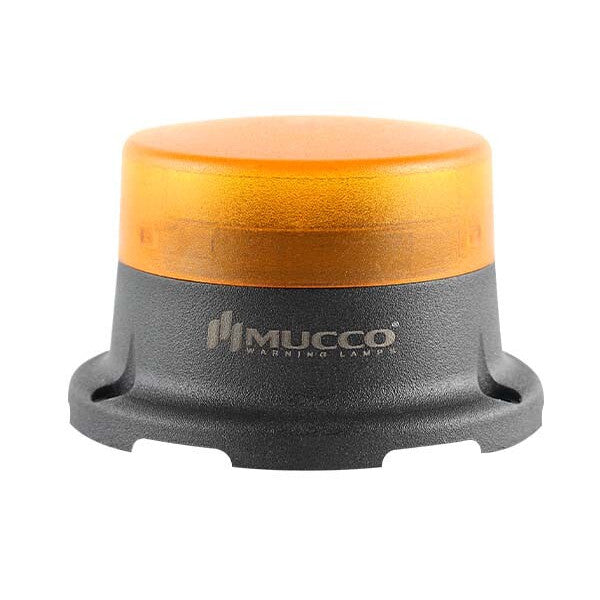

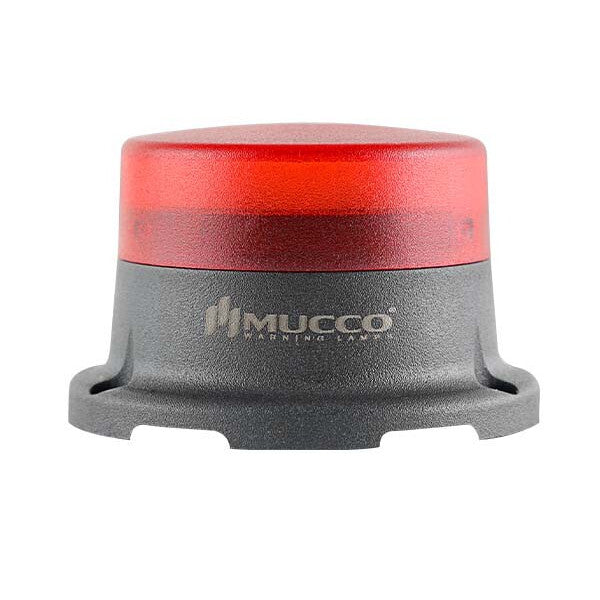

Series 70 SNT-M725, SNT-M715 indicator with buzzer, ø70mm, manufacturer MUCCO (Turkey)
| Rated voltage, starting current | 24 V DC 110-150 mA ±10 % (SNT-M715) 40-250 V AC/DC, 78-95mA ±10% 50-60 Hz (SNT-M725) |
| Protection rating | IP65, water, dust, heat, and UV resistance |

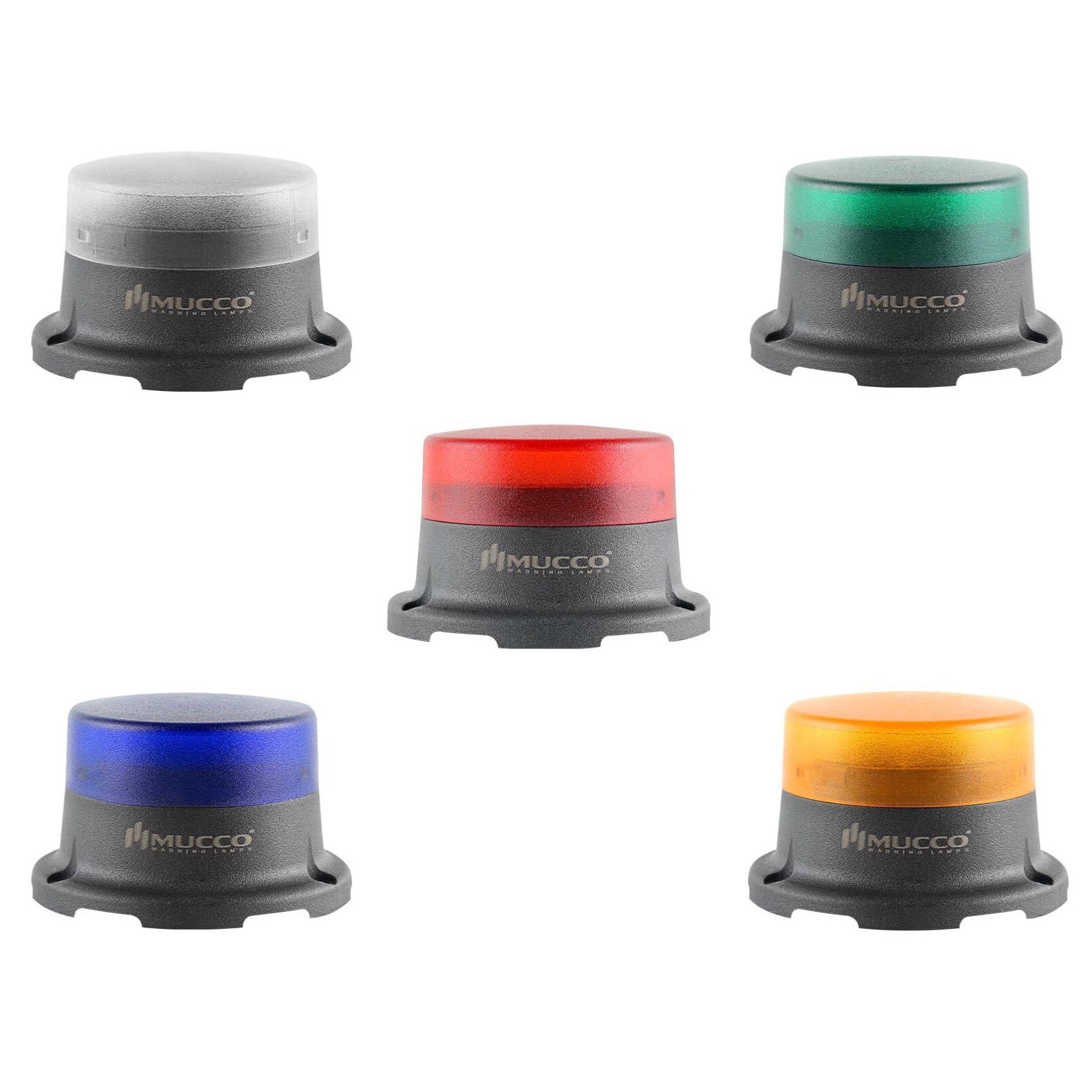

| Lid color | Red, yellow, green, blue, white |
| Light source | SMD LED |

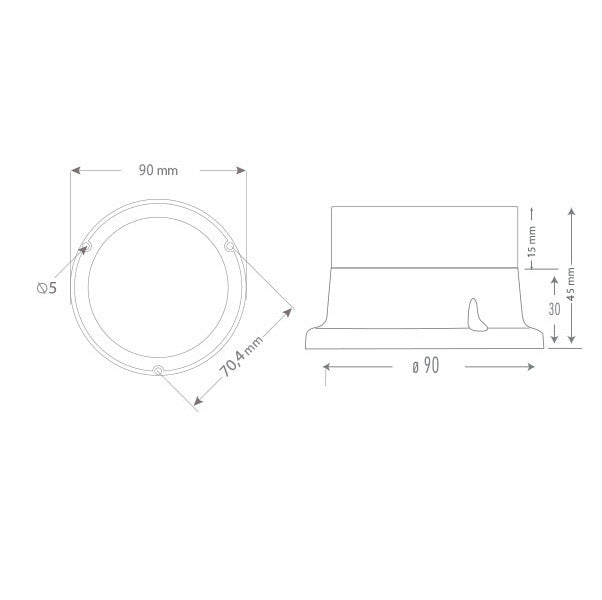

| Cover diameter | ø 70 mm |
| Volume | 94 ~ 100 dB/1 m (3.3 ft) |
| Type ofsignaloptical | steady light, flicker |
| Type of acoustic signal | Buzzer, 1 tone |
| Input response | On/off: max. 10 ms |
| Operating temperature | From -20 °C to +50 °C (from -4 °F to +122 °F) |
| Expected lifetime | Minimum 50,000 hours |
| Material | ABS (body) + polycarbonate (cover) |
| Mounting method | Surface, wall |
| Certificates and quality documents | ISO-9001, CE, RoSH2 and EAC |
