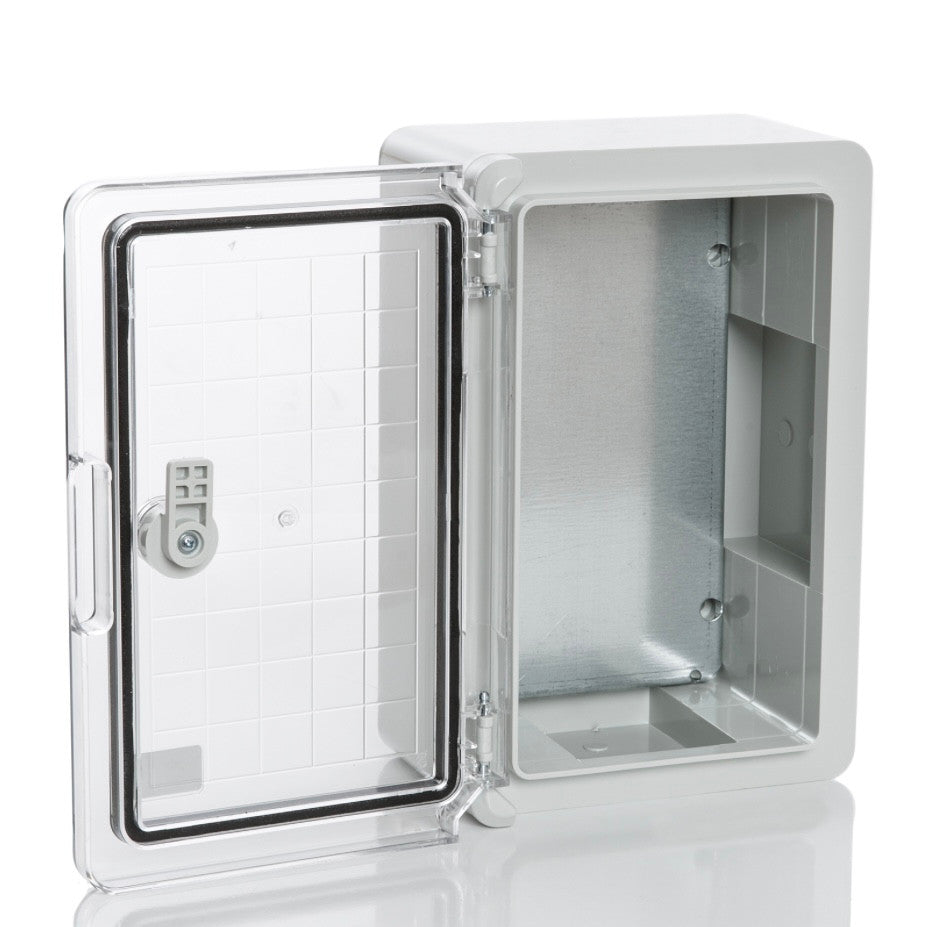

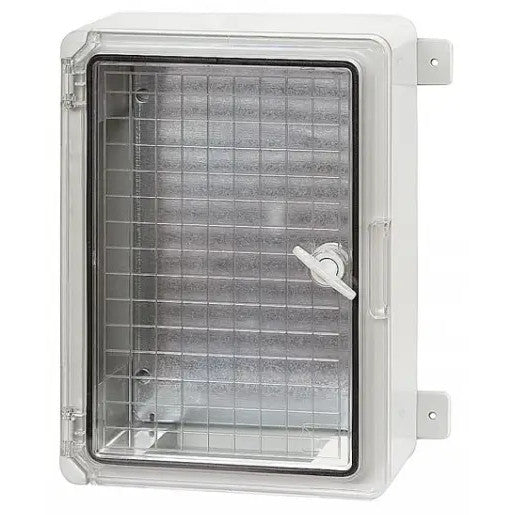

Plastic electrical panel, transparent door, seam 200x300x130mm, IP65, PP3011 Plastim
The new waterproof plastic enclosures produced by the Turkish company Plastim open a new chapter in the use of plastic protective enclosures for automation and power distribution.
-
Reinforced brackets with metal pin
-
New enclosure design with corner reinforcements and increased thickness of the door and the entire product.
-
Extended temperature range in which the protector maintains all its enhanced properties -35/+60C
- Lightweight galvanized metal mounting panel, fully corrosion resistant
- Can be equipped with transparent doors and DIN rails reinforced with metal brackets;
MAIN TECHNICAL FEATURES
- Mounting panel: 1 mm thick galvanized steel
- Material: HB ABS halogen-free + polycarbonate (door)
- Width: 200 mm
- Height: 300 mm
- Depth: 130 mm
- Color: light gray RAL7035
- Coverage: gray color, gray, gray, gray, gray, gray: IP65, IK08
- Rated voltage: up to 690 V
- Maximum current: up to 800 A
- Operating temperature: -35°C + 65°C
- Weight: 1.70 kg
