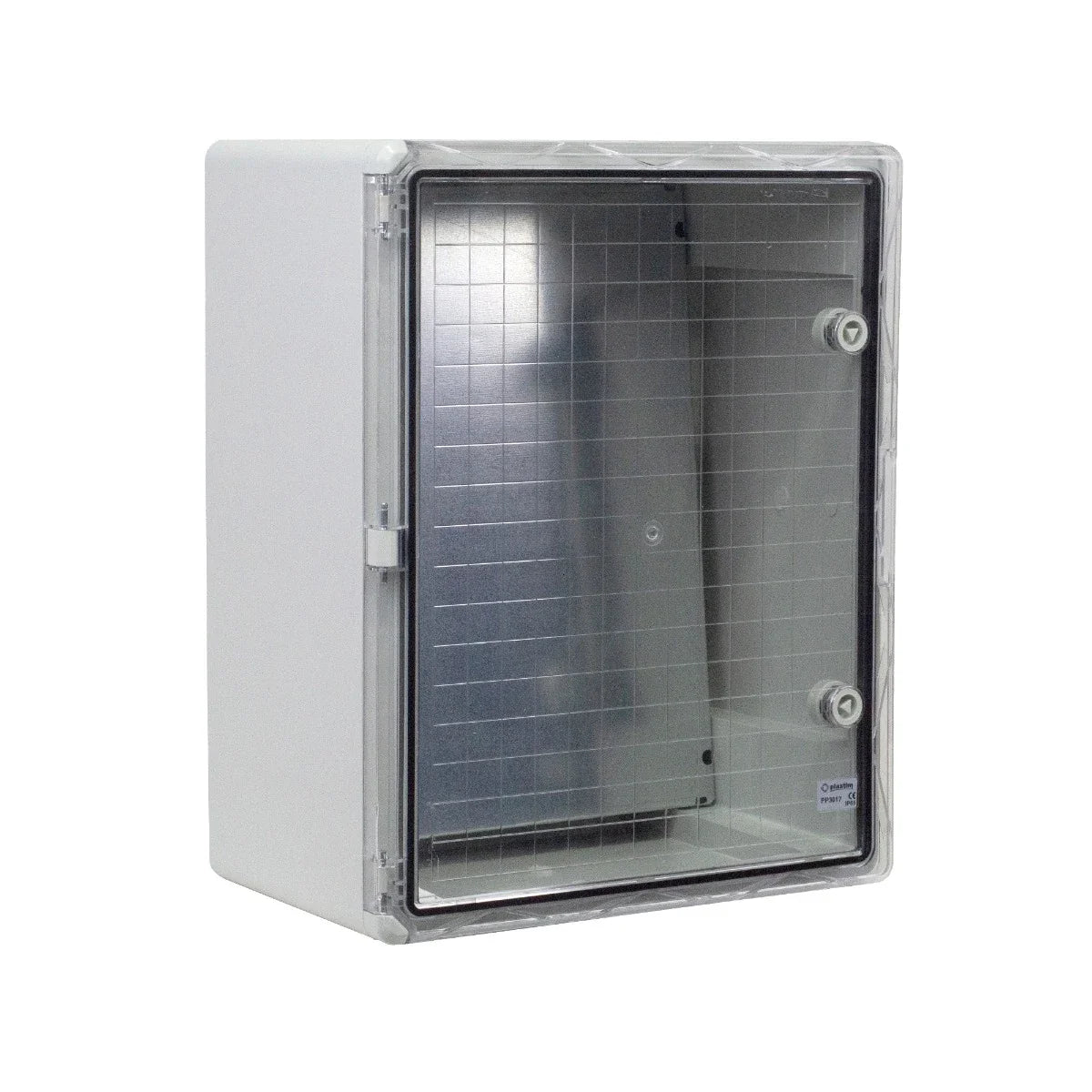

Plastic electrical panel, transparent door, seam 400x500x240mm, IP65, PP3017 Plastim

The new waterproof plastic enclosures produced by the Turkish company Plastim open a new chapter in the use of plastic protective enclosures for automation and power distribution.

• Reinforced brackets with metal pin

• New enclosure design with corner reinforcements and increased thickness of the door and the entire product.

• Extended temperature range in which the protector maintains all its enhanced properties -35/+60C

• Lightweight galvanized metal mounting panel, fully corrosion resistant
• Can be equipped with transparent doors and DIN rails reinforced with metal brackets;

MAIN TECHNICAL FEATURES

• Mounting panel: 1 mm thick galvanized steel
• Material: halogen-free HB ABS + polycarbonate (door).
• Width: 400 mm
• Height: 500 mm
• Depth: 240 mm
• Color: light gray RAL7035
• Enclosure: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 3.00 kg
