Time relay, 12V - 240V AC/DC 1 / 10 / 100 sec min hr
- Regular price
- €22,16
- Regular price
-
- Sale price
- €22,16
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty
|

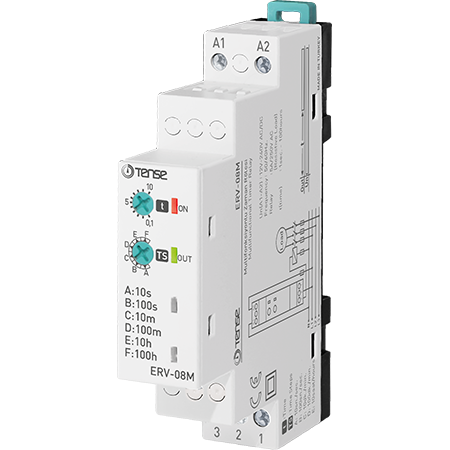

Detailed description ERV-08M time relay up to 100 hours, with universal power supply Un:12-230VAC

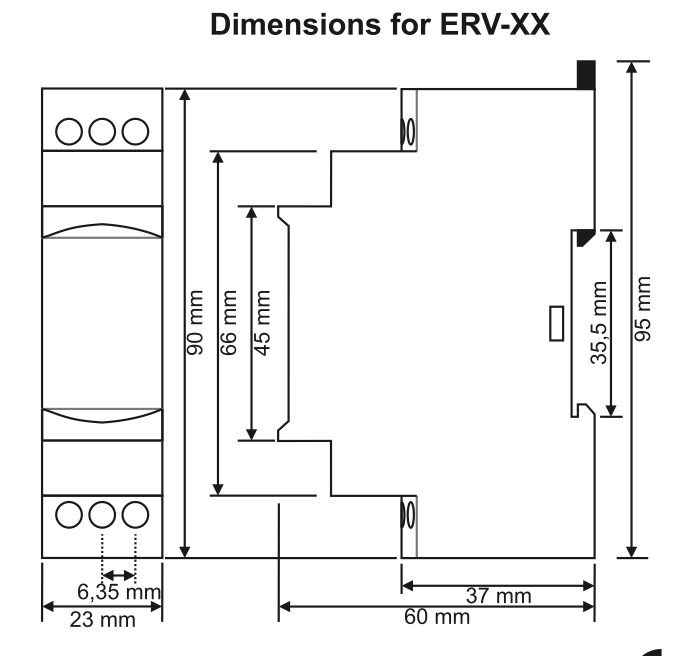

- ON delayed NO contact after power on (no control signal) - Time range 0.1 seconds up to 100 hours - 1x switching contact 5A/250VAC (terminals 1,2,3) - 2x LED indicators (power, relay coil) - universal power supply 12 - 230V AC/DC / 4VA terminals A1-A2 - DIN rail mounting - IP20 protection - Dimensions 91 x 18 x 65 mm
Control and function description: LED indicators: ON (red LED) = relay is powered, OUT (green LED) = on: output relay is active (contacts 2-3 connected), OUT (green LED) = blinking: time counting until activation. Rotary potentiometer for the "t" value from 0.1 (1%) to 10 (10=100%) Rotary potentiometer for maximum time value "TS": A=10s, B=100s, C=10min., D=100min., E=10hr., F=100hr.
The relay allows delayed activation of the NO contact (terminals 2-3) after power is applied (no control signal). Switching function. The time change made by turning the knob will apply at the next power connection. The output relay contains an SPDT switching contact, terminal 2=COM, terminal 3=NO, terminal 1=NC

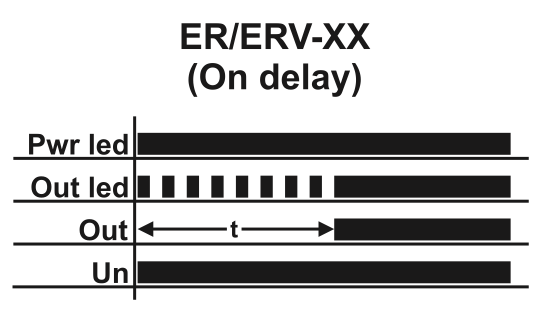

1/ ON delay (terminals 2 - 3): - ON delayed after power connection (no control signal) - after power is connected, the set time (t) counting starts and upon time expiration the output relay (RLY) activates (connects terminals 2-3)
2/ Use of the NC contact as off delay (terminals 2-1) - Terminals 2 - 1 are also activated without power. - When power is connected, the set time counting starts; upon expiration, the output relay activates and disconnects terminals 1-2
|
Usage: delays the load activation (for example, the fan starts after the bathroom light is turned on, the light turns on when the garage door opens, motors start after a desired event, contactors, etc.) The time counting starts when the relay is powered on, see photo gallery.
