Timer / On/Off relay with delay / One Shot relay
- Regular price
- €35,64
- Regular price
-
- Sale price
- €35,64
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty
|

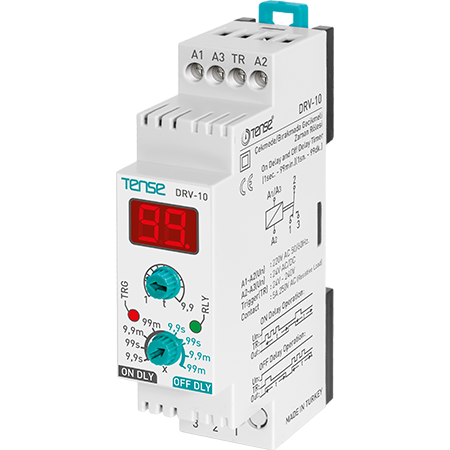

Detailed description DRV-10 digital timer relay with display, with delayed turn-on and turn-off up to 99 minutes, with control signal
The DRV-10 is a digital timer relay activated by a signal at the TR input with an adjustable turn-on or turn-off delay up to 99 minutes. or a shutdown delay adjustable up to 99 minutes, suitable for use wherever equipment control based on time is required. (see detailed description and photo gallery)
- Time range from 1 second to 99 minutes - 1x switching contact 5A/250VAC - 2x LED indicators (power, relay coil) - 230V AC/DC power supply / 4VA terminals A1-A2 - or 24VAC/DC power supply / terminals A2-A3 - DIN rail mounting - IP20 protection - dimensions 90 x 23 x 58 mm

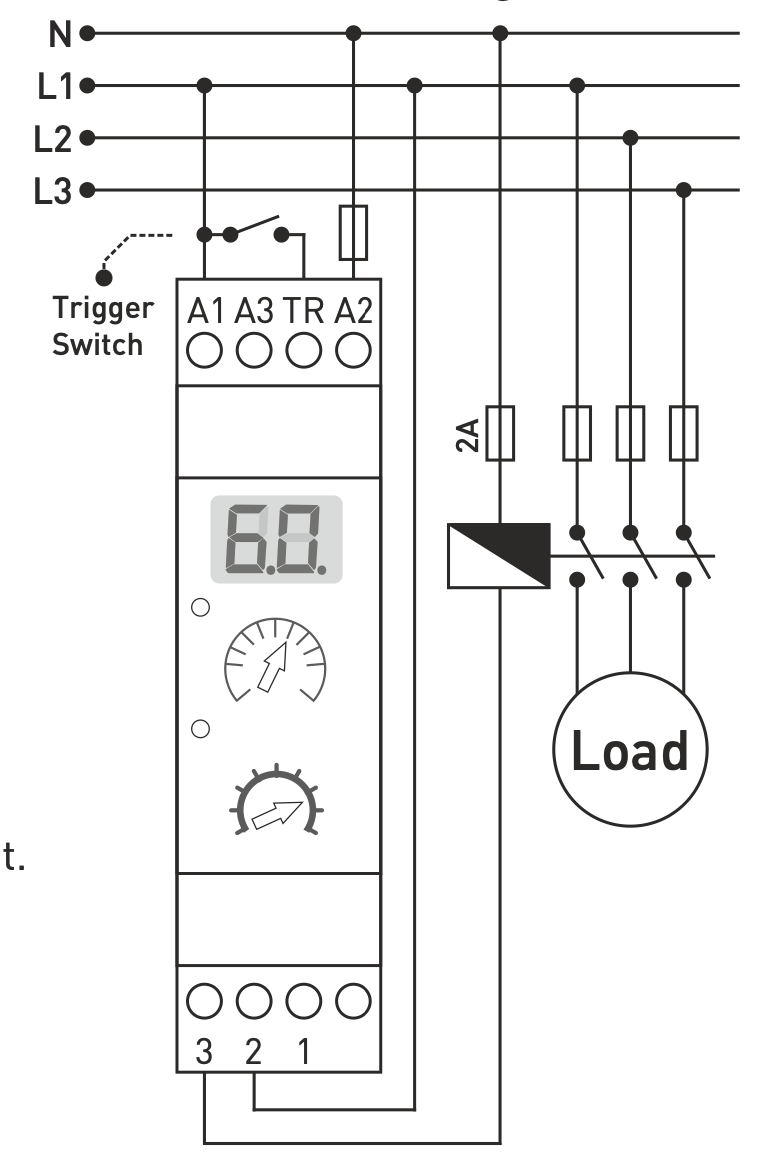

Application: Delays the activation of loads (fans, lighting, motor starting, contactors, etc.). The time count starts when the relay is activated, see photo gallery.

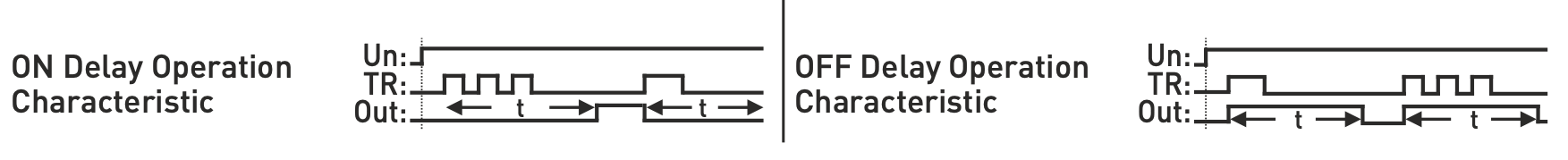

Description: ON Delay - delayed activation - Delayed activation of the relay's NO contact after the time counted from the rising edge of the control signal on the terminal (TR) has elapsed. - The display shows the countdown (value in seconds or minutes) until activation (waiting time). - the relay stays on until the next rising edge of the control signal on terminal 6 (TRG). Off delay - immediate activation of the relay's NO contact after the rising edge of the control signal on the terminal (TR) - The relay remains active for the time set via the drivers (ON state duration) |
- the display shows the countdown for the intervention (value in seconds or minutes)
